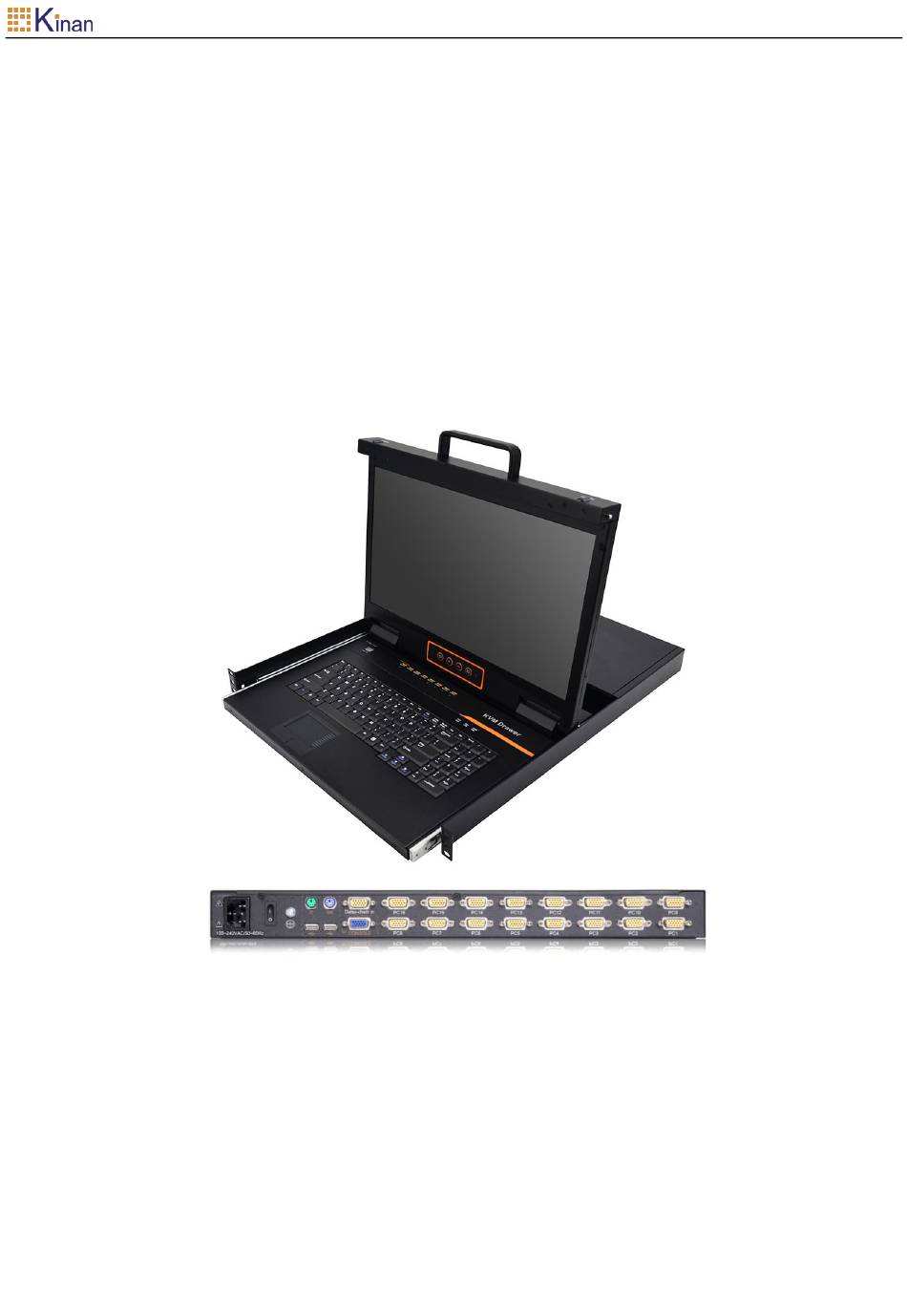

- Page 1 8 / 16 Port 18.5” VGA LCD KVM Switch （XL1808 / XL1816）...
- Page 2 www.kinankvm.com Overview The 18.5” XL Series VGA LCD KVM Switch is a control unit that allows access to multiple computers from an USB or PS/2 KVM console. An extra console port is provided on the rear panel to manage the LCD KVM switch from an external console.
- Page 3 www.kinankvm.com Structure 1 PC Port 4 Ground Connection Screw 2 Power input(AC) 5 Cascade port 3 Power switch 6 Console Port Features ⚫ 18.5” TFT LCD monitor, high brightness, high resolution ⚫ 1U height, suitable height for standard 19” rack mount, metal structure ⚫...
- Page 4 www.kinankvm.com ⚫ Auto PS/2 and USB interface detection ⚫ Two level password security – only authorized users view and control computers; up to four users and an administrator with a separate profile for each Broadcast mode – operations simultaneously performed on all selected computers ⚫...
- Page 5 Specifications Model XL1808 XL1816 Direct Computer connections Port emulation Keyboard, mouse PS/2, USB WXGA TFT LCD model 18.5” View area 1366×768@60Hz Optimum resolution 16.7 M LCD monitor Display color 250cd/m² （ T y p ） Brightness 1000 : 1 （ T y p ）...
