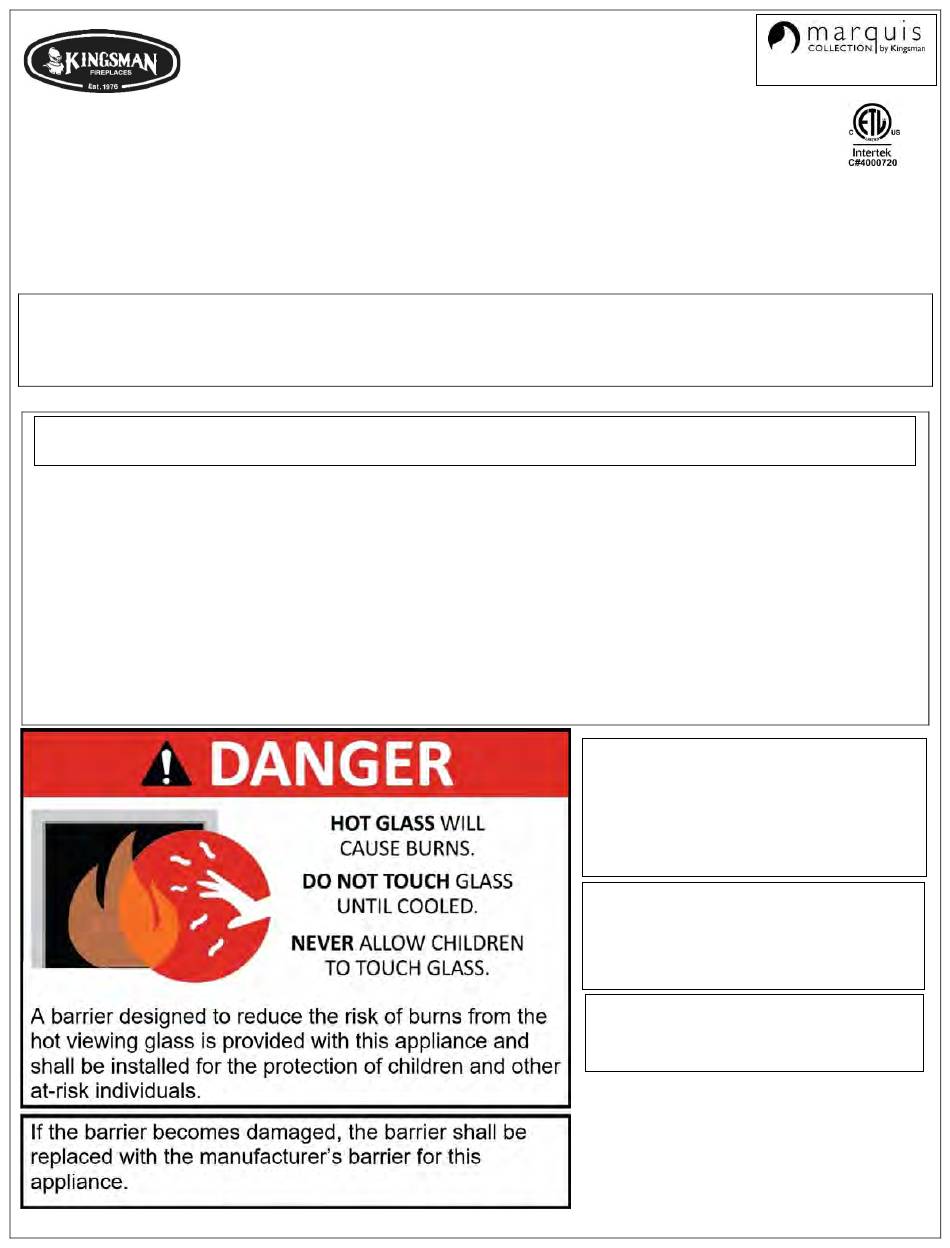

Installation Instructions
MCVP42N, MCVP42NE, MCVP42NE2, MCVP42LP, MCVP42LPE,
MCVP42LPE2
ANSI Z21.88-2017 • CSA 2.33-2017,
Vented Gas Fireplace Heaters
MCVP42NH, MCVP42NHE, MCVP42NHE2, MCVP42LPH,
MCVP42LPHE, MCVP42LPHE2
ANSI Z21.88-2017 • CSA 2.33-2017,
Vented Gas Fireplace Heaters
CSA 2.17-2017
CSA 2.17-2017
For Propane Horizontal
installations the venting must be
an additional one foot above the
minimum vertical rise off the flue
before going horizontal.
INSTALLER: Leave this manual with the
appliance.
CONSUMER: Retain this manual for
future reference.
VENTED GAS FIREPLACE HEATER:
NOT FOR USE WITH SOLID FUEL.
A Division of R-Co. Inc.
2340 Logan Ave.
Winnipeg, Manitoba Canada
R2R 2V3 Ph.: (204) 632-1962
Printed in Canada December 16, 2020
Part# 42MCVP-MAN17
