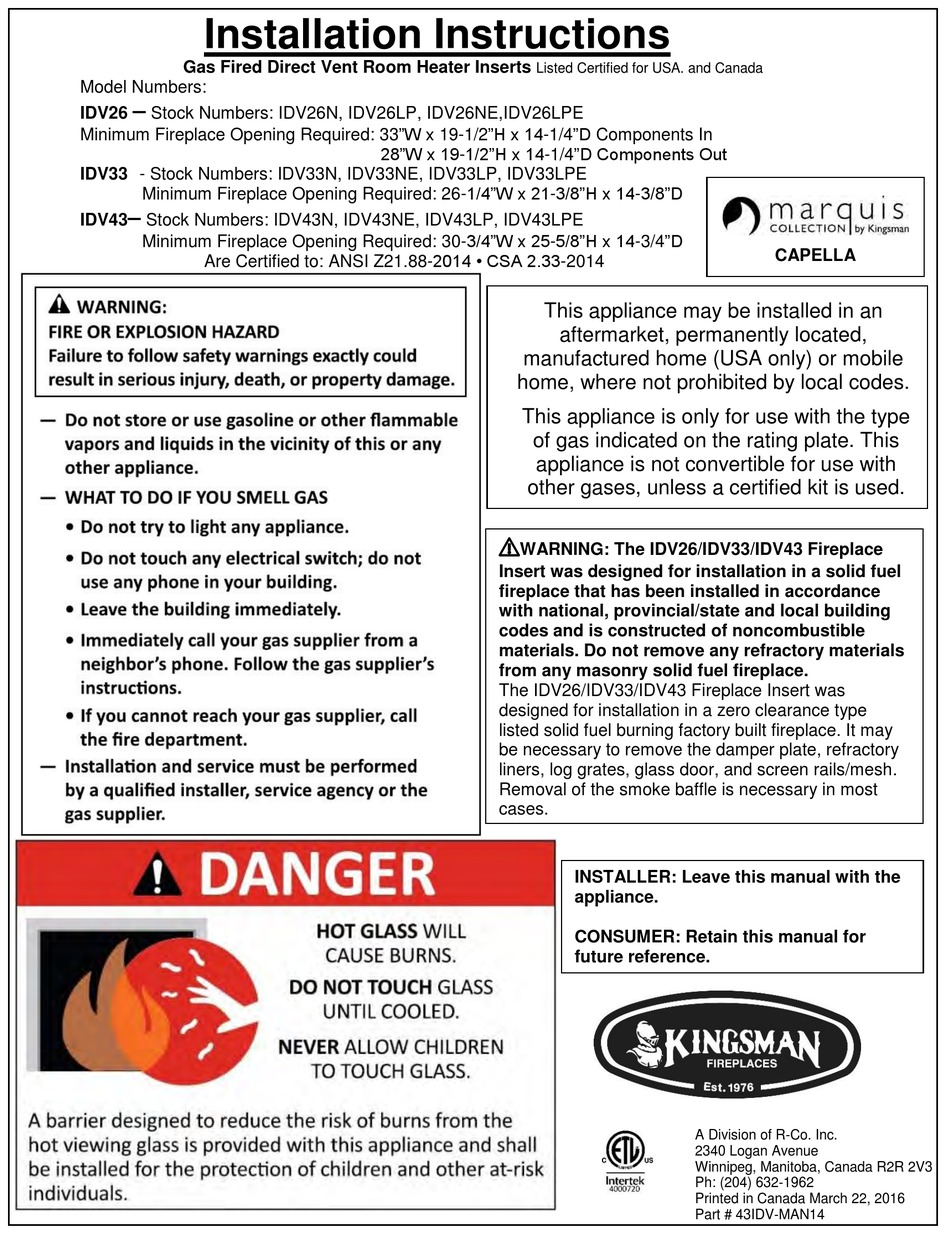

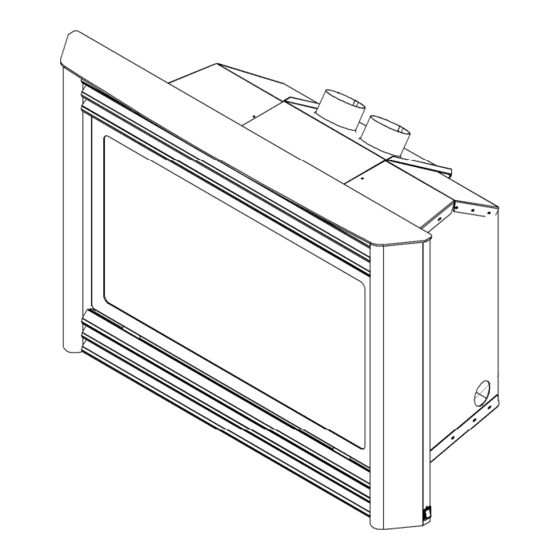

Installation Instructions

Gas Fired Direct Vent Room Heater Inserts
Model Numbers:
IDV26
Stock Numbers: IDV26N, IDV26LP, IDV26NE,IDV26LPE
Minimum Fireplace Opening Required: 33"W x 19-1/2"H x 14-1/4"D Components In
IDV33 - Stock Numbers: IDV33N, IDV33NE, IDV33LP, IDV33LPE
Minimum Fireplace Opening Required: 26-1/4"W x 21-3/8"H x 14-3/8"D
IDV43
Stock Numbers: IDV43N, IDV43NE, IDV43LP, IDV43LPE
Minimum Fireplace Opening Required: 30-3/4"W x 25-5/8"H x 14-3/4"D
Are Certified to: ANSI Z21.88-2014 • CSA 2.33-2014
Listed Certified for USA. and Canada
28"W x 19-1/2"H x 14-1/4"D Components Out
This appliance may be installed in an
aftermarket, permanently located,
manufactured home (USA only) or mobile
home, where not prohibited by local codes.
This appliance is only for use with the type
of gas indicated on the rating plate. This
appliance is not convertible for use with
other gases, unless a certified kit is used.
WARNING: The IDV26/IDV33/IDV43 Fireplace
Insert was designed for installation in a solid fuel
fireplace that has been installed in accordance
with national, provincial/state and local building
codes and is constructed of noncombustible
materials. Do not remove any refractory materials
from any masonry solid fuel fireplace.
The IDV26/IDV33/IDV43 Fireplace Insert was
designed for installation in a zero clearance type
listed solid fuel burning factory built fireplace. It may
be necessary to remove the damper plate, refractory
liners, log grates, glass door, and screen rails/mesh.
Removal of the smoke baffle is necessary in most
cases.
INSTALLER: Leave this manual with the
appliance.
CONSUMER: Retain this manual for
future reference.
A Division of R-Co. Inc.
2340 Logan Avenue
Winnipeg, Manitoba, Canada R2R 2V3
Ph: (204) 632-1962
Printed in Canada March 22, 2016
Part # 43IDV-MAN14
