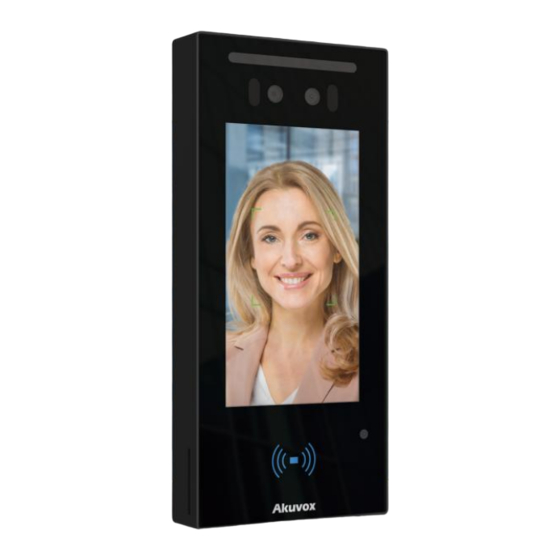

Akuvox A05 Series Administrator's Manual

Access control terminal
Hide thumbs Also See for A05 Series:
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A05 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Akuvox A05 Series

Summary of Contents for Akuvox A05 Series

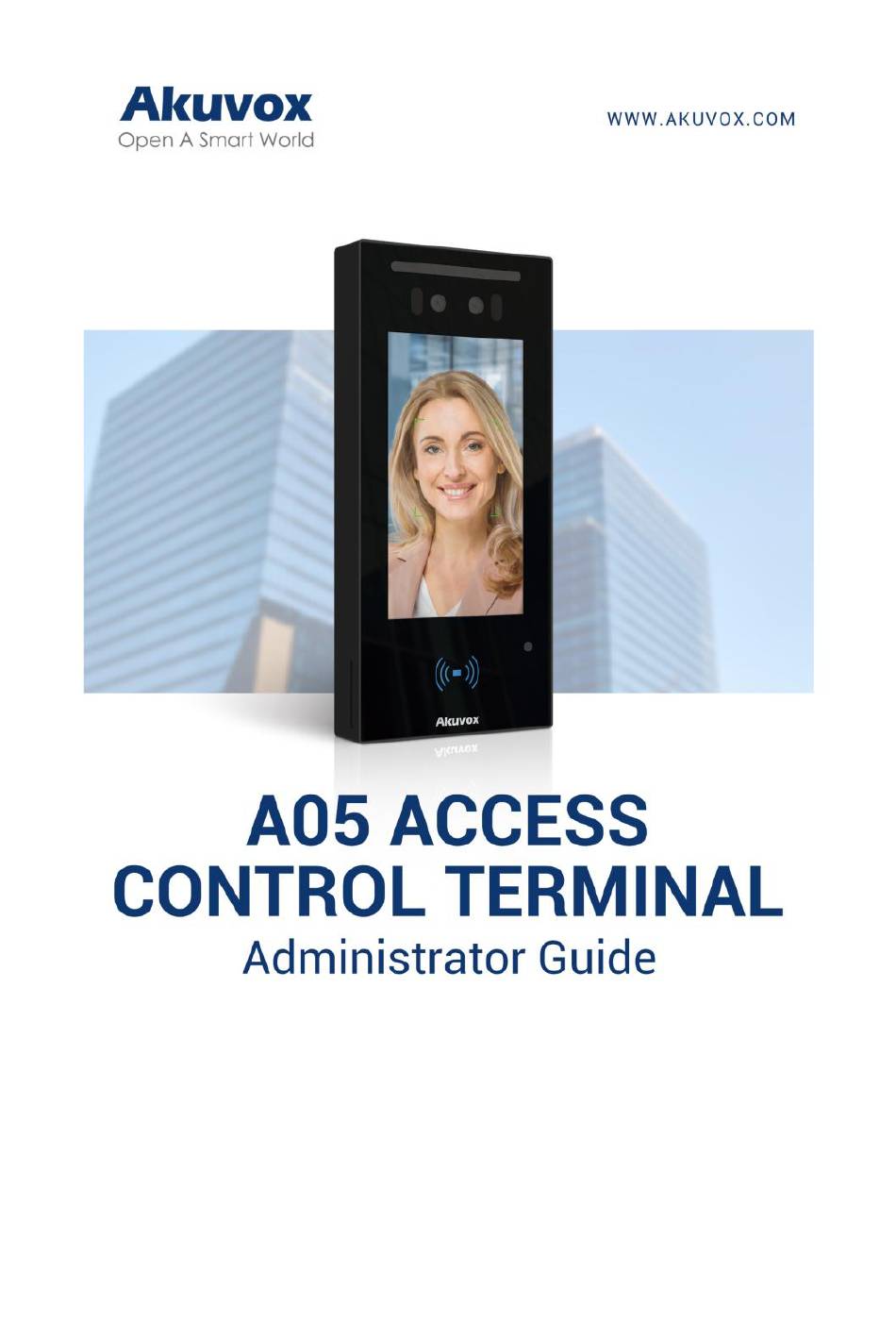

  • Page 2 This manual applies to 105.30.4.8 version, and it provides all the configurations for the functions and features of A05 series access control terminals. Please visit Akuvox forum or consult technical support for any new information or the latest firmware.
  • Page 3 A05 Series Access Control Terminal Admin Guide Introduction of Icons and Symbols Note:  Informative information and advice from the efficient use of the device. AKUVOX SMART INTERCOM www.akuvox.com...
  • Page 4 A05 Series Access Control Terminal Admin Guide Related Documentation You are advised to refer to the related documents for more technical information via the link below: https://knowledge.akuvox.com AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 5: Table Of Contents

    A05 Series Access Control Terminal Admin Guide Contents 1. Product Overview ..................1 2. Change Log ....................2 3. Model Specification ..................3 4. Introduction to Configuration Menu ............. 6 5. Access the Device ..................7 6. Time and Language Setting ................8 6.1.
  • Page 6 A05 Series Access Control Terminal Admin Guide 12.10. Body Temperature Measurement for Door Access (Optional) ....27 13. Security ....................29 13.1. Tamper Alarm Setting ................. 29 13.2. Security Notification Setting ............... 30 13.3. Action URL ....................32 14. Monitor and Image ...................33 14.1.

  • Page 7: Product Overview

    A05 Series Access Control Terminal Admin Guide 1. Product Overview Akuvox A05 series is a Linux-based access control door phone with a display screen. It incorporates access control and video surveillance. Its finely tuned SmartPlus AI-based communication technology allow featured customization to better suit your operation habit.

  • Page 8: Change Log

    A05 Series Access Control Terminal Admin Guide 2. Change Log The change log will be updated here along with the changes in the new software version. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 9: Model Specification

    A05 Series Access Control Terminal Admin Guide 3. Model Specification Model A05S & Feature Display 5" IPS Touch Screen Button Housing Material Plastic Relay Out Alarm In RS485 √ √ Resolution 1280x720 Brightness 500cd/m2 Card Reader 13.56MHz Wi-Fi Bluetooth Optional...
  • Page 10 A05 Series Access Control Terminal Admin Guide Flush Mounting Desk Mounting POE Stand by Power 5.5W POE Full Load 9.8W Consumption Power Adapter Standby 5.5W Power Power Adapter Full Load Consumption Color Option Black AKUVOX SMART INTERCOM www.akuvox.com...
  • Page 11 A05 Series Access Control Terminal Admin Guide AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 12: Introduction To Configuration Menu

    2. Akuvox Upgrade tool: mainly used to reset the device password. 3. IP scanner: it is used to search Akuvox device IP addresses on a LAN. 4. FacePro: manage face data in batch for the access control terminal on a LAN.

  • Page 13: Access The Device

    Before configuring Akuvox A05, please make sure the device is installed correctly and connect to a normal network. Using Akuvox IP scanner tool to search the device IP address in the same LAN. Then use the IP address to log in to the web browser by user name and password admin and admin.

  • Page 14: Time And Language Setting

    A05 Series Access Control Terminal Admin Guide 6. Time and Language Setting 6.1. Language Setting To select the device language, go to Setting > Time/Lang > LCD Language. 6.2. Time Setting Time setting on the web Setting > Time/Lang > NTP interface allows you to set up time and date manually while allowing you to use the NTP server address that you obtained to automatically synchronize your time and date.

  • Page 15: Led Setting

    A05 Series Access Control Terminal Admin Guide Parameter Set-up:  Automatic Date&Time Enabled: enable the use of the NTP server for automatic time synchronization.  Time Zone: select the specific time zone based on the device location. The default time zone is GMT+0:00.

  • Page 16: Configure Led White Light Setting

    A05 Series Access Control Terminal Admin Guide 7.2. Configure LED White Light Setting LED White light is used to reinforce the lighting for facial recognition as well as for QR code door opening in the dark environment. To configure it, go to Device >...

  • Page 17: Screen Display Configuration

    A05 Series Access Control Terminal Admin Guide 8. Screen Display configuration A05 series access control terminals allow you to enjoy a variety of screen displays to enrich your visual and operational experience through the customized setting to your preference. 8.1. Configure Screensaver A05 can turn on screen saver for a predefined time profile when there is no operation on the device, or no one is detected approaching.

  • Page 18: Configure Access Screen Display Mode

    A05 Series Access Control Terminal Admin Guide Note:  The pictures uploaded should be in JPG format with 2M pixels maximum. The previous pictures with a specific ID order will be overwritten  when the repetitive designation of pictures to the same ID order occurred.

  • Page 19: Volume & Tone Configuration

    A05 Series Access Control Terminal Admin Guide 9. Volume & Tone Configuration 9.1. Configure Volume You can set the temper alarm volume and prompt alarm volume. Go to Device > Audio > Volume Control. Parameter Set-up:  Tamper Alarm Volume: set the tamper alarm volume from 1-15 according to your need.

  • Page 20: Network Setting

    A05 Series Access Control Terminal Admin Guide 10. Network Setting 10.1.Configure Device Network You can configure the default DHCP mode (Dynamic Host Configuration Protocol) and static IP connection. Moreover, you can set up IP address, Subnet Mask, Default Gateway, LAN DNS1 & LAN DNS2. To configure the configuration on web Network >...

  • Page 21: Configure Device Deployment In Network

    Parameter Set-up:  Server Mode: it is automatically set up according to the actual device connection with a specific server in the network such as SDMC or Akuvox SmartPlus and None. None is the default factory setting indicating the device is not in any server type, therefore you are allowed to choose Cloud, SMDC in discovery mode.

  • Page 22: Web Relay Setting

    A05 Series Access Control Terminal Admin Guide Parameter Set-up:  Trigger Delay (Sec): set the relay trigger delay timing (ranging from 1-10 Sec.) For example, if you set the delay time as 5 sec. then the relay will not be triggered until 5 seconds after you press unlock tab.
  • Page 23 A05 Series Access Control Terminal Admin Guide you can achieve door access via web relay. To configure the configuration on web Access Control > Web Relay interface. Parameter Set-up:  Type: select among three options Disabled, WebRelay and Both. Select WebRelay to enable the web relay.

  • Page 24: Relay Schedule

    A05 Series Access Control Terminal Admin Guide 10.5.Relay Schedule Set the corresponding relay always open at a specific time. This feature is designed for some specific scenarios, such as, the time after school, or for morning work time. To do the configuration, navigate to Access Control >...

  • Page 25: Door Access Schedule Management

    A05 Series Access Control Terminal Admin Guide 11. Door Access Schedule Management You are required to configure and make schedule for the user-based door opening using RF card and facial recognition. 11.1. Configure Door Access Schedule You can create door access schedules so that they can be later conveniently applied to the door access control intended for individual user or a group of users created.
  • Page 26 A05 Series Access Control Terminal Admin Guide To create a longer period schedule: 11.1.2. Import and Export Door Access Schedule In addition to creating door access schedules separately, you can also conveniently import or export the schedules in order to maximize your door access schedule management efficiency.
  • Page 27 A05 Series Access Control Terminal Admin Guide 11.1.3. Edit the Door Access Schedule If you want to edit or delete the door access schedule you created, you can edit or delete the configured schedule separately or in batch on the web Setting>Schedule.

  • Page 28: Door Unlock Configuration

    A05 Series Access Control Terminal Admin Guide 12. Door Unlock Configuration A05 series access control terminal offers you three types of door access via QR code, RF card, and Facial recognition. You can configure them on web interface. Moreover, you can import or export the configured files to maximize your RF card configuration efficiency.

  • Page 29: Unlock By Nfc

    A05 Series Access Control Terminal Admin Guide Parameter Set-up:  IC Card Display Mode: select the card format for the ID Card for the door access among five format options: 8HN,8H10D,6H3D5D,6H8D,8HN,8HR,8HD. The card code format is 8HN by default in the access control terminal.

  • Page 30: Configure Door Access Using Configured Files

     12.4. Configure Door Access Using Configured Files A05 series access control terminals allow you to speedily configure user(s)- specific door access in batch by importing the configured all-in-one door access control files incorporating user information, door access type, door access schedule, etc., thus all the door access setting can be done at one stop,...

  • Page 31: Unlock By Qr Code

    12.7.Unlock by Bluetooth You can also gain door access by mobile phone with Bluetooth which is used together with Akuvox SmartPlus. You can shake the mobile phone closer to the access control terminal for door access. To configure the configuration on web Access Control >...

  • Page 32: Unlock By Http Command On Web Browser

    A05 Series Access Control Terminal Admin Guide 12.8.Unlock by HTTP Command on Web Browser You can unlock the door remotely without approaching the device physically for door access by typing in the created HTTP command (URL) on the web browser to trigger the relay when you are not available by the door for door access.

  • Page 33: Body Temperature Measurement For Door Access (Optional)

    12.10. Body Temperature Measurement for Door Access (Optional) A05 series provides you with an optional body temperature measurement function designed to be applied in the situation where the measurement becomes necessary for the safety of the residents and visitors etc. Residents and visitors are required to go through temperature measurements along with an optional mask detection check before they are allowed door access.
  • Page 34 A05 Series Access Control Terminal Admin Guide Parameter Set-up:  Mode: select either Disabled Mode or Wrist Mode for temperature measurement according to your need. The device can be installed with a digital forehead temperature detector therefore you are required to set the mode properly according to your application.

  • Page 35: Security

    A05 Series Access Control Terminal Admin Guide 13. Security 13.1.Tamper Alarm Setting Tamper alarm function serves as a protection against any unauthorized removal of the devices by triggering off the temper alarm on the device. To configure the configuration on web System > Security >...

  • Page 36: Security Notification Setting

    A05 Series Access Control Terminal Admin Guide 13.2.Security Notification Setting 13.2.1. Email Notification Setting If you want to receive the security notification via email, you can configure the Email notification on the web interface properly. To configure the configuration on web Setting > Action > Email Notification interface.
  • Page 37 A05 Series Access Control Terminal Admin Guide  Email subject: enter the subject of the email.  Email content: compile the email contents according to your need.  Email Test: click to test if the email can be sent and received.

  • Page 38: Action Url

    You can navigate to Setting > Actions URL. Note:  Action URL and format are provided by third party manufacturer, Akuvox door phone only sends the URL to third party devices. Akuvox Action URL: Event...

  • Page 39: Monitor And Image

    “http://192.168.1.104:8080/picture.jpg” on the web browser. 14.2.Live Stream If you want to check the real-time video from the A05 series access control terminal, you can go to the device web interface to obtain the real-time video or you can also enter the correct URL on the web browser to obtain it directly.

  • Page 40: Rtsp Stream Monitoring

    14.3.RTSP Stream Monitoring A05 series access control terminal support RTSP stream that allows intercom devices such as indoor monitor or the monitoring unit from the third party to monitor or obtain the real time audio/ video (RTSP stream) from the access control terminal using the correct URL.
  • Page 41 A05 Series Access Control Terminal Admin Guide 14.3.1. RTSP Basic Setting You are required to set up the RTSP function in terms of RTSP authorization, authentication, and password, etc., before you are able to use the function. To configure it, go to Surveillance > RTSP > RTSP Basic interface.
  • Page 42 Default if you only want to select the specific area on the video to be displayed. You can click Edit to start video cropping. Note: A05 series supports two video stream channels for H.264 codec video  stream. AKUVOX SMART INTERCOM...

  • Page 43: Onvif

    A05 Series Access Control Terminal Admin Guide 14.4.ONVIF Real-time video from the A05 series access control terminal camera can be searched and obtained by the Akuvox indoor monitor or by third-party devices such as NVR (Network Video Recorder) you can configure the ONVIF function in the access control terminal so that other devices will be able to see the video from the access control terminal.
  • Page 44 A05 Series Access Control Terminal Admin Guide AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 45: Logs

    A05 Series Access Control Terminal Admin Guide 15. Logs 15.1.Door Logs If you want to search and check on door access history, you can search and check the door logs on the device web Status > Access Log interface. Parameter Set-up: ...

  • Page 46: Temperature Log

    A05 Series Access Control Terminal Admin Guide 15.2.Temperature Log To check the temperature log on web Access Control > Temperature Log interface.  Save Temperature Enabled: tick the check box to turn on or turn off the temperature Log.  Save Picture Enabled: enable it if you want to save the temperature measuring snapshot.

  • Page 47: Debug

    16.2.PCAP for Debugging PCAP in A05 series access control terminal is used to capture the data package going in and out of the devices for debugging and troubleshooting purpose. You can set up the PCAP on the device web System > maintenance>...
  • Page 48 A05 Series Access Control Terminal Admin Guide Parameter Set-up:  Specific Port: select the specific ports from 1-65535 so that only the data packet from the specific port can be captured. You can leave the field blank by default.  PCAP: click Start tab and Stop tab to capture a certain range of data packets before clicking Export tab to export the data packets to your Local PC.

  • Page 49: Firmware Upgrade

    A05 Series Access Control Terminal Admin Guide 17. Firmware Upgrade Firmware of different versions for A05 series access control terminal can be upgraded on the device web System > Upgrade > Basic interface. Note: Firmware files should be .rom format for the upgrade.

  • Page 50: Backup

    A05 Series Access Control Terminal Admin Guide 18. Backup Configuration files can be imported to or exported out of the device to your local PC on the device web Upgrade > Maintenance > Others interface if needed. Parameter Set-up:  Facial Debug Enabled: enable it for facial recognition debugging.

  • Page 51: Auto-Provisioning Via Configuration File

    Auto-provisioning is a feature used to configure or upgrade devices in batch via third party servers. DHCP, PNP, TFTP, FTP, and HTTPS are the protocols used by the Akuvox intercom devices to access the URL of the address of the third-party server which stores configuration files and firmware, which will then be used to update the firmware and the corresponding parameters on the access control terminal.

  • Page 52: Configuration Files For Auto-Provisioning

    MAC-based configuration files. 19.3.AutoP Schedule Akuvox provides you with different Autop methods that enable the access control terminal to perform provisioning for itself at a specific time according to your schedule. To configure the configuration on web System > Auto Provisioning >...

  • Page 53: Dhcp Provisioning Configuration

    A05 Series Access Control Terminal Admin Guide Parameter Set-up:  Power On: select Power on if you want the device to perform Autop every time it boots up.  Repeatedly: select Repeatedly if you want the device to perform autop according to the schedule you set up.
  • Page 54 A05 Series Access Control Terminal Admin Guide Note: The custom Option type must be a string. The value is the URL of  TFTP server. Parameter Set-up:  Custom Option: enter the DHCP code that matched with the corresponding URL so that the device will find the configuration file server for the configuration or upgrading.

  • Page 55: Static Provisioning Configuration

    A05 Series Access Control Terminal Admin Guide Note: The general configuration file for the in-batch provisioning is with  the format “r0000000000xx.cfg", taking A05 as an example, “r000000000105.cfg” (10 zeros in total). While the MAC-based configuration file for the specific device provisioning is with the...
  • Page 56 A05 Series Access Control Terminal Admin Guide Parameter Set-up:  URL: set up TFTP, HTTP, HTTPS, and FTP server address for the provisioning.  User Name: set up a user name if the server needs a user name to be accessed otherwise leave it blank.

  • Page 57: Integration With Third Party Device

    20. Integration with Third Party Device 20.1.Integration via Wiegand If you want to integrate the A05 series access control terminal with the third- party devices via Wiegand, you can configure the Wiegand on the web Device > Wiegand > Wiegand interface.

  • Page 58: Integration Via Http Api

    20.2.Integration via HTTP API HTTP API is designed to achieve a network-based integration between the third party device with the Akuvox intercom device. You can configure the HTTP API function on the web Setting > HTTP API interface for the integration.

  • Page 59: Lift Control

    A05 Series Access Control Terminal Admin Guide 20.3.Lift Control You can connect A05 with AKuvox EC32 lift controller and third-party lift controllers for the lift control. You can summon the lift to go down to the ground floor when you are granted various types of access methods on the do o r ph o n e .

  • Page 60: Password Modification

    A05 Series Access Control Terminal Admin Guide 21. Password Modification 21.1.Modify the Password To change the default web password, navigate to System > Upgrade > Web Password Modify. Select admin for the administrator account and User for the User Account. Click the Change Password tab to change the password. You can also disable User account permission to log in to the web.

  • Page 61: System Reboot And Reset

    A05 Series Access Control Terminal Admin Guide 22. System Reboot and Reset 22.1.Reboot If you want to restart the device, you can operate it on the device web System > Upgrade > Basic interface as well. Moreover, you can set up a schedule for the device to be restarted.
  • Page 62 A05 Series Access Control Terminal Admin Guide AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 63: Abbreviations

    A05 Series Access Control Terminal Admin Guide 23. Abbreviations ACS: Auto Configuration Server Auto: Automatically AEC: Configurable Acoustic and Line Echo Cancelers ACD: Automatic Call Distribution Autop: Automatic Provisioning AES: Advanced Encryption Standard BLF: Busy Lamp Field COM: Common CPE: Customer Premise Equipment...
  • Page 64 A05 Series Access Control Terminal Admin Guide PCAP: Packet Capture PNP: Plug and Play RFID: Radio Frequency Identification RTP: Real-time Transport Protocol RTSP: Real Time Streaming Protocol MPEG: Moving Picture Experts Group MWI: Message Waiting Indicator NO: Normal Opened NC: Normal Connected...

  • Page 65: Faq

    Using Akuvox IP Scanner to search Akuvox devices in the same LAN network. Q2: Do Akuvox devices support opus codec? A2: For now, only Akuvox Android video IP phone R48G can support Opus audio codec. Q3: What is the supported temperature range for the Akuvox door phone? A3: R20/E21/R26/R23/Standard R27/Standard X915 –...
  • Page 66 A05 Series Access Control Terminal Admin Guide Q7: Do door phones support these card types? Prox, Legacy iClass, iClassSE, HID Mifare, HID DESFire, HID SEOS. A7: Sorry, they are not supported. They need to be implemented via hardware modifications. Q8: How to confirm whether my device is hardware version 1 or hardware version 2? A8: 1.Label...
  • Page 67 A05 Series Access Control Terminal Admin Guide  Hardware version The firmware is different between hardware version1 and hardware version 2. Go to Web-Status -Firmware Version. If the hardware version is 220.x, then the device is hardware version 2. AKUVOX SMART INTERCOM...

  • Page 68: Contact Us

    A05 Series Access Control Terminal Admin Guide 25. Contact Us For more information about the product, please visit us at www.akuvox.com feel free to contact us by Sales email: sales@akuvox.com Technical support email: support@akuvox.com Telephone: +86-592-2133061 ext.7694/8162 We highly appreciate your feedback about our products.
