Sure Immersion
220
®

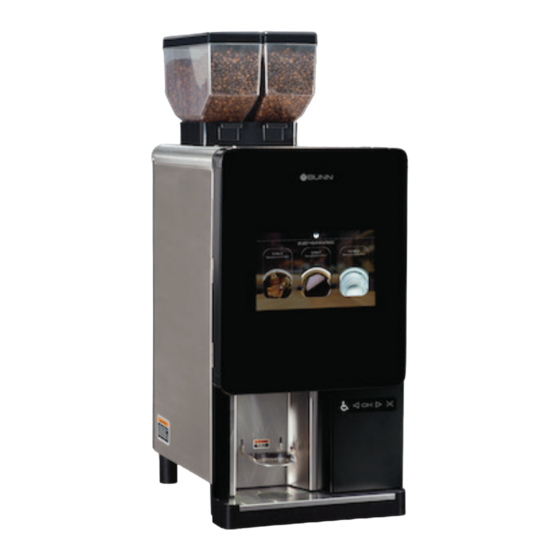

Bean to Cup Coffee System
INSTALLATION & OPERATING GUIDE
For Technical Service, contact Bunn-O-Matic Corporation at 1-800-286-6070.
Bunn-O-Matic Corporation
Post Office Box 3227, Springfield, Illinois 62708-3227
Phone (217) 529-6601 | Fax (217) 529-6644
www.bunn.com
53058.7000 H 4/21 © 2016 Bunn-O-Matic Corporation

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Sure Immersion 220 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Bunn Sure Immersion 220

Summary of Contents for Bunn Sure Immersion 220

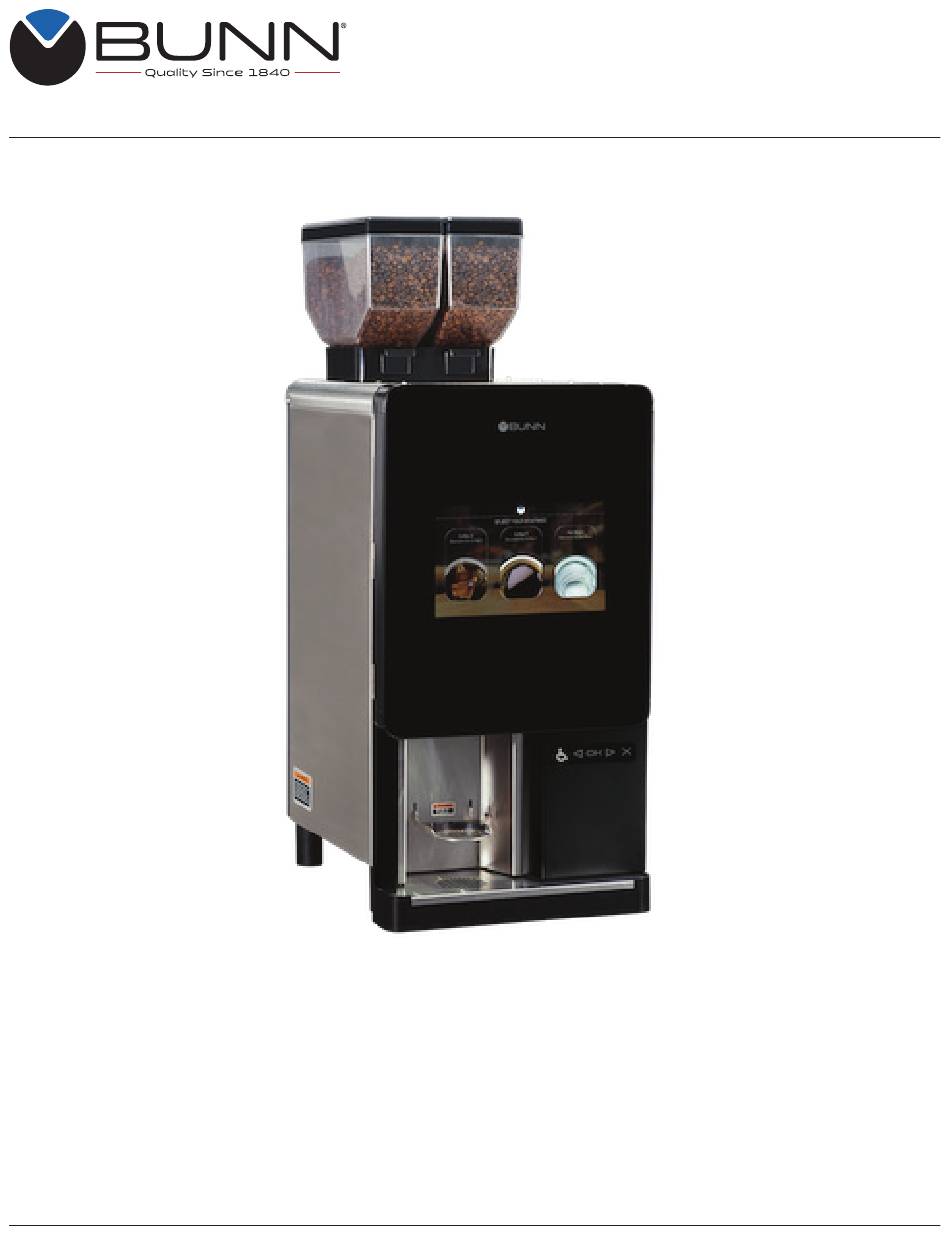

  • Page 1 Sure Immersion ® Bean to Cup Coffee System INSTALLATION & OPERATING GUIDE For Technical Service, contact Bunn-O-Matic Corporation at 1-800-286-6070. Bunn-O-Matic Corporation Post Office Box 3227, Springfield, Illinois 62708-3227 Phone (217) 529-6601 | Fax (217) 529-6644 www.bunn.com 53058.7000 H 4/21 © 2016 Bunn-O-Matic Corporation...

  • Page 2: Warranty

    SOLE OPTION AS SPECIFIED HEREIN, TO REPAIR, REPLACEMENT OR REFUND. In no event shall BUNN be liable for any other damage or loss, including, but not limited to, lost profits, lost sales, loss of use of equipment, claims of Buyer’s customers, cost of capital, cost of down time, cost of substitute equipment, facilities...

  • Page 3: Table Of Contents

    00656.0001 Do not deform plug or cord. FAILURE TO COMPLY RISKS EQUIPMENT 37881.0000 DAMAGE, FIRE OR SHOCK HAZARD. WARNING READ THE ENTIRE OPERATING MANUAL BEFORE H O T USING THIS PRODUCT LIQUID 00986.0000M 10/14 ©1994 Bunn-O-Matic Corporation 00824.0002 35710.0000 00986.0000...

  • Page 4: North America And Ce Requirements

    NORTH AMERICAN REQUIREMENTS • This appliance must be installed in locations where it can be overseen by trained personnel. • For proper operation, this appliance must be installed where the temperature is between 41°F to 95°F (5°C to 35°C). • Appliance shall not be tilted more than 10° for safe operation. •...

  • Page 5: Plumbing

    25 feet from the 1⁄2" water supply line. A tight coil of copper tubing in the water line will facilitate moving the brewer to clean the counter top. Bunn-O-Matic does not recommend the use of a saddle valve to install the brewer. The size and shape of the hole made in the supply line by this type of device may restrict water flow.

  • Page 6: Electrical Hookup

    ELECTRICAL HOOKUP FOR INDOOR USE ONLY Site Requirements 1. Counter able to support at least 200 pounds (90kg). Counter area large enough for machine. 3. Minimum clearance of 2˝ around machine. 4. Machine must be level within 2˚ for proper operation. WARNING The brewer must be disconnected from the power source until specified in Initial Setup.

  • Page 7: Initial Setup

    INITIAL SET-UP 1. Unpack the Drip Tray assembly and slide it in between the front legs. 2. Remove taped Keys from above Drip Tray and use them to unlock the front door. 3. Remove the bean hoppers from the packaging, and note the differences;...
  • Page 8 INITIAL SETUP 5. Push the hopper locking lever towards the back. Left Right This locks the hopper in place and allows beans to flow downward to the grinder. 6. Repeat Steps 3 and 4 for Right Hopper. Lock Lever 7. The hoppers are ready to be filled with beans. 8.

  • Page 9: Filter Paper Installation

    FILTER PAPER INSTALLATION After Initial Setup and once the initialization sequence is complete, the Filter Paper must be loaded. 1. Open the door to access the brewing system. 2. On the lower right, turn the Paper Roller handle to the vertical position, then pull forward to remove the paper take up roller.
  • Page 10 FILTER PAPER INSTALLATION 4. With the handle in the vertical position, slide the Filter Paper through the guide. 5. Next, pull the Filter Paper through the slot in the Paper Roller. 6. Push the Paper Roller in until it engages the roller drive.
  • Page 11 FILTER PAPER INSTALLATION 8. Close the door, then press and hold the BUNN logo for 3 seconds until SERVICE ACCESS appears on the display. 9. In the lower left corner of the SERVICE ACCESS screen, press and hold the Advance Paper button.

  • Page 12: Activation

    BUNNlink LTE ACTIVATION ► BUNNlink Models Only or Purchase Required. If you experience any issues with Activation, contact a ® BUNNlink administrator: bunnlink@bunnlink.com. 1. Scan the QR Code located on the machine. NOTE: If this is a kit install; scan the QR Code sticker located in the package or on the back of the BUNNlink board itself.
  • Page 13 (Google, Safari, Mozilla). 5. Enter 192.168.1.1 in the web address bar 6. On the BUNN login page enter the username BunnService. Then, enter Bunn123! in the password text field and press the log in button 7.

  • Page 14: Operating Interface

    BUNNlink PRODUCT REGISTRATION Scan to register your machine on BUNNlink ® customer care alerts, reports and further support. Please provide this QR code to the customer or manager of the site. OPERATING INTERFACE NOTE: The machine comes pre-loaded with four (4) recipes; two (2) hot beverage, and two (2) cold beverage. 1.
  • Page 15 OPERATING INTERFACE 4. The next screen shown after "Grinding" is "Immersing" where brew water is added to the ground beans. 5. The next screen after "Immersing", is the "Brewing" screen. The the ground beans and brew water is allowed to sit permitting the flavors to bloom.

  • Page 16: Ada Operating Interface

    ADA OPERATING INTERFACE 1. To activate the ADA screen interface, the user must press the accessibility symbol (wheelchair icon). This will cause the screens to be modified with a blue banner at the top and a blue highlight around the items being selected. The left/right arrows will move the blue highlight from one selection to the next.
  • Page 17 ADA OPERATING INTERFACE 5. During operation, the following screens will appear in this order: Grinding, Immersing, Brewing, Dispensing. The user can press the "STOP" during this process to cancel this recipe selection. 6. The Stop/Reset is automatically highlighted. The user can cancel and reset by pressing "OK"...

  • Page 18: Virtualtouch Operation

    QR code app) BUNN VirtualTOUCH requires a QR code scanner to access the application to dispense a drink. Depending on what brand tablet or smartphone you carry, it may require you to download a QR code app before using VirtualTOUCH.
  • Page 19 VirtualTOUCH OPERATION 4. Select Size. Press NEXT. 5. Place your Cup in position. For iced beverage, place cup with ice in position. Press OK. 6. Enter the 4-digit code as it is shown on the display of the machine and press DISPENSE. NOTE: This is to confirm that you are standing in front of the machine and ready to take the drink.

  • Page 20: Optional Cashless Payment System

    OPTIONAL CASHLESS PAYMENT SYSTEM 1. Place cup under dispense nozzle. Select cup size. 2. Swipe credit/debit card to start process. 3. Press the “CHECKOUT” button to lock in size selection. 4. Press the “START” button to dispense.

  • Page 21: Barcode Printer Setup

    BARCODE PRINTER SETUP NOTE: Printer hook up to the machine requires a db-9 cable. 1. If the machine is printer capable, and a printer has been connected, the machine must be set up to enable printing. 2. Navigate to the MACHINE SETTINGS screen, and touch the BARCODE PRINTER tab on the left.
  • Page 22 BARCODE PRINTER SETUP ► Automatically Generate Barcode ID’s (continued) b. Use the keypad to enter the barcode ID number for the first barcode you require. c. Hit ENTER d. The ID fields will be automatically populated with barcodes, starting with the ID number you entered.
  • Page 23 BARCODE PRINTER SETUP 2. Press Yes to clear all barcode ID's, or No to exit the menu. Setting Beverage Prices 1. To set the price for a size, press the Price box for the size to be set. 2. Use the keypad to set the price, then press Enter.
  • Page 24 BARCODE PRINTER SETUP Setting Beverage Prices (continued) 5. Verify that the correct price is shown for each size selection. Set Print Fields 1. Fields to be printed can be selected by pressing the Set Print Field button in the upper right. 2.
  • Page 25 BARCODE PRINTER SETUP 2. Insert a USB stick into the USB port on the back side of the front door. 3. Press OK. 4. The main screen will return. 5. Remove USB stick. 6. Close door. Print Settings 1. Printer setting can be sent to the printer by pressing the Print Settings button.

  • Page 26: Filter Paper Removal

    The used paper must be removed. 1. To remove the used paper, press and hold the BUNN logo icon at the top of the screen for 3 seconds to access the SERVICE ACCESS screen.
  • Page 27 FILTER PAPER REMOVAL 4. Turn the handle for the paper take-up roller to the vertical position. 5. Pull the handle away from the machine to remove. 5. Remove the used paper roll from the machine, or push it into the grounds bin. Refer to "Filter Paper Installation"...

  • Page 28: Daily

    Wipe the lower front panel, door, and cabinet with a clean damp cloth. SERVICE ACCESS 1. Press and hold the BUNN logo at the top of the screen for 3 seconds to access the SERVICE ACCESS screen. 2. From the SERVICE ACCESS screen, press the Care and Cleaning button.

  • Page 29: Weekly

    CARE AND CLEANING DAILY Rinse Tab 1. From the CARE AND CLEANING screen, select the Rinse tab to prepare the equipment for rinsing the Brew Funnel and Brew Box. 2. Press the Start button. Follow the directions shown on the screen. 3.
  • Page 30 CARE AND CLEANING WEEKLY Clean Tab (continued) 4. Once the Start button has been pressed, a message saying "Please do NOT open door until prompted" will be displayed. 5. Press Continue button. NOTE: Once a cleaning process has started, the user can not exit without completing the cleaning or performing a Stop/Reset.
  • Page 31 CARE AND CLEANING 9. Following the steps to add a Cleaning Tablet. a. Open door. b. Insert Cleaning Tablet into Funnel. c. Close door. 10. Press Continue button. 11. The operator will be shown a progress bar with the message "Please Wait... Cleaning". When finished, the screen will return to the original startup screen.
  • Page 32 CARE AND CLEANING WEEKLY Brew Funnel - Removal and Washing The Brew Funnel can be removed for a more thorough cleaning. This is recommended weekly or more often if required (heavy usage of the machine). 1. Open front door to remove Brew Funnel. NOTE: Brew Funnel must be in the upper position to be removed.
  • Page 33 CARE AND CLEANING 4. Clean the funnel using any mild, non-abrasive, liquid detergent. Do Not use abrasives to clean as this can damage the surface of the funnel. Rinse and Dry. 5. To reinstall the funnel, tip the top edge of the funnel under the Coffee Chute.

  • Page 34: Active Notices

    ACTIVE NOTICES 1. Press and hold the BUNN logo at the top of the screen for 3 seconds to access the SERVICE ACCESS screen. 2. From the SERVICE ACCESS screen, press the Active Notices button. NOTE: Pressing the BUNN icon will return the user to the main screen.
