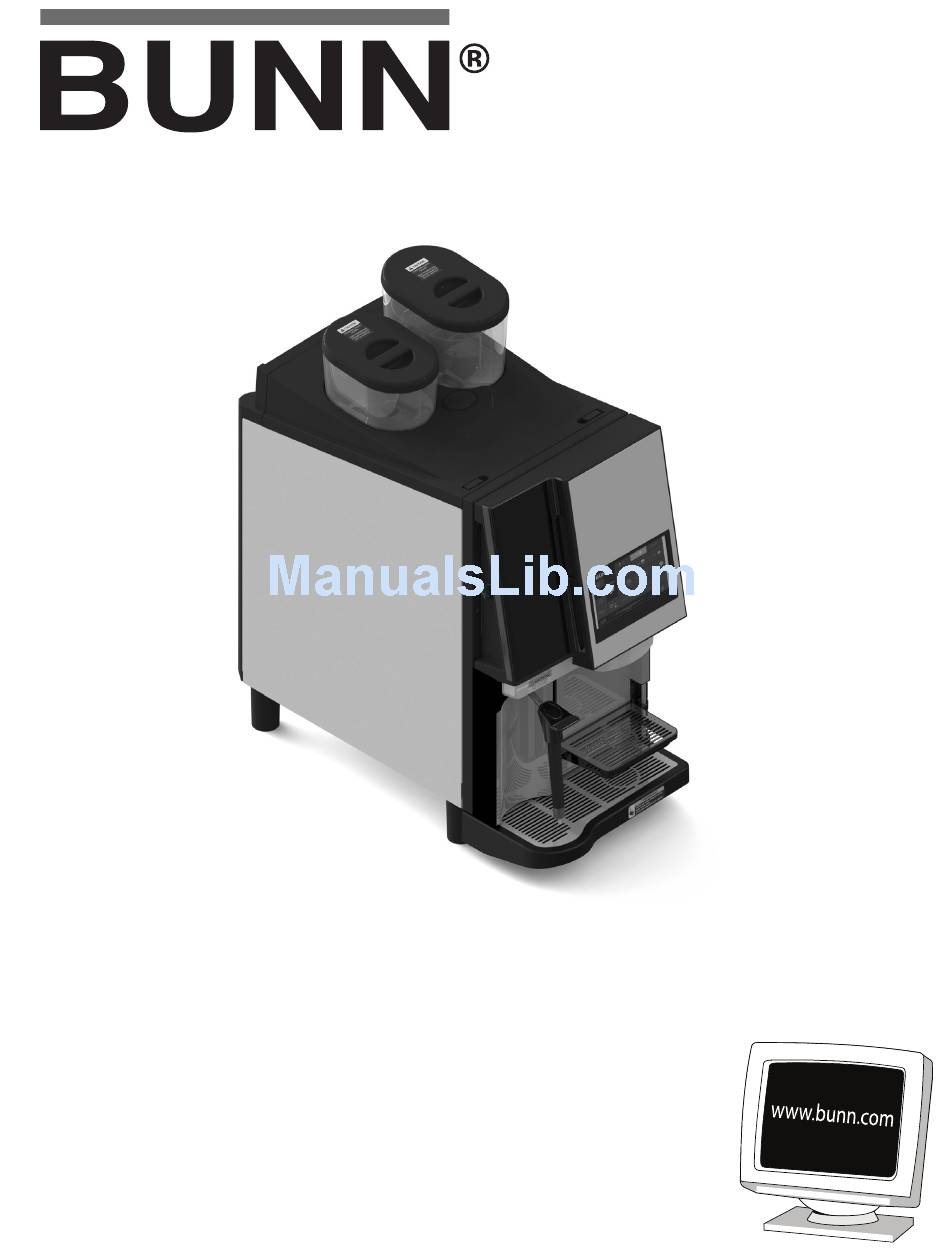

- Page 1 SURE TAMP STEAM INSTALLATION & OPERATING GUIDE BUNN-O-MATIC CORPORATION POST OFFICE BOX 3227 SPRINGFIELD, ILLINOIS 62708-3227 PHONE: (217) 529-6601 FAX: (217) 529-6644 http://www.bunn.com/espresso/index.html 45921.0000B 04/14 ©2013 Bunn-O-Matic Corporation...
- Page 2 This warranty is conditioned on the Buyer 1) giving BUNN prompt notice of any claim to be made under this warranty by telephone at (217) 529-6601 or by writing to Post Offi ce Box 3227, Springfi eld, Illinois 62708-3227; 2) if requested by BUNN, shipping the defective equipment prepaid to an authorized BUNN service location;...
-
Page 3: Table Of Contents
CONTENTS Site Requirements....................4 Installation......................5 Operating Controls....................6 Operation......................7 Cleaning.......................8 Menu Options......................9 Troubleshooting....................11 USER NOTICES To reduce the risk of electric shock, do not remove or open cover. #47075.0000 No user-serviceable parts inside. Authorized service personnel only. Disconnect power before servicing. MAIN ON/OFF SWITCH #37881.0000 BEHIND THIS PANEL #47074.0000... -
Page 4: Site Requirements
SITE REQUIREMENTS Site Requirements 1. Counter able to support at least 150 pounds (68kg). 2. Counter area able to support machine placement. 3. Minimum clearance of 2˝ around machine. Electrical 1. 208VAC, 2 wires with ground. 2. Dedicated 30A circuit with proper breaker and receptacle. 3. -
Page 5: Installation
INSTALLATION Drain Install 1. Install drip tray bracket with 3 screws (included in bag). 1. Attach the short drain hose to the drip tray fi tting. 2. Slide drip tray onto guide rails on front of machine. 3. Attach other end of drain hose to manifold as shown. 4. -
Page 6: Operating Controls
OPERATING CONTROLS 1. Bean hopper: 2. Touch screen display: 3. Dispense nozzles: 4. Small cup shelf: 5. Puck bin: 6. Drip tray: 7. Steam Wand: 8. Key Lock: Start up 1. Pull puck bin out, turn the main switch on, replace puck bin. -
Page 7: Operation
OPERATION DRINK TYPES 1. espresso: x1=single shot; x2=double shot. 2. americano regular; americano large. BREWING 1. Select "cup preheat" to dispense hot water into cup before running a brew cycle. 2. Select between left or right bean hopper from the tabs on the top of touchscreen. 3. -
Page 8: Cleaning
RINSING/CLEANING RINSING NOTE 1: – Press the "care & cleaning" tab to access. Press RINSE. Runs for approx. 2 seconds. NOTE 2: – The milk system has an automatic rinse feature, 5 minutes of idle time after a dispense. And then 2 hours later if still idle. -
Page 9: Menu Options
MENU OPTIONS Press and hold "BUNN" logo to enter "menu options" regional settings Set date and time cup count View/reset usage of various beverages View/reset usage of water, grinders, machine statistics brew and cleaning cycles (resettable) View/reset preventive maintenance and reminders water fi... - Page 10 MENU OPTIONS date ( mm/dd/yyyy ) date and time time ( hh/mm/AM ) 1. Press to highlight box. 2. Press arrows to adjust. 3. Press "save" when fi nished. save left right cup count espresso x1 espresso x1 ristretto 1. Press left or right (hopper) large americano reset...
-
Page 11: Troubleshooting
TROUBLESHOOTING Notices Description “cleaning interrupted”, Redo cleaning cycle to remove this error “cleaning due now - shut down”, Machine will not dispense until cleaning is completed “steam wand temperature error”, Intellisteam will not function due to sensor error, manual steaming can still be performed “check right hopper”, Right hopper is out of beans.
