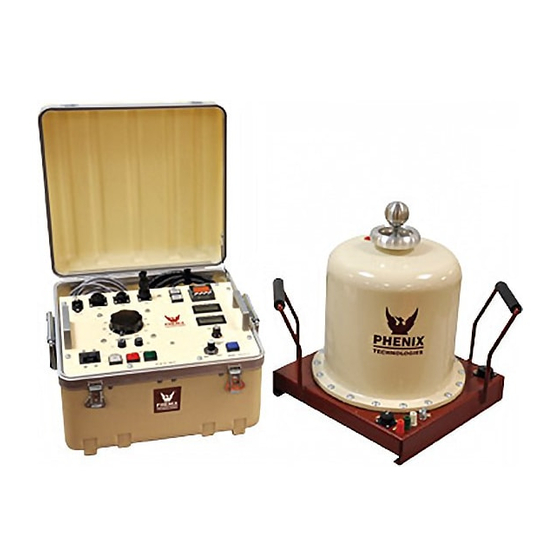

- Page 1 USER’S MANUAL AC DIELECTRIC TEST SET 600P SERIES Model Number 6CP30/15-3 Version 3.0 PHENIX TECHNOLOGIES, INC 75 Speicher Drive Accident, MD 21520 Copyright © Phenix Technologies, Inc. Rev 12/11/2017 jsh 6CP30/15-3...
-
Page 2: Table Of Contents
DANGER / GENERAL SAFETY PRECAUTIONS TECHNICAL SPECIFICATIONS CONTROLS AND INDICATORS ELECTRICAL SET-UP OPERATING INSTRUCTIONS CALIBRATION TROUBLESHOOTING TRANSPORTING / STORAGE OF EQUIPMENT CIRCUIT DIAGRAM SYMBOLS ELECTRICAL DIAGRAMS PARTS LIST PARTS ORDERING INFORMATION RECOMMENDED SPARE PARTS RETURNED MATERIAL CUSTOMER COMMENTS/ SUGGGESTIONS ATTACHMENTS PTC-13 TIMER MANUAL 6CP30/15-3... - Page 3 DO NOT operate damaged equipment. Remove power, and do not use the equipment until safe operation can be verified by service-trained personnel. Phenix Technologies, Inc. assumes no liability for unsafe or improper use of test equipment. 6CP30/15-3...
-
Page 4: Technical Specifications
16.5" (419 mm) W x 15.25" (388 mm) D x 11.25" (286 mm) H Weight: 30 pounds (14 kg) 14” (356 mm) W x 14” (356 mm) D x 17” (429 mm) H HV Transformer: Weight: 76 pounds (34 kg) 6CP30/15-3... -
Page 5: Controls And Indicators
3. High Voltage On. Momentary switch activates power to high voltage circuits when prerequisite conditions are met. Ready lamp (4) must be illuminated before High Voltage On switch will operate. See requirements for Ready lamp under step 4. High Voltage On lamp illuminates to indicate high voltage circuits are energized. 6CP30/15-3... - Page 6 This is the metering and return connection. Do not attempt to operate high voltage unit without this cable connected at both ends. 12. TX1. Provided power interconnect cable connects here and to the same designation connector on high voltage unit. 13. Line Cord. Supplies input power to unit. 6CP30/15-3...
- Page 7 16. Start/Reset. Press to start the timer after test voltage has been reached. Press again to reset the timer to the original setting. 17. HV Off Bypass. Press to allow high voltage to remain on after timer has expired. Indicator lights when depressed. 18. Timer. Select desired test time using buttons on face of timer. See manual attachment. 6CP30/15-3...
-
Page 8: Electrical Set-Up
Be sure that the Measurement Divider switch on the control panel is set to match the high voltage connection being made. 3. Check that control circuit breaker is turned off and connect input main power cable to a suitable grounded receptacle Brief connection instructions and diagram are on following pages. 6CP30/15-3... - Page 9 Connect high potential side of test specimen to either the 15kV (side) or 30kV (top) high voltage output. Connect main power cord to appropriate receptacle. (Further instructions on test connections may be found in ANSI C37.60) 6CP30/15-3...
- Page 10 (NOTE: Ensure the Ground (“GND”) post is grounded.) CAUTION If the test specimen is not fully isolated from ground, the current meter will either not work, or will not display accurate current readings, and this mode should not be used. 6CP30/15-3...
- Page 11 ELECTRICAL SETUP Figure 3-1 6CP30/15-3...
-
Page 12: Operating Instructions
To regain high voltage, the Raise Voltage dial must be returned to zero and the Overcurrent Reset button must be pressed (lamp will extinguish). After all testing is complete, turn off the front panel circuit breaker. Remove the input power cable from the facility power input. 6CP30/15-3... -
Page 13: Calibration
Raise the output to approximately 80% of the rated output voltage. Adjust the reading on the panel meter (M2) by means of potentiometer R19 to a corresponding reading. Check linearity at several points from 20% to 100% of rated tap voltage. 6CP30/15-3... - Page 14 Repeat steps a through g as necessary until both settings are calibrated. 4. Range Overcurrent. R87 sets an overcurrent for the ranges and should be set to trip at approximately 110% of full range current on medium range setting with current trip potentiometer set at “11.” 6CP30/15-3...
-
Page 15: Troubleshooting
Check main facility input power to the test set. Check indicating lamps. (Spare lamps are available through Phenix Technologies.) Check operation of the circuit breaker (CB1). Control Power lamp should be on when the circuit breaker is ... - Page 16 6. No output voltage from high voltage section? - Defective metering circuit. - No input to voltage regulator section, possible problems with K3 contacts, variable transformer, or with CB1. - Shorted high voltage output. - Defective high voltage output transformer. - Defective TX1 cable or connector. 6CP30/15-3...
-
Page 17: Transporting / Storage Of Equipment
1. The equipment should be covered and kept in a warm, dry environment (95% maximum humidity, 5 to 50 degrees C). 2. In no case should the test unit be stored outdoors, unless previously specified in the original purchase agreement. 6CP30/15-3... -
Page 18: Circuit Diagram Symbols
(Schliesser) Normally Closed Interrupteur Normalement Schrittshalter Maintained Switch Maintenu Ferme (Oeffner) Normally Closed Interrupteur Normalement Druckschalter Momentary Switch Ferme Momentanement (Oeffner) Normally Open Interrupteur Normalement Druckschalter Momentary Switch Ouvert Momentanement (Schliesser) Current Overload Dispositif De Sur UeberstromschutzEinheit Device Intensite 6CP30/15-3... -
Page 19: Electrical Diagrams
ELECTRICAL DIAGRAMS Drawing Number Description 9602030 6CP30/15-3 ELECTRICAL SCHEMATIC (120V) 9602031 6CP30/15-3 ELECTRICAL SCHEMATIC (220V) 6CP30/15-3... - Page 20 6CP30/15-3...
-
Page 21: Parts List
10-1 SECTION 10: 6CP30/15-3 PARTS LIST ITEM DESCRIPTION PART NO. CONTROLS PCB1387 PCB1387 METER/OVERLOAD BD (6CP30/15-3) 31138711 CB1 (220V) CIRCUIT BREAKER, 10 AMP, 2-POLE 1601312 CB1 (120V) CIRCUIT BREAKER, 20 AMP, 1-POLE 1601320 CORD INPUT POWER CORD 1077140 D1-D5 1N4007 (1000VR, 1.0A) - Page 22 10-2 6CP30/15-3 PARTS LIST ITEM DESCRIPTION PART NO. CONTROLS (continued) T1 (220V) STACO 1220 VARIABLE TRANSFORMER 1890215 T1 (120V) STACO 1510 VARIABLE TRANSFORMER 1890231 T2 (220V) 50 VA CONTROL TRANSFORMER 1896016 TMR1 TIMER, OMEGA #PTC-13 1480120 RECEPTACLE, HIGH CURRENT, 3F PINS, SIZE 17...
-
Page 23: Parts Ordering Information
When your purchase order is received at our office, a representative of Phenix Technologies will contact you to confirm the current price of the part being ordered. If a part you order has been replaced with a new or improved part, an Applications Engineer will contact you concerning any change in part number. -
Page 24: Recommended Spare Parts
If the unit will be operated at an isolated site for an extended period or will be subjected to unusual stresses, a larger quantity of parts should be stocked as spares. In such a case, contact your Phenix Technologies' sales representative for a recommendation. -
Page 25: Returned Material
Reason for Return Cause of Defect If Phenix Technologies, Inc. deems return of the part appropriate; it will then issue an "Authorization for Return". If return is not deemed advisable, other inspection arrangements will be made. NOTE: Material received at this plant without the proper authorization shall be held as "Customer's Property" with no service until such time as the proper steps have been taken. -
Page 26: Customer Comments/ Sugggestions
14-1 SECTION 14: CUSTOMER COMMENTS/SUGGESTIONS Phenix Technologies made significant efforts to ensure that the materials in this Operator’s Manual are correct. If there are concerns or comments as you have used this information, Phenix Technologies appreciates any feedback. Unit Serial Number.
