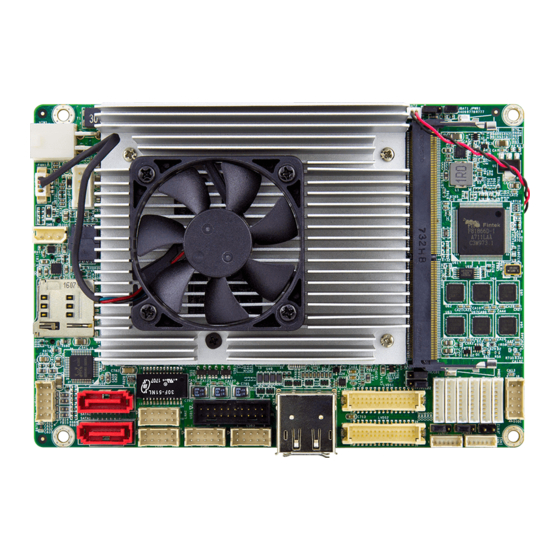

3.5" compact board
Hide thumbs Also See for EmCORE-i89M2:
Table of Contents

Advertisement

Quick Links

Download this manual
EmCORE-i89M2
85
Form Factor
3.5" Compact Board
I/O
SATA/ Mini PCIe/ USB 3.0/
USB 2.0/ COM/ NGFF
♦ Technical Support
If you have any technical difficulties, please consult the user's manual first at:
https://www.arbor-technology.com
Contact our customer service at the following addresses if your problem persists.
E-mail: info@arbor.com.tw
♦ Declaration of Conformity
FCC Class A
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions : (1) this device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
Copyright © All Rights Reserved.
CPU
Soldered onboard
6
Generation Intel
th
Core™ Processor
LAN
1 x Intel® i219LM PCIe PHY
1 x Intel® i210IT PCIe GbE
- 1 -
3.5" Compact Board
Quick Installation Guide
Video
Dual Channel 24-bit
LVDS/ HDMI/ DisplayPort
®
Audio
Realtek ALC886 HD Audio
CODEC, MIC-in/ Line-out/
Line-in
4041890200140P
Version 1.4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EmCORE-i89M2 and is the answer not in the manual?

Questions and answers

Related Manuals for Arbor Technology EmCORE-i89M2

Summary of Contents for Arbor Technology EmCORE-i89M2

  • Page 1 EmCORE-i89M2 3.5" Compact Board Quick Installation Guide Version 1.4 Form Factor Video 3.5" Compact Board Soldered onboard Dual Channel 24-bit LVDS/ HDMI/ DisplayPort ® Generation Intel Core™ Processor Audio SATA/ Mini PCIe/ USB 3.0/ Realtek ALC886 HD Audio 1 x Intel® i219LM PCIe PHY USB 2.0/ COM/ NGFF...

  • Page 2: Packing List

    Packing List Before starting with the installation, make sure the following items are shipped: 1 x EmCORE-i89M2 3.5" Compact Board with Cooler 1 x Quick Installation Guide If any of the aforelisted items is damaged or missing, contact your vendor immediately.
  • Page 3 Driver (6.6A) Installation To install the drivers, please visit our website at www.arbor-technology.com and download the driver pack from the product page. The driver path is listed as below: Windows 7 & Windows 10 64-bit Chipset \i89X\Chipset\Chipset_10.1.1.13_Public Audio \i89X\Audio\7687_PG436_Win10_Win8.1_Win8_Win7_WHQLx64 \i89X\Ethernet \i89X\Graphic\IntelR Graphics Driver Production Version Graphic 15.40.16.64.4364...

  • Page 4: Board Dimensions

    Board Dimensions 8,84 142,77 9,15 Unit:mm - 4 -...

  • Page 5: Specifications

    Specifications Form Factor 3.5" Compact Board ® Soldered onboard 6 Generation Intel Quad Core™ Processor i5- 6442EQ 1.9GHz (base)/2.7GHz (Turbo) ; i7-6822EQ 2.0GHz 2.0GHz (Base)/2.8GHz(Turbo) Chipset Intel PCH QM170 ® 1 x DDR4 SO-DIMM socket, supporting 2133/1866MHz SDRAM up to Memory 16GB BIOS...
  • Page 6 Jumpers & Connectors Quick Reference Jumpers Jumper Description ➊ Clears/keeps CMOS JBAT1 ➋ Sets the AT/ATX mode JPWR1 ➌➍ Sets the power voltage for LVDS1, 2 JVLCD1, 2 ➎➏ Sets the inverter voltage for LVDS1, 2 JINV1, 2 Connectors Connector Description ①...

  • Page 7: Jumper And Connector Locations

    Jumper & Connector Locations Board Top PWROUT1 JPWR1 JBAT1 VIN1 FAN1 SMB1 JVLCD1 JVLCD2 LVDS1 LAN1 19 20 21 22 23 24 USB1 COM2,1, 6, 5, 3, 4 Audio1 DIO1 JFRT2 LVDS2 SATA1 USB3 INV1 LAN2 INV2 SATA2 USB2 JINV2, 1 Board Bottom LPC1 LAN_LED1...
  • Page 8 Jumpers Jumpers Connectors Connectors ➊ ➀ JBAT1: Clears/keeps CMOS VIN1: 12V DC IN Connector Jumper type: 2.00 mm pitch 1x3-pin header Connector Type: 4-pin power connector Description Pin Desc. Pin Desc. Keeps CMOS (default) +12V +12V Clears CMOS ➋ JPWR1: Sets the AT/ATX mode ②...
  • Page 9 Pin Description Pin Description Pin Description Pin Description MDI0- MDI0+ 2 VDD2 1 VDD1 4 TX2_CLK+ 3 TX1_CLK+ MDI2+ MDI1+ 6 TX2_CLK- 5 TX1_CLK- MDI1- MDI2- 8 GND5 7 GND1 MDI3- MDI3+ 10 TX2_D0+ 9 TX1_D0+ 10 N/C 12 TX2_D0- 11 TX1_D0- 14 GND6 13 GND2...
  • Page 10 BUZZER: BUZZER COM1~6: Serial port connector Type: Onboard buzzer COM1-2: RS-232/422/485 selectable COM3-6: RS-232 JFRT1:Front-panel connector Connector type: 1.25mm pitch 1x9-pin wafer connector Connector type: Onboard 1.25mm pitch 1x8-pin wafer COM1-2 COM3-6 connector Pin RS-232 RS-422 RS-485 RS-232 Pin Description XDCD1# T- XDCD# 1 RSTBTN#...
