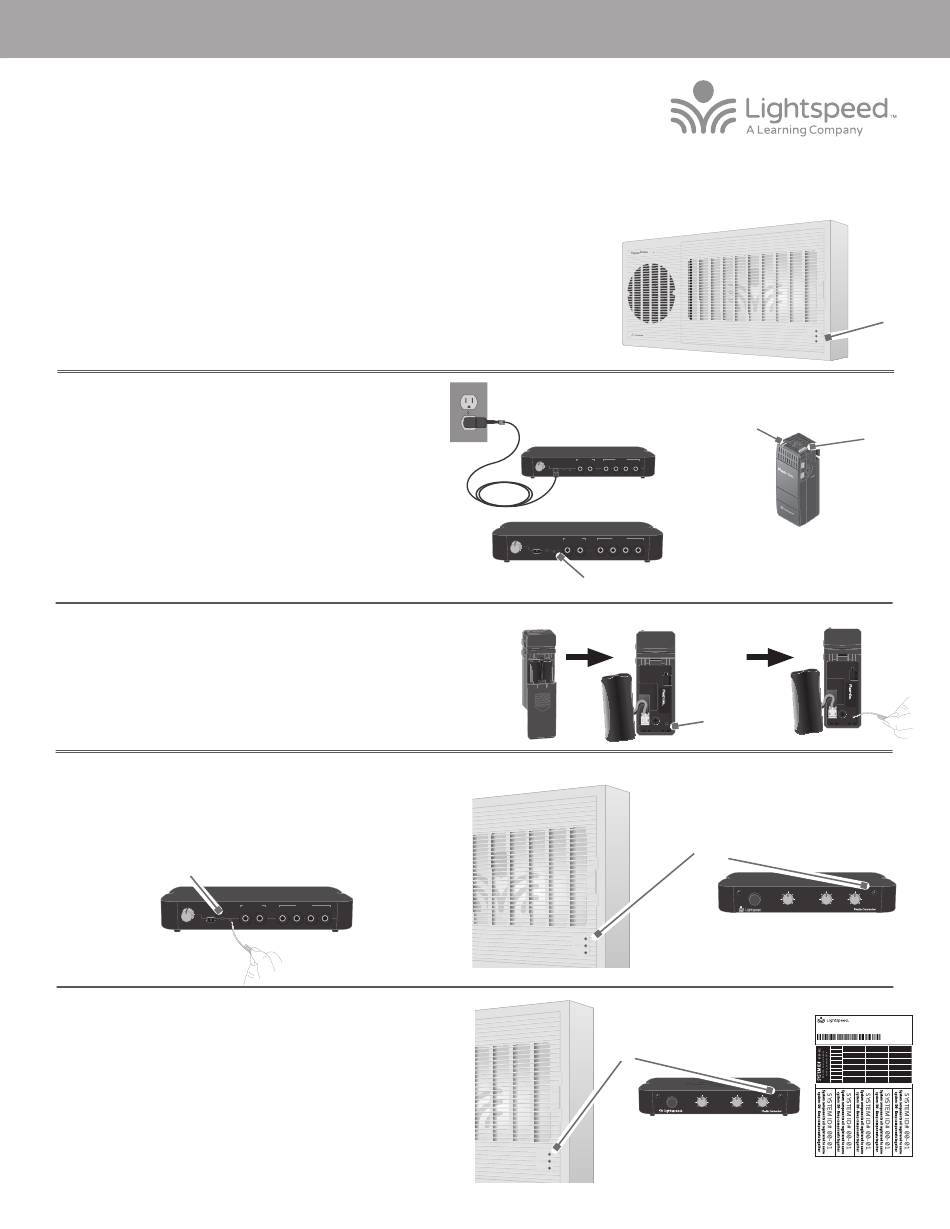

TOPCAT ACCESS REGISTRATION GUIDE
STANDARD REGISTRATION
MEDIA CONNECTOR REGISTRATION (OTHER REGISTERED COMPONENTS IN PLACE)
(particularly valuable when Topcat is mounted in the ceiling or on the wall)
For users adding a Media Connector or replacing a lost or malfunctioning Media Connector.
1. Start with the Topcat plugged in and powered on. To verify it is powered on,
there will be a blue power light on the front of the Topcat.
2. If replacing a Media Connector, make sure the malfunctioning unit is unplugged.
3. Plug in the new Media Connector. The blue power light will
turn on.
4. Locate the registration button on the back panel marked
"REGISTER"
5. Power on the existing Flexmike and wait until it has a solid
blue or red light ("Ready").
6. Use another registered functional component (existing Flexmike or
Sharemike) to trigger the registration function in Topcat.
these instructions, it is assumed that a Flexmike is the the existing registered
component.)
• Using a paperclip with the end straightened
registration button inside the registered Flexmike for 3 seconds.
• The 1 and 2 amber lights will begin blinking on the Topcat.
7. Briefly press the registration button on the Media Connector. The
REGISTER light and the #1 light on the Topcat will begin blinking.
Blinking light
TONE
USB POWER
REGISTER
TREBLE BASS
5V/1.5A
8. After several seconds, the #1 light on the Topcat will turn solid. The
LINK light on front of the Media Connector will begin blinking, then
turn solid.
9. The registration is complete. You can now plug any audio source into
the Media Connector to verify there is audio.
10. Place system ID number (attached to the Topcat Daily Use Guide) on
the new Media Connector.
NOTE: if at any point, the Topcat or Media Connector lights begin
blinking rapidly, that indicates a registration error. Unplug the new
Media Connector, then repeat steps 3 -8.
(For the purpose of
out, press and hold the
AUDIO OUT AUDIO IN
1 2 1 2 3 4
TONE AUDIO OUT AUDIO IN
1 2 1 2 3 4
USB POWER
TREBLE BASS REGISTER
5V/1.5A
TONE AUDIO OUT AUDIO IN
1 2 1 2 3 4
USB POWER
TREBLE BASS REGISTER
5V/1.5A
Registration
Button
Blinking lights
Solid lights
POWER
REGISTER
Solid light
AUDIO IN
MIN
MAX
Solid light
Power On
AUDIO
(ALD) OUT
MIN
(Existing Flexmike)
MAX
ON/OFF
DC INPUT
16V/2.0A
Registration
Button
MICROPHONE AUDIO IN AUDIO OUT LINK
POWER
MIN MAX MIN MAX MIN MAX
Registration ID Labels
Apply to system components to indicate which parts are registered
as a system. Keep registered items together when storing away.
334-0162-02-00-01
00-01 00-01 00-01
00-01
00-01 00-01
00-01
00-01 00-01 00-01
00-01
00-01 00-01
00-01
00-01
00-01 00-01
00-01
00-01
00-01 00-01
00-01
RETAIN EXTRA LABELS IN THE EVENT A COMPONENT IS REPLACED OR ADDED.
