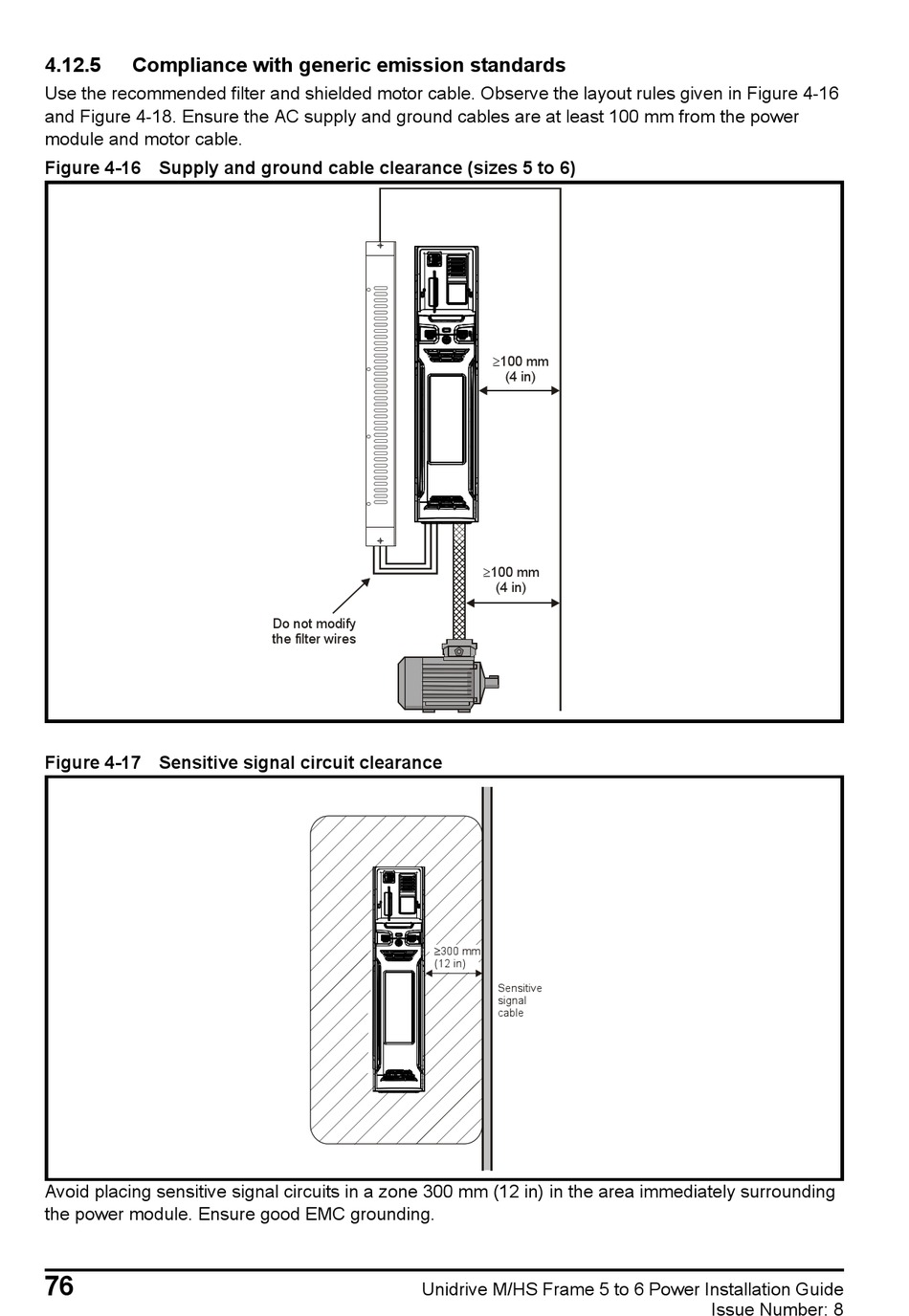

4.12.5 Compliance with generic emission standards
Use the recommended filter and shielded motor cable. Observe the layout rules given in Figure 4-16
and Figure 4-18. Ensure the AC supply and ground cables are at least 100 mm from the power
module and motor cable.
Figure 4-16 Supply and ground cable clearance (sizes 5 to 6)
Figure 4-17 Sensitive signal circuit clearance
Avoid placing sensitive signal circuits in a zone 300 mm (12 in) in the area immediately surrounding
the power module. Ensure good EMC grounding.
