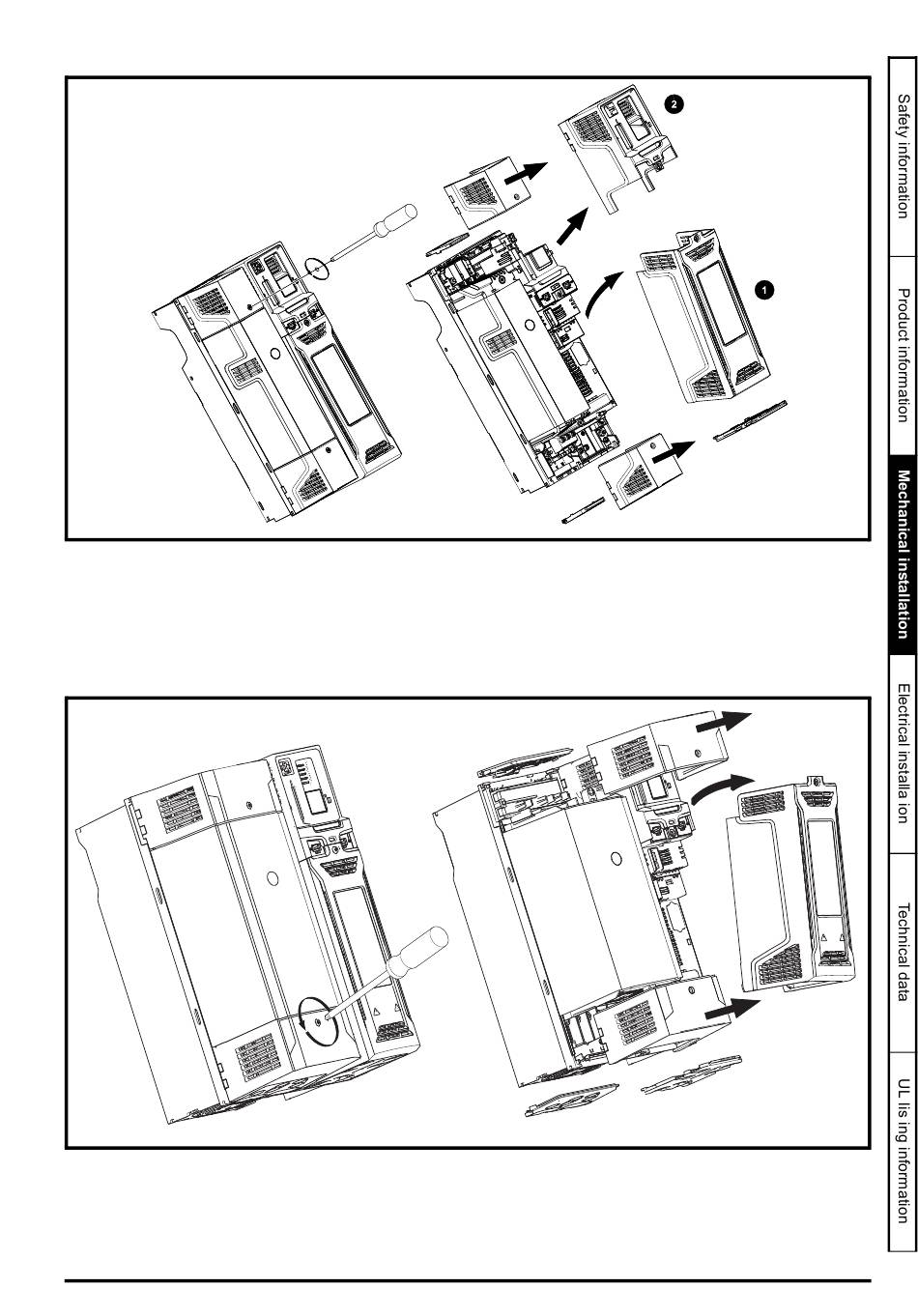

Figure 3-4 Removing the size 5 terminal covers
1. Control terminal cover
2. DC / Braking terminal cover right
The Control terminal cover must be removed before removal of the DC / Braking terminal cover right.
When replacing the terminal covers, the screws should be tightened to a maximum torque of 1 N m
(0.7 lb ft).
Figure 3-5 Removing the size 6 terminal covers
25
Unidrive M/HS Frame 5 to 6 Power Installation Guide
Issue Number: 8
