CAUTION: Power down the drive before installing / removing option modules. Failure to do so may result in damage to the product.
Refer to section Safety Information in the appropriate drive manual.

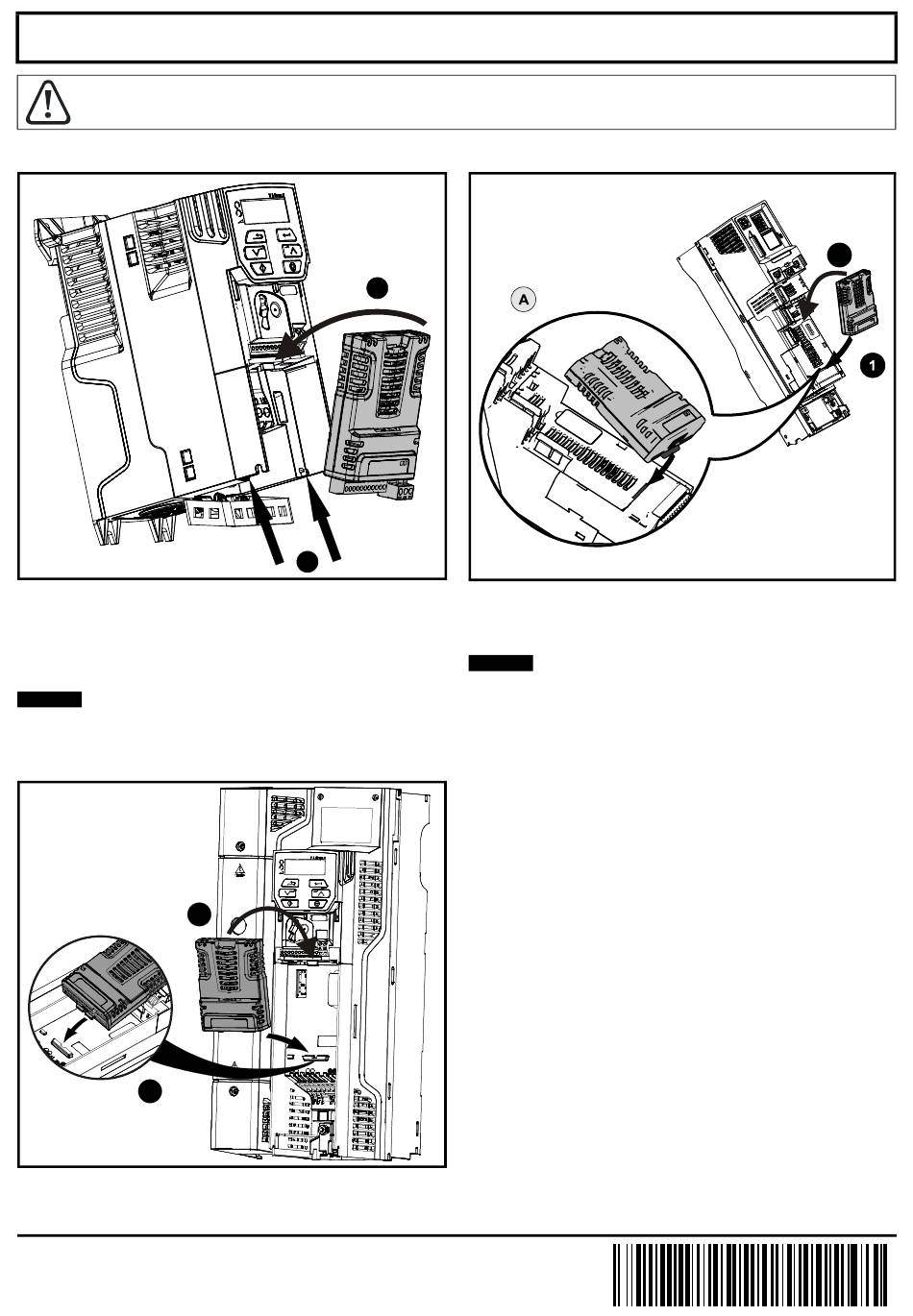

Figure 1-1 Installation of an SI option module on Commander C200/
C300 and Unidrive M200 to M400 and HS30 (sizes 2 to 4)
With the option module tilted slightly backwards, align and locate the
two holes in the rear of the option module onto the two tabs (1) on the
drive.
Place the option module onto the drive as shown in (2) until the
module clicks into place. The terminal cover on the drive holds the
option module in place, so this must be put back on.
NOTE
Option modules can only be installed on drives that have the option
module slot functionality.
Figure 1-2 Installation of an SI option module on Commander C200/
C300 and Unidrive M200 to M400 (sizes 5 to 9)
1
Place the option module onto the drive as shown in (2) until the
module clicks into place. The terminal cover on the drive holds the
option module in place, so this must be put back on.
Option Module Installation: Fieldbus
1
2
Figure 1-3 Installation of an SI option module on Unidrive M600 to
M702, F300, H300 and HS70/71/72
2
Move the option module in direction shown (1/2).
Align and insert the option module tab in to the slot provided, this is
highlighted in the detailed view (A).
Press down on the option module until it clicks into place.
NOTE
Option module slots must be used in the following order: Slot 3 (lower),
Slot 2 (middle) and then Slot 1(upper).
2
0478-0014-10
