2.5.1 Items supplied with the drive
The drive is supplied with a copy of the Power Installation Guide and a copy of the Control Getting
Started Guide, a safety information booklet, the Certificate of Quality and an accessory kit box
including the items shown in Table 2-6.

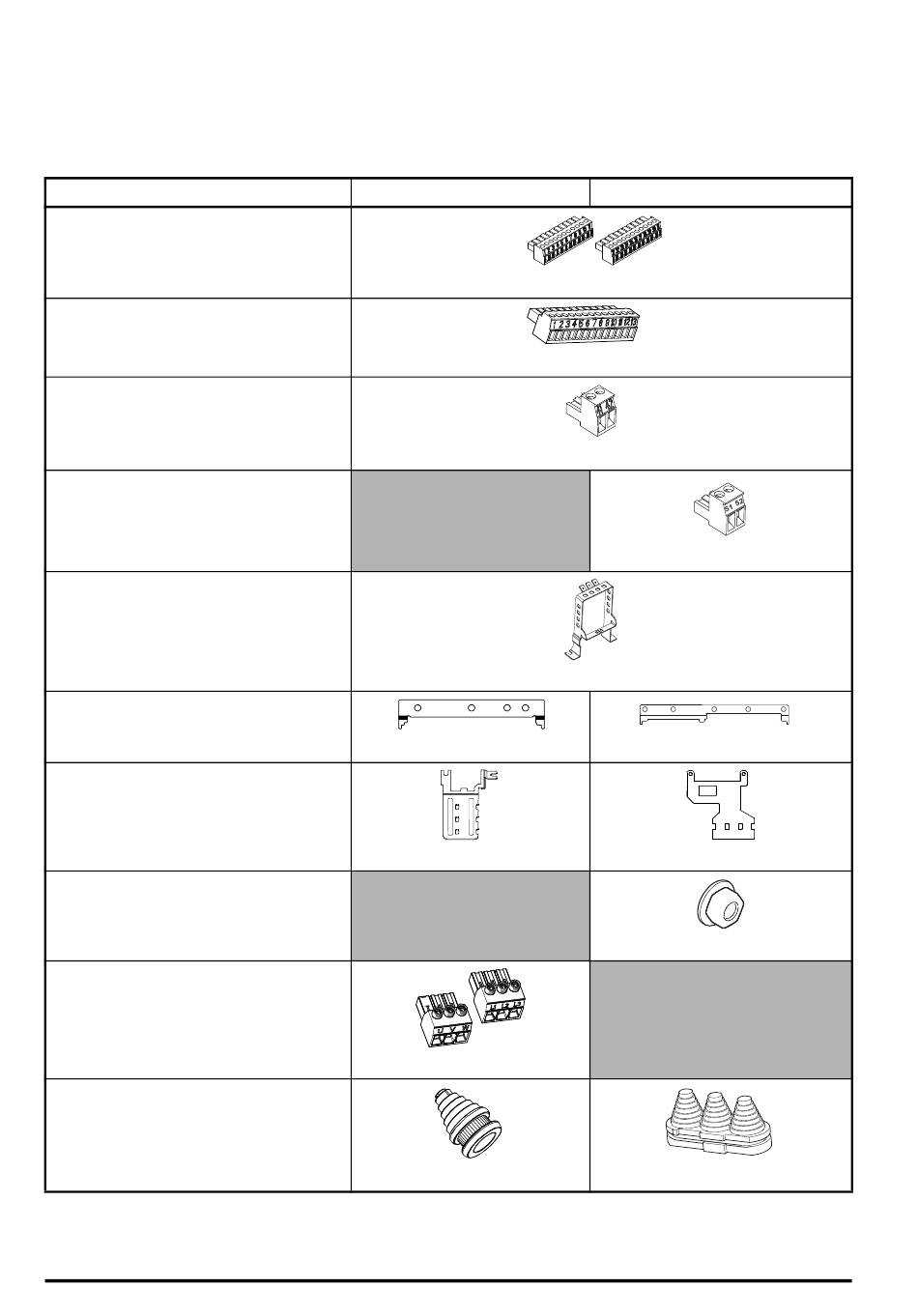

Table 2-6 Parts supplied with the drive
Description
Control connectors (1 to 11 and 21 to 31)
Control connectors (1 to 13)
Relay connector
24 V power supply connector
Grounding bracket
Surface mounting brackets
Grounding clamp
Terminal nuts
Supply and motor connector
Finger guard grommets
* Supplied with Unidrive M700 / M701 / M600 only.
** Supplied with Unidrive M702 only.
20
Size 5
x 1*
x 1**
x 1
x 1
x 2
x 1
x 1 x 1
x 3
