Nidec Control Techniques Ltd
The Gro
Newtown
Powys
SY16 3BE
UK
This declaration is issued under the sole responsibility of the manufacturer. The object of the declaration is in
conformity with the relevant European Union harmonization legislation. The declaration applies to he variable
speed drive products shown below:
Model
Interpretation
number
aaaa Basic series
bb Frame size
c Voltage rating
ddddd Current rating
e Drive format
The model number may be followed by other characters that do not affect the ratings.
The variable speed drive products listed above have been designed and manufactured in accordance with he
following European harmonized standards:
EN 61800-5-1:2007
EN 61800-3: 2004+A1:2012
EN 61000-6-2:2005
EN 61000-6-4: 2007+A1:2011
EN 61000-3-2:2014
EN 61000-3-3:2013
EN 61000-3-2:2014 Applicable where input current < 16 A. No limits apply for professional equipment where input
power 1 kW.
These products comply with the Restriction of Hazardous Substances Direc ive (2011/65/EU), the Low Voltage
Direc ive (2014/35/EU) and the Electromagnetic Compatibility Directive (2014/30/EU).
These electronic drive products are intended to be used with appropriate motors, controllers, electrical
protection components and other equipment to form complete end products or systems. Compliance with
safety and EMC regulations depends upon installing and configuring drives correctly, including using the
specified input filters.
The drives must be installed only by professional installers who are familiar with requirements for safety
and EMC. Refer to the Product Documentation. An EMC data sheet is available giving detailed information.
The assembler is responsible for ensuring that the end product or system complies with all the relevant
laws in the country where it is to be used.
Unidrive M/HS Frame 5 to 6 Power Installation Guide
Issue Number: 8

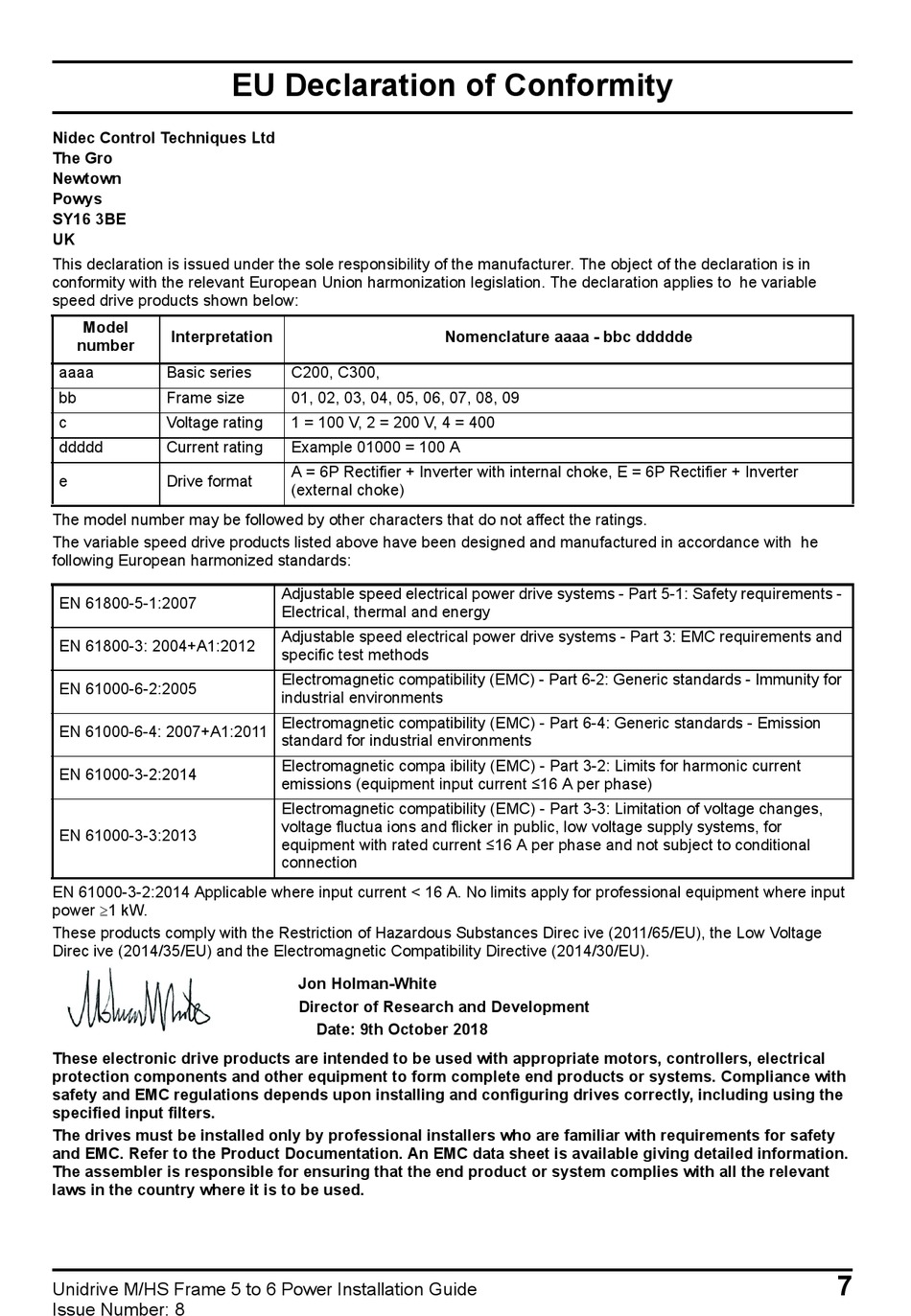

EU Declaration of Conformity
C200, C300,
01, 02, 03, 04, 05, 06, 07, 08, 09
1 = 100 V, 2 = 200 V, 4 = 400
Example 01000 = 100 A
A = 6P Rectifier + Inverter with internal choke, E = 6P Rectifier + Inverter
(external choke)
Adjustable speed electrical power drive systems - Part 5-1: Safety requirements -
Electrical, thermal and energy
Adjustable speed electrical power drive systems - Part 3: EMC requirements and
specific test methods
Electromagnetic compatibility (EMC) - Part 6-2: Generic standards - Immunity for
industrial environments
Electromagnetic compatibility (EMC) - Part 6-4: Generic standards - Emission
standard for industrial environments
Electromagnetic compa ibility (EMC) - Part 3-2: Limits for harmonic current
emissions (equipment input current ≤16 A per phase)
Electromagnetic compatibility (EMC) - Part 3-3: Limitation of voltage changes,
voltage fluctua ions and flicker in public, low voltage supply systems, for
equipment with rated current ≤16 A per phase and not subject to conditional
connection
Jon Holman-White
Director of Research and Development
Date: 9th October 2018
Nomenclature aaaa - bbc ddddde
