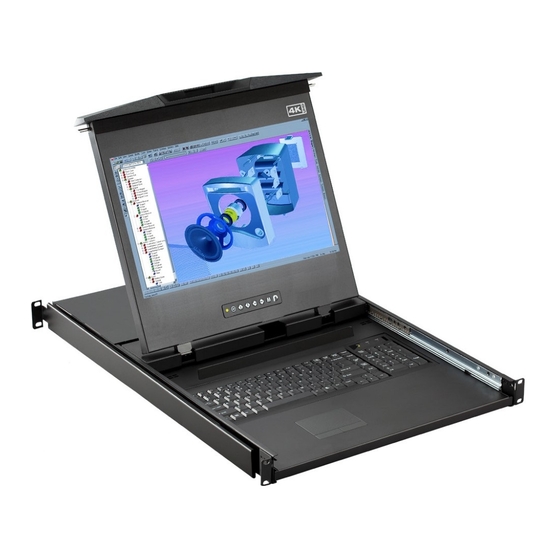

- Page 1 KVM switch and rackmount screen technology User Manual 17” 4K LCD Console Drawer DK117 1U Dual Slide LCD Console Drawer Options : - SDI - HDMI - DC power Designed and manufactured by Austin Hughes UM-CV-751-DK117-Q321V1 www.austin-hughes.com...
- Page 2 Legal Information First English printing, November 2020 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
-
Page 3: Table Of Contents
Contents < Part. 1 > DK117 Package Content Structure Diagram & Dimension Installation P.3 - 5 Connection < Part. 2 > Specifications / OSD Product Specifications Keyboard / Mouse Specifications P.9 - 11 On-screen Display Operation ( OSD ) P.12 - 14 <... - Page 4 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.
-
Page 5: Package Content
< Part 1 > < 1.1 > Package Content DK117 DK117 unit X 1 USB cable X 2 - Power cord X 1 - M6 screw, cage nut & cup washer X 8 The above package content is only for the single console models. It varies with options such as KVM, SDI, HDMI &... - Page 6 < 1.2 > Dimension Front View Rear View AC Input Keyboard Mouse 100~240V Power attached 6ft DP cable UNIT : mm Side View 1mm = 0.03937 inch Top View Product Dimension Packing Dimension Gross Model Net Weight (W x D x H) (W x D x H) Weight 441.6 x 650 x 44 mm...
-
Page 7: Installation
< 1.3 > Installation - How to install Installation Slides DK117 Step ■ Insert the left and right rear mounting brackets into the LCD console drawer. Step ■ Measure the depth of the front and rear mounting rails. ■ Align each rear mounting bracket to a suitable length. Step Complete the installation ■... - Page 8 < 1.3 > Installation - How to Use the Dual Slides ■ Press the handle button and gently slide out the drawer. ■ Flip up the LCD to a suitable angle. ■ Operate the LCD console drawer. UM-CV-751-DK117-Q321V1 www.austin-hughes.com...
- Page 9 Installation - How to Use the Dual Slides DK117 ■ Flip down the front panel. ■ Press the handle button and gently push back the drawer into the rack. ■ Return the LCD console drawer to park position. UM-CV-751-DK117-Q321V1 www.austin-hughes.com...
- Page 10 < 1.4 > DK117 Connection to DP Server LCD Console Drawer Keyboard Mouse Power attached 6ft DP cable DP server DK117 Connection to external KVM LCD Console Drawer Keyboard Mouse Power attached 6ft DP cable DP console KVM Caution : The LCD console drawer is hot-pluggable, but components of connected devices, such as the servers and KVM switch, may not be hot-pluggable.
- Page 11 Intentionally Left Blank UM-CV-751-DK117-Q321V1 www.austin-hughes.com...
-
Page 12: Product Specifications
< Part 2 > < 2.1 > Product Specifications Panel Size ( diagonal ) 17.3-inch Widescreen TFT color LCD Panel Display pixel ( dots x lines ) 3840 x 2160@60Hz Brightness ( typ. ) Contrast Ratio ( typ. ) 1000:1 Color 16.7 M, 8-bit Viewing Angle ( L/R/U/D ) - Page 13 Product Specifications DK117 Physical Product ( W x D x H ) 441.6 x 650 x 44 mm Specification 17.4 x 25.6 x 1.73 inch Packing ( W x D x H ) 595 x 860 x 140 mm 23.4 x 33.9 x 5.5 inch Net Weight 12 kg / 26.4 lb Gross Weight...
-
Page 14: Keyboard / Mouse Specifications
< 2.2 > Keyboard / Mouse Specifications G keyboard integrated with touchpad Key force 55 ± 5g Travelling distance 3 ± 0.3mm Switch life > 10 million life cycle time OS support Windows / Linux / Unix / Mac OS Supporting layouts America United States... - Page 15 MAC Keyboard / Mouse Options DK117 MAC keyboard integrated with touchpad Supporting layouts America United States How to Use "MAC" Keyboard Keyboard Features Decrease display brightness Fast-forward Increase display brightness Mute sound Mission control * Only works with OS X Lion Decrease volume default Keyboard Shortcuts.
- Page 16 < 2.2 > SUN Keyboard / Mouse Options S keyboard integrated with touchpad Ca ps Scro ll Comp ose S keyboard integrated with touchpad / trackball ■ Incorporates SUN keys, including Stop, Cut, Paste, Compose, Copy and Help ■ 104 key notepad keyboard with full numerical pad and SUN function ■...
-
Page 17: On-Screen Display Operation ( Osd )
< 2.3 > On-screen Display Operation ( OSD ) DK117 Power light Green = On Orange = Power saving Membrane Switch Function Power on / off LCD Display the OSD menu Scrolls through menu options and adjusts the displayed control (To auto adjustment by pressing the button for 5 seconds) Exit the OSD screen... - Page 18 < 2.3 > On-screen Display Operation ( OSD ) Picture Brightness : Adjust the screen brightness Contrast : Adjust the difference between the image background ( black level ) and the foreground ( white level ) Black level : Adjust background black level of the screen : Screen in power saving mode Position Picture size : Adjust the image size...
-
Page 19: Part. 3 > Options
On-screen Display Operation ( OSD ) DK117 Reset Reset : Return the adjustment back to factory setting PIP mode : Enter into PIP / PBP setting - PIP MODE / PBP 2WIN ( Main screen + 1 sub screen ) / PBP 3WIN ( Main screen + 2 sub screen ) / PBP 4WIN ( Main screen + 3 sub screen ) Select the signal input of each sub screen... - Page 20 < Part 3 > < 3.1 > Options : 3G / HD / SD-SDI input Austin Hughes’ SDI input is an ideal solution for the broadcast- grade video and high resolution CCTV market. Designed for use with CyberView displays, a SDI input...
-
Page 21: Hdmi
< 3.2 > Options : HDMI DK117 - HDMI 2.0 ( HDCP 2.2 ) ( 1 ) In some circumstances, if the user connects the LCD to PC via HDMI port for video and audio signals, the LCD may display incorrectly on a full screen. If so, please adjust the display card setting on display size to fix the issue. - Page 22 < 3.3 > Options : DC Power Model 125V Input rating Input voltage: 12-Volt 24-Volt 48-Volt 110-Volt Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V 66 ~ 160V Input current - No load 50 mA 50 mA 50 mA 35 mA - Full load...
-
Page 23: Part. 4 > Kvm Integration
< Part. 4 > KVM Integration DK117 www.austin-hughes.com/support/usermanual/cyberview/UM-CV-2KKVM-KIT.pdf Local Remote 8-port 60Hz -801K Product Dimension Packing Dimension Gross Model Net Weight (W x D x H) (W x D x H) Weight 441.6 x 650 x 44 mm 595 x 860 x 140 mm 13 kg 19 kg DK117 with KVM... - Page 24 The company reserves the right to modify product specifications without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2021 Austin Hughes Electronics Ltd. All rights reserved. UM-CV-751-DK117-Q321V1 www.austin-hughes.com...
