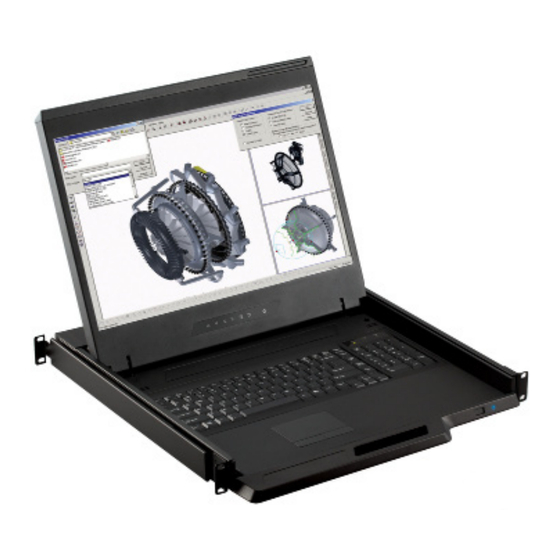

- Page 1 KVM switch and rackmount screen technology User Manual 19” Widescreen LCD 1440 x 900 W119 1U LCD Console Drawer Options : - SDI - AV / HDMI - Full Range KVM - DC power Designed and manufactured by Austin Hughes UM-CV-751-W119-Q420V2 www.austin-hughes.com...
- Page 2 Legal Information First English printing, December, 2020 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
-
Page 3: Table Of Contents
Contents < Part. 1 > W119 Package Content Structure Diagram & Dimension Installation Connection < Part. 2 > Specifications / OSD Product Specifications Keyboard / Mouse Specifications On-screen Display Operation ( OSD ) P.10 < Part. 3 > Options 3G / HD / SD-SDI Broadcast-grade input P.13 HDMI, S-Video + BNC P.14... - Page 4 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.
-
Page 5: W119
< Part 1 > W119 W119 < 1.1 > Package Content W119 unit X 1 - CX-6A 6ft DVI-D console cable X 1 ( Alternative : CB-6A 6ft VGA console cable ) - Power cord X 1 - M6 screw, cage nut & cup washer X 8 The above package content is only for the single console models. - Page 6 < 1.2 > Dimension Front View Rear View UNIT : mm DVI-D 1mm = 0.03937 inch AC Input 100~240V Power Side View Top View Product Dimension Packing Dimension Gross Model Net Weight (W x D x H) (W x D x H) Weight 441.6 x 460 x 44 mm 590 x 808 x 140 mm...
-
Page 7: Installation
< 1.3 > Installation - Installation Slides W119 Step ■ Insert the left and right rear mounting brackets into the LCD console drawer. Step ■ Measure the depth of the front and rear mounting rails. ■ Align each rear mounting bracket to a suitable length. Step Complete the installation ■... - Page 8 < 1.3 > Installation- How to use the drawer ■ Hold the handle and slide out the drawer. ■ Flip up the LCD to a suitable angle. ■ Operate the LCD console drawer. UM-CV-751-W119-Q420V2 www.austin-hughes.com...
-
Page 9: Connection
< 1.4 > Connection to USB Server via CX-6A cable W119 LCD Console Drawer DVI-D AC Input 100~240V POWER CX-6A DVI-D console cable DVI-D USB server < 1.4 > Connection to external KVM via CX-6A cable LCD Console Drawer DVI-D AC Input 100~240V POWER... - Page 10 < 1.4 > Connection to USB Server via CB-6A cable LCD Console Drawer POWER AC Input 100~240V CB-6A VGA console cable USB server < 1.4 > Connection to external KVM via CB-6A cable LCD Console Drawer POWER AC Input 100~240V CB-6A VGA console cable VGA console KVM...
-
Page 11: Specifications / Osd
< Part 2 > Specifications / OSD < 2.1 > Product Specifications W119 Panel Size ( diagonal ) 19-inch Widescreen TFT color LCD Panel Display pixel ( dots x lines ) 1440 x 900 Brightness ( typ. ) Contrast Ratio ( typ. ) 1000:1 Color 16.7 M... - Page 12 Environmental Operating Temperature 0 to 55°C degree Humidity 20~90%, non-condensing Conditions Altitude 16,000 ft Storage / Non-operating Temperature -20 to 60°C degree Humidity 5~90%, non-condensing Altitude 40,000 ft Shock 10G acceleration (11ms duration) Vibration 10~300Hz 0.5G RMS random Physical Product ( W x D x H ) 441.6 x 460 x 44 mm Specification 17.4 x 18.1 x 1.73 inch...
-
Page 13: Keyboard / Mouse Specifications
< 2.2 > Keyboard / Mouse Specifications W119 G keyboard integrated with touchpad G keyboard integrated with trackball Key force 55 ± 5g Travelling distance 3 ± 0.3mm Switch life > 10 million life cycle time OS support Windows / Linux / Unix / Mac OS Supporting layouts America United States... -
Page 14: On-Screen Display Operation ( Osd )
< 2.3 > On-screen Display Operation ( OSD ) Membrane Switch Function Turn the monitor on or off Display the OSD menu Act as an Enter key to select screen setting options Scroll through menu options and adjust the displayed control Exit the OSD screen Go back to the previous on-screen sub-menu or main menu... - Page 15 < 2.3 > On-screen Display Operation ( OSD ) W119 Picture Brightness : Adjust the screen brightness Contrast : Adjust the difference between the image background ( black level ) and the foreground ( white level ) Black level : Adjust background black level of the screen : Screen in power saving mode Position Picture size : Adjust the image size...
- Page 16 < 2.3 > On-screen Display Operation ( OSD ) Reset Reset : Return the adjustment back to factory setting PIP ( Not Applicable to F17 / MF17 ) PIP mode : Enter into PIP / PBP setting - PIP MODE / PBP 2WIN ( Main screen + 1 sub screen ) / PBP 3WIN ( Main screen + 2 sub screen ) / PBP 4WIN ( Main screen + 3 sub screen )
- Page 17 < Part 3 > Options < 3.1 > 3G / HD / SD-SDI input W119 Austin Hughes’ SDI input is an ideal solution for the broadcast- grade video and high resolution CCTV market. Designed for use with CyberView Full HD 1080p and ultra high...
-
Page 18: Options
< 3.2 > Options : - HDMI ( HDMI 1.2 / HDCP 1.1 - AV ( S-Video + Composite, BNC ) ( 1 ) For HDMI option, DVI-D input will be removed. ( 2 ) In some circumstances, if the user connects the LCD to PC via HDMI port for video and audio signals, the LCD may display incorrectly on a full screen. -
Page 19: Kvm Integration
< Part 4 > KVM Integration W119 < 4.1 > W119 www.austin-hughes.com/support/usermanual/cyberview/UM-CV-2KKVM-KIT.pdf Local Remote 8-port -801D www.austin-hughes.com/support/usermanual/cyberview/UM-CV-DVIKVM-KIT.pdf DVI-D Local Remote 12-port -1201D www.austin-hughes.com/support/usermanual/cyberview/UM-CV-MUKVM-KIT.pdf Cat6 Local Remote 8-port 16-port 32-port Matrix -MUIP1613 -MUIP3213 -MUIP1624 -MUIP3224 -MU1602 -MU3202 -MU1603 -MU3203 -MU1604 -MU3204 www.austin-hughes.com/support/usermanual/cyberview/UM-CV-UKVM-KIT.pdf Cat6 Local... - Page 20 The company reserves the right to modify product specifications without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2020 Austin Hughes Electronics Ltd. All rights reserved. UM-CV-751-W119-Q420V2 www.austin-hughes.com...
