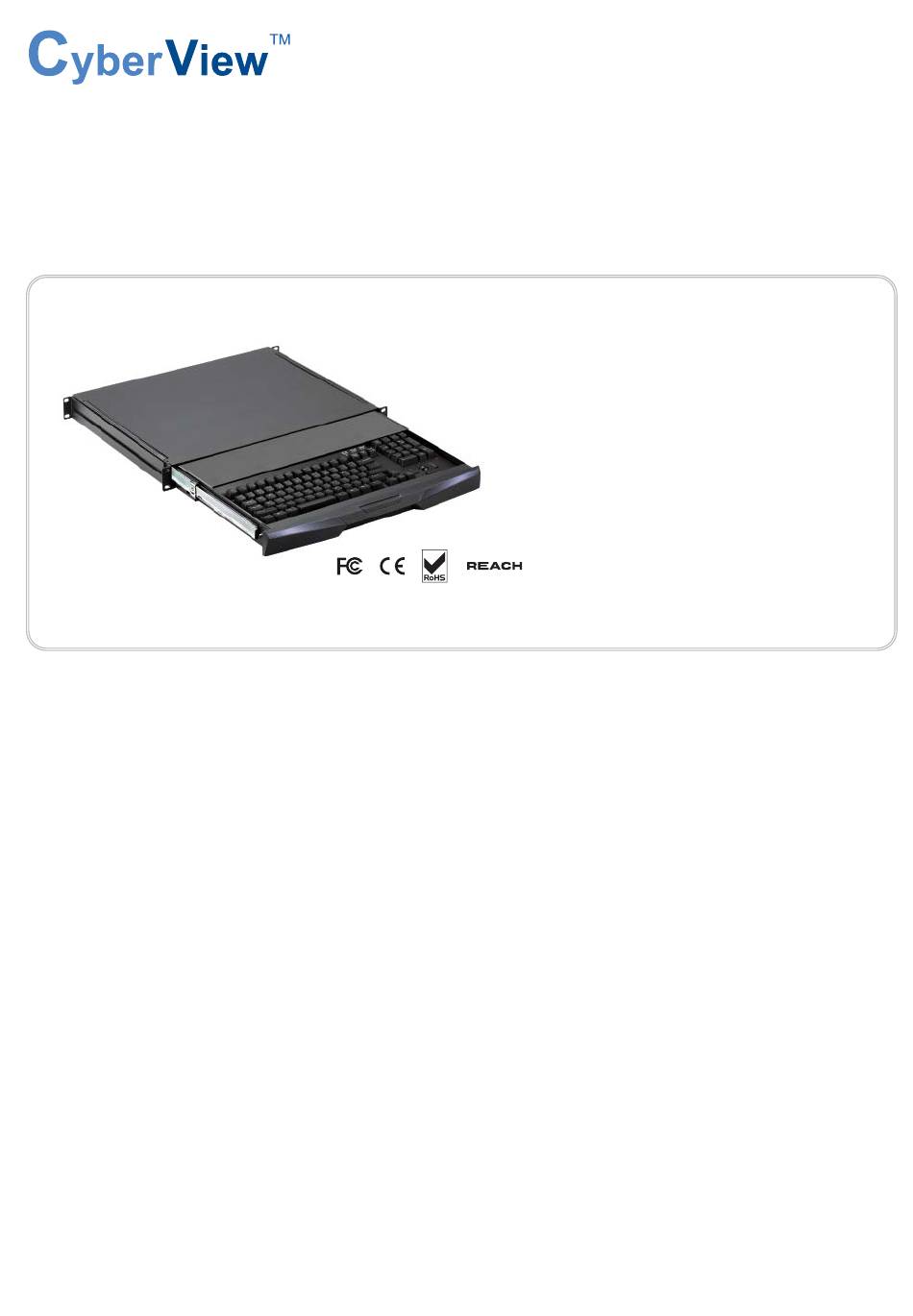

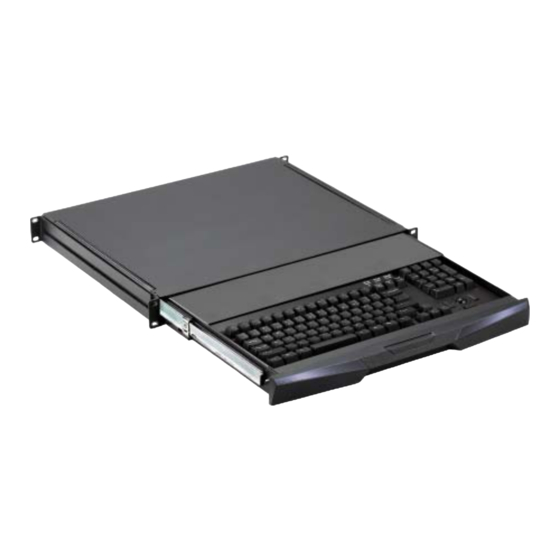

- Page 1 KVM switch and rackmount screen technology User Manual RK-2d / RK-2t 1U Short Depth Keyboard Drawer Designed and manufactured by Austin Hughes UM-CV-751-RK2d-Q215V2 www.austin-hughes.com...
- Page 3 Legal Information First English printing, October 2002 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
-
Page 4: Table Of Contents
Contents < Part. 1 > RK-2d / RK-2t Package Content Structure Diagram & Dimension P.1 - 2 Installation Connection Specifi cations < Part. 2 > Keyboard / Mouse Specifi cations Environmental Conditions UM-CV-751-RK2d-Q215V2 www.austin-hughes.com... -
Page 5: Package Content
Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content. - Page 6 < 1.2 > Dimension Front View UNIT : mm Side View 1mm = 0.03937 inch Top View Product Dimension Packing Dimension Gross Model (W x D x H) (W x D x H) Weight Weight 439 x 369 x 44 mm 582 x 500 x 100 mm 7.4 kg 9.5 kg...
- Page 7 < 1.3 > Installation- How to install L-bracket RK-2d / t Step ■ Install left & right rear L-brackets with two fasteners shown above. ■ Leave the fasteners slightly loose. Step ■ Measure the depth of the front and rear mounting rails.
- Page 8 < 1.4 > Connection to PS/2 or USB Server Keyboard drawer Keyboard drawer EKC-3 Combo EKC-3 Combo KB mouse cable KB mouse cable PS/2 server USB server < 1.4 > Connection to external KVM LCD console drawer LCD console drawer EKC-3 Combo EKC-3 Combo KB mouse cable...
-
Page 9: Keyboard / Mouse Specifi Cations
< Part 2 > < 2.1 > Keyboard / Mouse Specifi cations RK-2d / t Compact keyboard integrated with touchpad Compact keyboard integrated with trackball 90 ± 7g Key force 4.0mm Travelling distance > 3 million life cycle time Switch life MS Windows 7 / 2008 / 2003 / 2000 / XP / ME / 98 / DOC Software support Linux / Mac... -
Page 10: Environmental Conditions
< 2.2 > Environmental Conditions Temperature 0 to 55°C degree Operating Humidity 20~90%, non-condensing Temperature -5 to 60°C degree Storage Humidity 5~90%, non-condensing Shock 10G acceleration (11ms duration) Vibration 5~500Hz 1G RMS random UM-CV-751-RK2d-Q215V2 www.austin-hughes.com... - Page 12 The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2015 Austin Hughes Electronics Ltd. All rights reserved. UM-CV-751-RK2d-Q215V2 www.austin-hughes.com...
