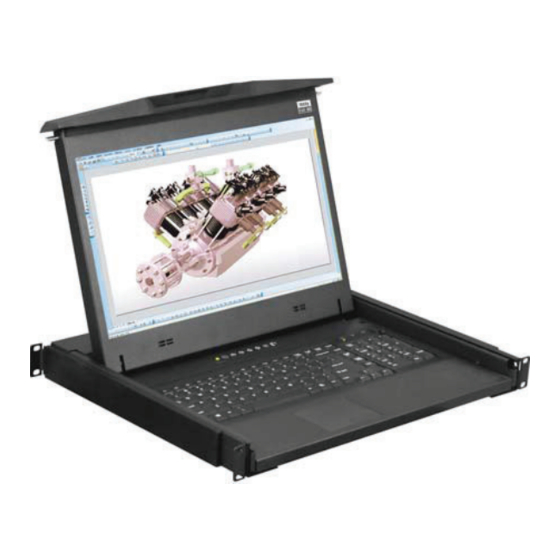

- Page 1 KVM switch and rackmount screen technology User Manual 17″ FHD LCD F1417 1U Ultra short depth LCD Console Drawer Ultra short depth 400mm / 15.7″ Options : - SDI - HDMI / DP - DC power Designed and manufactured by Austin Hughes UM-CV-751-F1417-Q320V1 www.austin-hughes.com...
- Page 2 Legal Information First English printing, July 2020 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
-
Page 3: Table Of Contents
Contents < Part. 1 > F1417 Package Content Structure Diagram & Dimension Installation Connection < Part. 2 > Specifi cations / OSD Product Specifi cations Keyboard / Mouse Specifi cations On-screen Display Operation ( OSD ) P.12 < Part. 3 > Options 3G / HD / SD-SDI Broadcast-grade input P.14... - Page 4 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.
-
Page 5: F1417
< Part 1 > F1417 < 1.1 > Package Content - CX-6A 6ft DVI-D console cable X 1 ( Alternative : CB-6A 6ft VGA console cable ) - 2.5A Power adapter & Power cord X 1 - M6 screw, cage nut & cup washer X 8 <... - Page 6 < 1.2 > Dimension Front View Rear View DVI-D +12 VDC Power VGA UNIT : mm Side View 1mm = 0.03937 inch Top View Product Dimension Packing Dimension Gross Model Net Weight (W x D x H) (W x D x H) Weight 441.6 x 400 x 44 mm 590 x 622 x 140 mm...
-
Page 7: Installation
< 1.3 > Installation - Installation Slides F1417 Step ■ Insert the left and right rear mounting brackets into the LCD console drawer. Step ■ Measure the depth of the front and rear mounting rails. ■ Align each rear mounting bracket to a suitable length. Step Complete the installation ■... - Page 8 < 1.3 > Installation - How to use the drawer ■ Press the handle button and gently slide out the drawer. ■ Flip up the LCD to a suitable angle. ■ Operate the LCD console drawer. UM-CV-751-F1417-Q320V1 www.austin-hughes.com...
-
Page 9: Connection
< 1.4 > Connection to USB Server via CX-6A cable F1417 LCD Console Drawer DVI-D +12 VDC POWER CX-6A DVI-D console cable USB server DVI-D < 1.4 > Connection to external KVM via CX-6A cable LCD Console Drawer DVI-D +12 VDC POWER CX-6A DVI-D console cable... - Page 10 < 1.4 > Connection to USB Server via CB-6A cable POWER +12 VDC CB-6A VGA console cable USB server < 1.4 > Connection to external KVM via CB-6A cable LCD Console Drawer POWER +12 VDC CB-6A VGA console cable VGA console KVM Caution : The LCD console drawer is hot-pluggable, but components of connected devices, such as the servers and KVM switch, may not be hot-pluggable.
-
Page 11: Product Specifi Cations
< Part 2 > < 2.1 > Product Specifi cations F1417 F1417 Panel Native Resolution 1920 x 1080 Panel Size ( diagonal ) 17.3" Brightness ( cd/m² ) Contrast Ratio ( typ. ) 600:1 Colors 16.7 M, 8-bit Viewing Angle ( L/R/U/D ) 80/80/60/80 Response Time ( ms ) Dot pitch ( mm ) - Page 12 Physical F1417 Specifi cation Product ( W x D x H ) 441.6 x 400 x 44 mm 17.4 x 15.7 x 1.73 inch Packing ( W x D x H ) 590 x 622 x 140 mm 23.2 x 24.5 x 5.5 inch Net Weight 8.6 kg / 18.9 lb Gross Weight...
-
Page 13: Keyboard / Mouse Specifi Cations
< 2.2 > Standard Keyboard / Mouse Specifi cations F1417 G keyboard integrated with touchpad G keyboard integrated with trackball Key force 55 ± 5g Travelling distance 3 ± 0.3mm Switch life > 10 million life cycle time OS support Windows / Linux / Unix / Mac OS Supporting layouts America... - Page 14 < 2.2 > MAC Keyboard / Mouse Options MAC keyboard integrated with touchpad MAC keyboard integrated with trackball Supporting layouts America United States How to Use "MAC" Keyboard Keyboard Features Decrease display brightness Fast-forward Increase display brightness Mute sound Mission control * Only works with OS X Lion Decrease volume default Keyboard Shortcuts.
- Page 15 < 2.2 > SUN Keyboard / Mouse Options F1417 S keyboard integrated with touchpad S keyboard integrated with trackball Ca ps Scro ll Comp ose Ca ps Scro ll Comp ose S keyboard integrated with touchpad / trackball ■ Incorporates SUN keys, including Stop, Cut, Paste, Compose, Copy and Help ■...
-
Page 16: On-Screen Display Operation ( Osd )
< 2.3 > On-screen Display Operation ( OSD ) Power light Green = On Orange = Power saving Membrane Switch Function Power on / off LCD Display the OSD menu Scrolls through menu options and adjusts the displayed control (To auto adjustment by pressing the button for 5 seconds) Exit the OSD screen Toggle analog, digital &... - Page 17 On-screen Display Operation ( OSD ) F1417 Color Color temperature : User / Warm / Cool / 5400k mode and Red / Green / Blue color balance Sharpness : Adjust the image from weak to sharp : Adjust the screen hue value Saturation : Adjust the saturation of the image color Dynamic...
- Page 18 < Part 3 > < 3.1 > Options : 3G / HD / SD-SDI input Austin Hughes’ SDI input is an ideal solution for the broadcast- grade video and high resolution CCTV market. Designed for use with CyberView displays, a SDI input...
-
Page 19: Options
< 3.2 > Options : F1417 DP Option - Display Port ( DP 1.0, HDCP 1.3 ) +12 VDC HDMI Option - HDMI ( HDMI 1.4, HDCP 1.4 ) HDMI +12 VDC BNC Option - Composite ( BNC ) +12 VDC AV4.4 Option - Display Port ( DP 1.0, HDCP 1.3 ) - Page 20 < 3.3 > Options : Touchscreen & driver F17" USB Touchscreen Specifi cation Model e-Resistive Technology 5-Wire Resistive Touch Point Single Input Type Finger or Stylus Resolution 2048 x 2048 Response Speed 15 ms Activation Force ≤ 50 g Surface Hardness Light Transmission 80% ±...
- Page 21 < 3.3 > Options : Touchscreen & driver F1417 TRB Driver Please follow the below steps to setup the touch screen:- Step 1. Run the bundled CD disc or download the driver from the link below : http://www.austin-hughes.com/resources/driver/ultraview Step 2. Double click the Setup.exe Step 3.
- Page 22 < 3.4 > Options : DC Power Model 125V Input rating Input voltage: 12-Volt 24-Volt 48-Volt 110-Volt Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V 66 ~ 160V Input current - No load 50 mA 50 mA 50 mA 35 mA - Full load...
-
Page 23: Orb-2.1 2-Post Rack Mounting Brackets
F1417 < 3.5 > F1417 Options : ORB-2.1 2-Post Rack Mounting Brackets Step Right bracket ■ Before apply 2-post rack brackets, please release front mounting ears and rear mounting wheels. fl at head screw 6#32*4.5mm x 3 ■ Attach left and right mounting brackets to the drawer with the screws below : Left bracket 6#32*3.5 mm screw x 8 ( only for front ) - Page 24 The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2020 Austin Hughes Electronics Ltd. All rights reserved. UM-CV-751-F1417-Q320V1 P.20...
