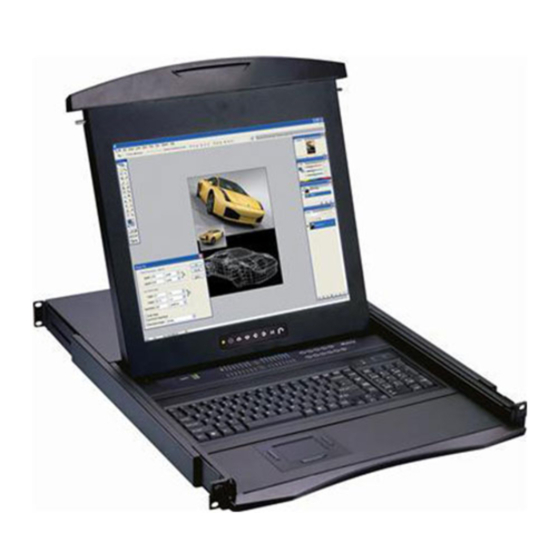

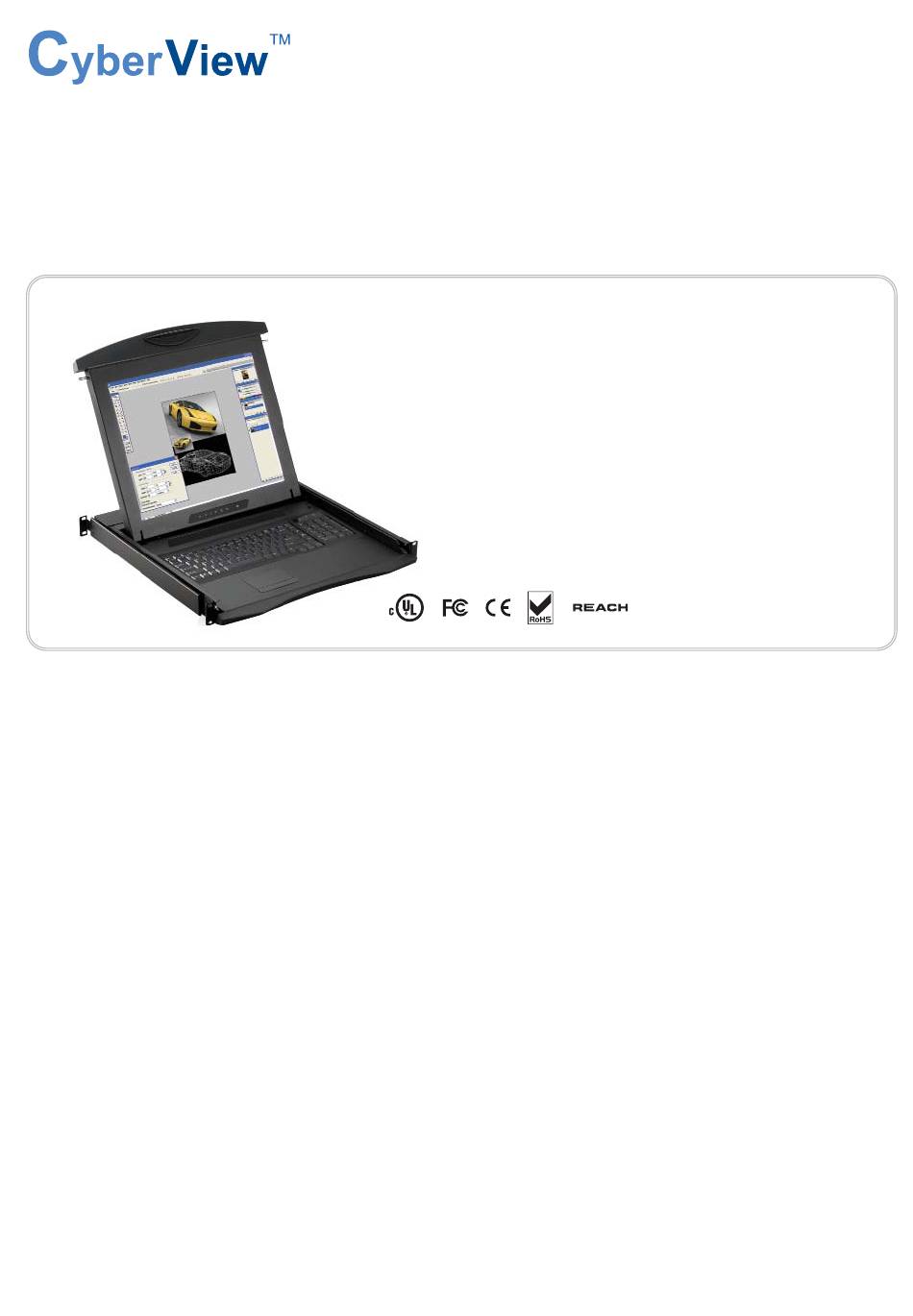

- Page 1 KVM switch and rackmount screen technology User Manual 17” / 19” LCD N117 / N119 1U LCD Console Drawer Options : - AV / DVI-D / HDMI - DC power Designed and manufactured by Austin Hughes UM-CV-751-N117-Q319V1 www.austin-hughes.com...
- Page 2 Intentionally Left Blank UM-CV-751-N117-Q319V1 www.austin-hughes.com...
- Page 3 Legal Information First English printing, July 2019 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
-
Page 4: Table Of Contents
Contents < Part. 1 > N117 / N119 Package Content Structure Diagram & Dimension P.1 - 2 Installation P.3 - 4 Connection P.5 - 6 < Part. 2 > Specifi cations / OSD Product Specifi cations P.7 - 8 Keyboard / Mouse Specifi cations On-screen Display Operation ( OSD ) P.10 - 11 <... - Page 5 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.
-
Page 6: Package Content
< Part 1 > < 1.1 > Package Content N117 or N119 unit X 1 - CB-6 6ft VGA console cable X 1 ( Alternative for PS/2 KB / MS : CE-6 6ft Combo KVM cable ) - Power cord X 1 - M6 screw, cage nut &... - Page 7 < 1.2 > Dimension N117 / N119 Front View Rear View Power UNIT : mm Side View 1mm = 0.03937 inch Top View Product Dimension Packing Dimension Gross Model (W x D x H) (W x D x H) Weight Weight 441.6 x 500 x 44 mm 590 x 808 x 140 mm...
-
Page 8: Installation
< 1.3 > Installation - How to install Installation Slides Step ■ Insert the left and right rear mounting brackets into the LCD console drawer. Step ■ Measure the depth of the front and rear mounting rails. ■ Align each rear mounting bracket to a suitable length. Step Complete the installation ■... - Page 9 < 1.3 > Installation- How to use the drawer N117 / N119 ■ Pull the tab on the front handle and gently slide out the drawer. ■ Flip up the LCD to a suitable angle. ■ Operate the LCD console drawer. UM-CV-751-N117-Q319V1 P.
-
Page 10: Connection
< 1.4 > Connection to USB Server via CB-6 cable LCD Console Drawer CB-6 VGA console cable USB server < 1.4 > Connection to external KVM via CB-6 cable LCD Console Drawer CB-6 VGA console cable USB console KVM The LCD console drawer is hot-pluggable, but components of connected devices, such Caution : as the servers and KVM switch, may not be hot-pluggable. - Page 11 < 1.4 > Connection to PS/2 or USB Server via CE-6 cable N117 / N119 LCD console drawer LCD console drawer CE-6 Combo CE-6 Combo KVM cable KVM cable PS/2 server USB server < 1.4 > Connection to external KVM via CE-6 cable LCD console drawer LCD console drawer...
-
Page 12: Product Specifi Cations
< Part 2 > < 2.1 > Product Specifi cations N117 N119 Panel Manufacturer Panel Size ( diagonal ) 17-inch TFT color LCD 19-inch TFT color LCD Display pixel ( dots x lines ) 1280 x 1024 1280 x 1024 Brightness ( typ. - Page 13 N117 / N119 Operating Temperature 0 to 55°C degree Environmental Conditions Humidity 20~90%, non-condensing Altitude 16,000 ft Storage / Non-operating Temperature -20 to 60°C degree Humidity 5~90%, non-condensing Altitude 40,000 ft Shock 10G acceleration (11ms duration) Vibration 5~500Hz 1G RMS random Physical N117 N119...
-
Page 14: Keyboard / Mouse Specifi Cations
< 2.2 > Keyboard / Mouse Specifi cations G keyboard integrated with touchpad G keyboard integrated with trackball 55 ± 5g Key force 3 ± 0.3mm Travelling distance > 10 million life cycle time Switch life Windows / Linux / Unix / Mac OS OS support Supporting layouts America... -
Page 15: On-Screen Display Operation ( Osd )
< 2.3 > On-screen Display Operation ( OSD ) N117 / N119 Membrane Switch Function Turn the monitor on or off Display the OSD menu Act as an Enter key to select screen setting options Scroll through menu options and adjust the displayed control Exit the OSD screen Go back to the previous on-screen sub-menu or... - Page 16 < 2.3 > On-screen Display Operation ( OSD ) OSD Confi guration Page Image: for the brightness, contrast, color temp, red, green, and blue Geometry: for the auto adjust, H position, V position, phase and clock Video: for the colour, tint, sharpness, noise reduction, DCDi and TV Setup Audio: for volume, bass, treble, balance, AVL and mute Misc:...
- Page 17 < Part 3 > < 3.1 > Options : N117 / N119 ( HDMI 1.2, CEA-861-B - HDMI - DVI-D ( DVI-D TMDS single link ( S-Video + Composite, BNC ) - AV ( 1 ) Either HDMI or DVI-D can be selected. ( 2 ) In some circumstances, if the user connects the LCD to PC via HDMI port for video and audio signals, the LCD may display incorrectly on a full screen.
- Page 18 < 3.2 > Options : DC Power Model 125V Input rating Input voltage: 12-Volt 24-Volt 48-Volt 110-Volt Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V 66 ~ 160V Input current - No load 50 mA 50 mA 50 mA 35 mA - Full load...
- Page 19 < Part. 4 > KVM Integration N117 / N119 www.austin-hughes.com/support/usermanual/cyberview/UM-CV-MUKVM-KIT.pdf Local Remote 8-port 16-port 32-port Matrix Cat6 KVM -MUIP1613 -MUIP3213 -MUIP1624 -MUIP3224 -MU1602 -MU3202 -MU1603 -MU3203 -MU1604 -MU3204 www.austin-hughes.com/support/usermanual/cyberview/UM-CV-UKVM-KIT.pdf Local Remote 8-port 16-port 32-port Cat6 KVM -UIP802 -UIP1602 -UIP3202 -U802 -U1602 -U3202 -U801...
- Page 20 The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2019 Austin Hughes Electronics Ltd. All rights reserved. UM-CV-751-N117-Q319V1 www.austin-hughes.com...
