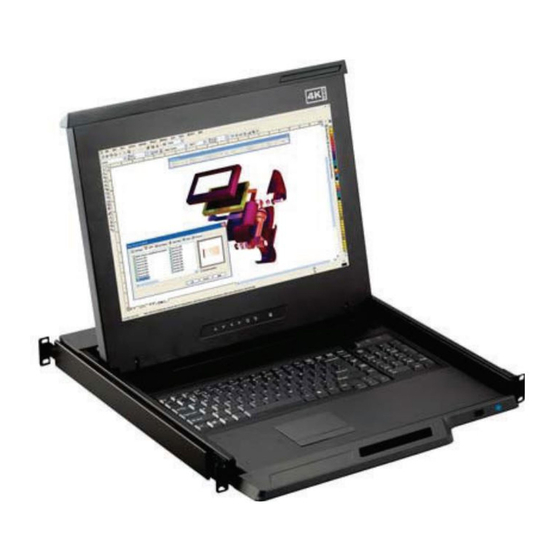

- Page 1 KVM switch and rackmount screen technology User Manual 1U 17″ 4K LCD Console Drawer K117 K1417 Ultra short depth 400mm / 15.7″ Designed and manufactured by Austin Hughes UM-CV-751-K117-Q218V2 www.austin-hughes.com...
-
Page 2: Legal Information
Legal Information First English printing, January 2018 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment. -
Page 3: Table Of Contents
Contents < Part. 1 > K117 / K1417 Package Content P.2 - 3 Structure Diagram & Dimension P.4 - 6 Installation P.8 - 9 Connection < Part. 2 > Specifi cations / OSD Product Specifi cations P.10 - 11 Keyboard / Mouse Specifi cations P.12 - 14 On-screen Display Operation ( OSD ) P.15 - 17... -
Page 4: Before Installation
Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content. -
Page 5: Package Content
< Part 1 > < 1.1 > Package Content K117 K1417 - CP-6 6ft DP console cable X 1 - CP-6 6ft DP console cable X 1 - Power cord X 1 - 4A Power adapter & Power cord X 1 - M6 screw, cage nut &... - Page 6 < 1.2 > Dimension - K117 Front View Rear View Power KB / MS UNIT : mm Side View 1mm = 0.03937 inch Top View K117 Product Dimension Packing Dimension Gross Model (W x D x H) (W x D x H) Weight Weight 441.6 x 480 x 44 mm...
- Page 7 < 1.2 > Dimension - K1417 Front View Rear View Power KB / MS attached 6ft UNIT : mm DP cable Side View 1mm = 0.03937 inch Top View K1417 Product Dimension Packing Dimension Gross Model (W x D x H) (W x D x H) Weight Weight...
-
Page 8: Installation
< 1.3 > Installation - Installation Slides Step ■ Insert the left and right rear mounting brackets into the LCD console drawer. Step ■ Measure the depth of the front and rear mounting rails. ■ Align each rear mounting bracket to a suitable length. Step Complete the installation ■... - Page 9 < 1.3 > Installation - How to use the K117 drawer ■ Hold the handle and slide out the drawer. ■ Flip up the LCD to a suitable angle. ■ Operate the LCD console drawer. UM-CV-751-K117-Q218V2 www.austin-hughes.com...
- Page 10 < 1.3 > Installation - How to use the K1417 drawer ■ Press the handle button and gently slide out the drawer. ■ Flip up the LCD to a suitable angle. ■ Operate the LCD console drawer. UM-CV-751-K117-Q218V2 www.austin-hughes.com...
-
Page 11: Connection
Intentionally Left Blank UM-CV-751-K117-Q218V2 www.austin-hughes.com... - Page 12 < 1.4 > K117 connection to DP Server via CP-6 cable LCD Console Drawer KB / MS Power CP-6 DP console cable USB type A DP server < 1.4 > K117 connection to external KVM via CP-6 cable LCD Console Drawer DP KB / MS Power CP-6 DP...
- Page 13 < 1.4 > K1417 connection to DP Server via attached DP cable LCD Console Drawer Power KB / MS attached 6ft DP cable DP server < 1.4 > K1417 connection to external KVM via attached DP cable LCD Console Drawer Power KB / MS attached 6ft DP cable...
-
Page 14: Product Specifi Cations
< Part 2 > < 2.1 > Product Specifi cations K117 / K1417 Panel Native Resolution 3840 x 2160 Panel Size ( diagonal ) 17.3-inch TFT color LCD Brightness ( cd/m² ) Contrast Ratio ( typ. ) 1000:1 Colors 16.7 M, 8-bit Viewing Angle ( L/R/U/D ) 89/89/89/89 Response Time ( ms ) - Page 15 Applicable Display Port Input PC Signal 3840 x 2160 x 60Hz Format 1920 x 1080 x 60Hz 1600 x 1200 x 60Hz 1360 x 768 x 60Hz 1280 x 1024 x 60 / 75Hz 1280 x 768 x 60Hz 1024 x 768 x 60 / 70 / 75Hz 800 x 600 x 60 / 72 / 75Hz 720 x 400 x 70Hz 640 x 480 x 60 / 72 / 75Hz...
-
Page 16: Keyboard / Mouse Specifi Cations
< 2.2 > Standard Keyboard / Mouse Specifi cations G keyboard integrated with touchpad G keyboard integrated with trackball Key force 55 ± 5g Travelling distance 3 ± 0.3mm Switch life > 10 million life cycle time OS support Windows / Linux / Unix / Mac OS Supporting layouts America United States... - Page 17 < 2.2 > MAC Keyboard / Mouse Options MAC keyboard integrated with touchpad MAC keyboard integrated with trackball Supporting layouts America United States How to Use "MAC" Keyboard Keyboard Features Decrease display brightness Fast-forward Increase display brightness Mute sound Mission control * Only works with OS X Lion Decrease volume default Keyboard Shortcuts.
- Page 18 < 2.2 > SUN Keyboard / Mouse Options S keyboard integrated with touchpad S keyboard integrated with trackball Ca ps Scro ll Comp ose Ca ps Scro ll Comp ose S keyboard integrated with touchpad / trackball ■ Incorporates SUN keys, including Stop, Cut, Paste, Compose, Copy and Help ■...
-
Page 19: On-Screen Display Operation ( Osd )
< 2.3 > On-screen Display Operation ( OSD ) K117 Membrane Switch Function Turn the monitor on or off Display the OSD menu Act as an Enter key to select screen setting options Scroll through menu options and adjust the displayed control Exit the OSD screen Go back to the previous on-screen sub-menu or main menu... - Page 20 < 2.3 > On-screen Display Operation ( OSD ) Picture Brightness : Adjust the screen brightness Contrast : Adjust the difference between the image background ( black level ) and the foreground ( white level ) Black level : Adjust background black level of the screen : Screen in power saving mode Position Picture size : Adjust the image size...
- Page 21 < 2.3 > On-screen Display Operation ( OSD ) Reset Reset : Return the adjustment back to factory setting PIP mode : Enter into PIP / PBP setting - PIP MODE / PBP 2WIN ( Main screen + 1 sub screen ) / PBP 3WIN ( Main screen + 2 sub screen ) / PBP 4WIN ( Main screen + 3 sub screen ) Select the signal input of each sub screen...
- Page 22 < Part 3 > < 3.1 > Options : 3G / HD / SD-SDI input Austin Hughes’ SDI input is an ideal solution for the broadcast- grade video and high resolution CCTV market. Designed for use with CyberView displays, a SDI input...
- Page 23 < 3.2 > Options : HDMI - HDMI 2.0 ( HDCP 2.2 ) ( 1 ) In some circumstances, if the user connects the LCD to PC via HDMI port for video and audio signals, the LCD may display incorrectly on a full screen. If so, please adjust the display card setting on display size to fi...
- Page 24 < 3.3 > Options : Touchscreen & driver K17" USB Touchscreen Specifi cation Model e-Resistive Technology 5-Wire Resistive Touch Point Single Input Type Finger or Stylus Resolution 2048 x 2048 Response Speed 15 ms Activation Force ≤ 50 g Surface Hardness Light Transmission 80% ±...
- Page 25 < 3.3 > Options : Touchscreen & driver TRB Driver Please follow the below steps to setup the touch screen:- Step 1. Run the bundled CD disc or download the driver from the link below : http://www.austin-hughes.com/resources/driver/ultraview Step 2. Double click the Setup.exe Step 3.
- Page 26 < 3.4 > Options : DC Power Model 125V Input rating Input voltage: 12-Volt 24-Volt 48-Volt 110-Volt Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V 66 ~ 160V Input current - No load 50 mA 50 mA 50 mA 35 mA - Full load...
- Page 27 < 3.5 > K1417 Options : ORB-2.1 2-Post Rack Mounting Brackets Step Right bracket ■ Before apply 2-post rack brackets, please release front mounting ears and rear mounting wheels. fl at head screw 6#32*4.5mm x 3 ■ Attach left and right mounting brackets to the drawer with the screws below : Left bracket 6#32*3.5 mm screw x 8 ( only for front )
- Page 28 The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2018 Austin Hughes Electronics Ltd. All rights reserved. P.24 UM-CV-751-K117-Q218V2...
