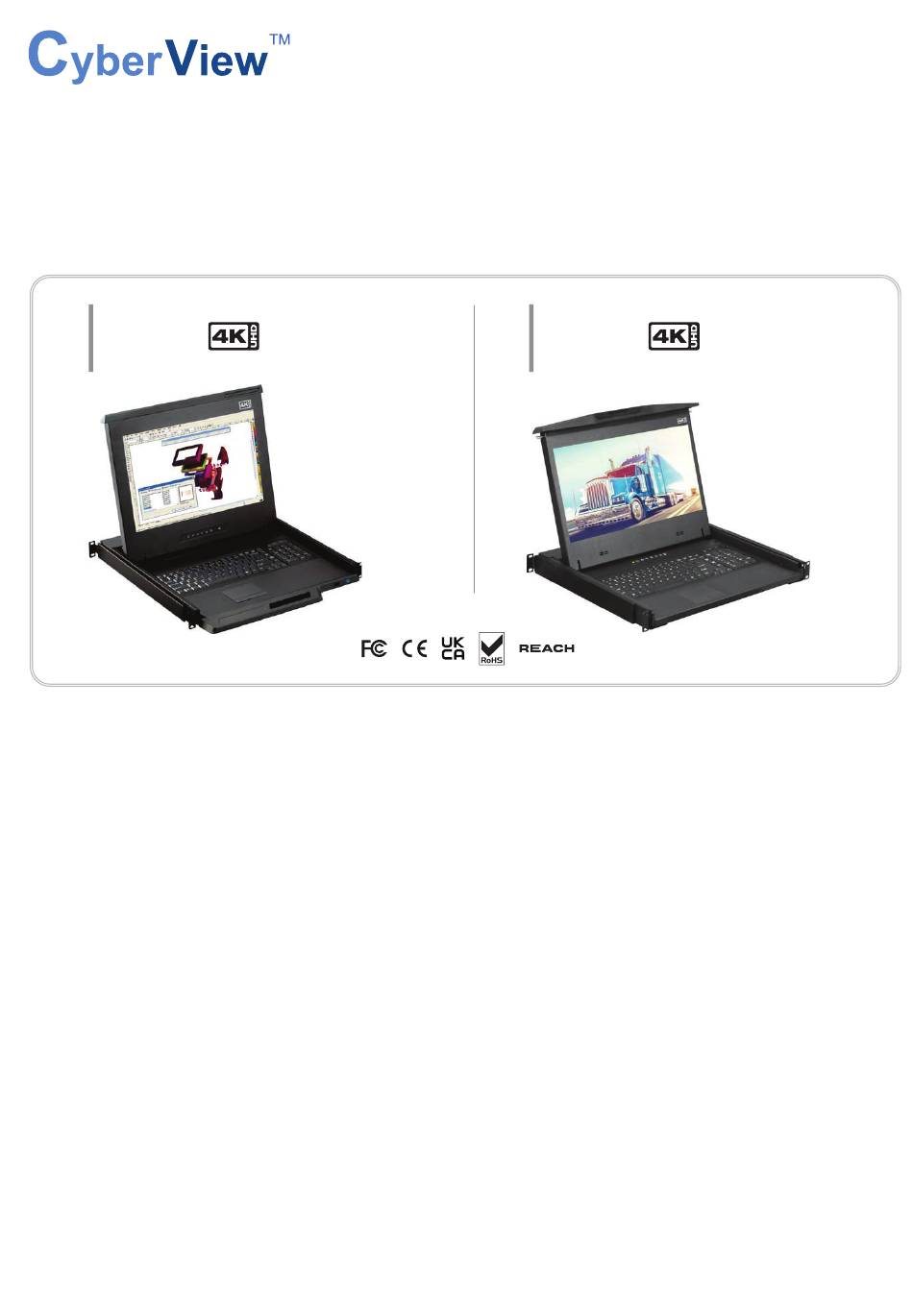

- Page 1 KVM switch and rackmount screen technology User Manual 1U 17″ 4K LCD Console Drawer K117 K1417 Ultra short depth 400mm / 15.7″ Designed and manufactured by Austin Hughes UM-CV-751-K117-Q123V1 www.austin-hughes.com...
- Page 2 Legal Information First English printing, March 2023 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
-
Page 3: Table Of Contents
Contents < Part. 1 > K117 / K1417 Package Content Structure Diagram & Dimension Installation Connection < Part. 2 > Specifi cations / OSD Product Specifi cations Keyboard / Mouse Specifi cations P.11 On-screen Display Operation ( OSD ) P.13 <... - Page 4 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.
-
Page 5: Package Content
< Part 1 > K117 / K1417 K117 / K1417 < 1.1 > Package Content K117 K1417 - USB cable X 2 - USB cable X 2 - Power cord X 1 - 4A Power adapter & Power cord X 1 - M6 screw, cage nut &... - Page 6 < 1.2 > Dimension - K117 Front View Rear View Keyboard Mouse AC Input 100~240V Power attached 6ft DP cable UNIT : mm 1mm = 0.03937 inch Side View Top View K117 Product Dimension Packing Dimension Gross Model Net Weight (W x D x H) (W x D x H) Weight...
- Page 7 K117 / K1417 Dimension - K1417 Front View Rear View +12 VDC Power attached 6ft Keyboard Mouse DP cable UNIT : mm Side View 1mm = 0.03937 inch Top View K1417 Product Dimension Packing Dimension Gross Model Net Weight (W x D x H) (W x D x H) Weight 441.6 x 400 x 44 mm...
-
Page 8: Installation
< 1.3 > Installation - Installation Slides Step ■ Insert the left and right rear mounting brackets into the LCD console drawer. Step ■ Measure the depth of the front and rear mounting rails. ■ Align each rear mounting bracket to a suitable length. Step Complete the installation ■... - Page 9 K117 / K1417 Installation - How to use the K117 drawer ■ Hold the handle and slide out the drawer. ■ Flip up the LCD to a suitable angle. ■ Operate the LCD console drawer. After use the drawer Basically, user can push in the drawer back to park position by releasing the left &...
- Page 10 Installation - How to use the K1417 drawer ■ Press the handle button and gently slide out the drawer. ■ Flip up the LCD to a suitable angle. ■ Operate the LCD console drawer. After use the drawer Basically, user can push in the drawer back to park position by releasing the left &...
- Page 11 K117 / K1417 < 1.4 > K117 Connection to DP Server LCD Console Drawer POWER AC Input 100~240V attached 6ft K/B & MS DP cable USB cable DP server K117 Connection to external KVM LCD Console Drawer POWER AC Input 100~240V attached 6ft K/B &...
- Page 12 K1417 Connection to DP Server LCD Console Drawer POWER +12 VDC attached 6ft K/B & MS DP cable USB cable DP server K1417 Connection to external KVM LCD Console Drawer POWER +12 VDC attached 6ft K/B & MS DP cable USB cable Video Keyboard...
-
Page 13: Specifi Cations / Osd
< Part 2 > Specifi cations / OSD K117 / K1417 < 2.1 > Product Specifi cations K117 / K1417 Panel Native Resolution 3840 x 2160@60Hz Panel Size ( diagonal ) 17.3-inch TFT color LCD Brightness ( cd/m² ) Contrast Ratio ( typ. ) 1000:1 Colors 16.7 M, 8-bit... - Page 14 Physical K117 K1417 Specifi cation Product ( W x D x H ) 441.6 x 460 x 44 mm 441.6 x 400 x 44 mm 17.4 x 18.1 x 1.73 inch 17.4 x 15.7 x 1.73 inch Packing ( W x D x H ) 590 x 808 x 140 mm 590 x 617 x 120 mm 23.2 x 31.8 x 5.5 inch...
-
Page 15: Keyboard / Mouse Specifi Cations
K117 / K1417 < 2.2 > Standard Keyboard / Mouse Specifi cations G keyboard integrated with touchpad G keyboard integrated with trackball Key force 55 ± 5g Travelling distance 3 ± 0.3mm Switch life > 10 million life cycle time OS support Windows / Linux / Unix / Mac OS Supporting layouts... - Page 16 SUN Keyboard / Mouse Options S keyboard integrated with touchpad S keyboard integrated with trackball Ca ps Scro ll Comp ose Ca ps Scro ll Comp ose S keyboard integrated with touchpad / trackball ■ Incorporates SUN keys, including Stop, Cut, Paste, Compose, Copy and Help ■...
-
Page 17: On-Screen Display Operation ( Osd )
K117 / K1417 < 2.3 > On-screen Display Operation ( OSD ) K117 Membrane Switch Function Turn the monitor on or off Display the OSD menu Act as an Enter key to select screen setting options Scroll through menu options and adjust the displayed control Exit the OSD screen Go back to the previous on-screen sub-menu or... - Page 18 K1417 Power light Green = On Orange = Power saving Membrane Switch Function Power on / off LCD Display the OSD menu Scrolls through menu options and adjusts the displayed control (To auto adjustment by pressing the button for 5 seconds) Exit the OSD screen Toggle analog, digital &...
- Page 19 K117 / K1417 On-screen Display Operation ( OSD ) Picture Brightness : Adjust the screen brightness Contrast : Adjust the diff erence between the image background ( black level ) and the foreground ( white level ) Black level : Adjust background black level of the screen : Screen in power saving mode Position Picture size : Adjust the image size...
- Page 20 Reset Reset : Return the adjustment back to factory setting PIP mode : Enter into PIP / PBP setting - PIP MODE / PBP 2WIN ( Main screen + 1 sub screen ) / PBP 3WIN ( Main screen + 2 sub screen ) / PBP 4WIN ( Main screen + 3 sub screen ) Select the signal input of each sub screen PIP size...
- Page 21 Option K117 / K1417 < 3.1 > 3G / HD / SD-SDI input Austin Hughes’ SDI input is an ideal solution for the broadcast- grade video and high resolution CCTV market. Designed for use with CyberView displays, a SDI input...
- Page 22 < 3.2 > Options : HDMI - HDMI 2.0 ( HDCP 2.2 ) HDMI K117 Keyboard Mouse Power attached 6ft attached 6ft HDMI cable DP cable Casing depth will be changed from 480mm ( 18.9″ ) to 530mm ( 20.9″ ) HDMI K1417 +12 VDC...
- Page 23 K117 / K1417 < 3.3 > Options : Touchscreen & driver Capacitive Touch screen Specifi cation K117 K1417 Model TPC-10 Multi-touch Technology Projected Capacitive Touch Point Input Type Finger or Capacitive Stylus Resolution 4096 x 4096 Touch Point Accuracy ± 2 mm Response Speed <...
- Page 24 Options : Touchscreen & driver USB Touchscreen K117 Keyboard Mouse Power attached 6ft DP cable USB Touchscreen K1417 K1417 +12 VDC Keyboard Mouse Power attached 6ft DP cable TPC-10 Driver Connect the USB cable from the USB port on the LCD to a computer. The touch screen supports easy Plug-and-Play operations.
- Page 25 K117 / K1417 < 3.4 > Options : DC Power Model 125V 250V Input rating Input voltage: 12-Volt 24-Volt 48-Volt 110-Volt 300-Volt Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V 66 ~ 160V 180 ~ 425V Input current - No load 50 mA 50 mA...
- Page 26 < 3.5 > K117 Options : ORB-2.1 2-Post Rack Mounting Brackets Step Right bracket ■ Before apply 2-post rack brackets, please release front mounting ears and rear mounting wheels. fl at head screw 6#32*4.5mm x 3 ■ Attach left and right mounting brackets to the drawer with the screws below : Left bracket 6#32*3.5 mm screw x 8 ( only for front )
- Page 27 < Part 4 > KVM integration K117 / K1417 < 4.1 > K117 / K1417 60Hz Remote 8-port K117 - 801K Product Dimension Packing Dimension Model Net Weight Gross Weight (W x D x H) (W x D x H) 441.6 x 530 x 44 mm 590 x 808 x 140 mm 12.1 kg...
- Page 28 The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2023 Austin Hughes Electronics Ltd. All rights reserved. UM-CV-751-K117-Q123V1 P.24...
