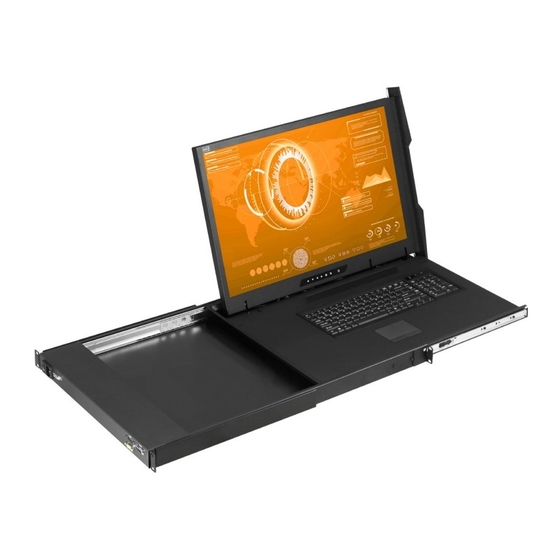

- Page 1 KVM switch and rackmount screen technology User Manual 1U 23″ 4K LCD Console Drawer K123 3840 x 2160 native resolution Designed and manufactured by Austin Hughes UM-CV-751-K123-Q321V1 www.austin-hughes.com...
- Page 2 Legal Information First English printing, November 2020 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
-
Page 3: Table Of Contents
Contents < Part. 1 > K123 Package Content Structure Diagram & Dimension P.1 - 2 Installation P.3 - 4 Connection < Part. 2 > Specifications / OSD Product Specifications P.6 - 7 Keyboard / Mouse Specifications P.8 - 10 On-screen Display Operation ( OSD ) P.11 - 13 <... - Page 4 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.
-
Page 5: K123
< Part 1 > K123 K123 < 1.1 > Package Content - USB cable X 2 - Power cord X 1 - M6 screw, cage nut & cup washer X 8 The above package content is only for the single console models. It varies with options such as SDI, HDMI &... - Page 6 < 1.2 > Dimension Front View Rear View AC Input Keyboard Mouse 100~240V Power attached 6ft UNIT : mm DP cable 1mm = 0.03937 inch Side View Top View Product Dimension Packing Dimension Gross Model Net Weight (W x D x H) (W x D x H) Weight 441.6 x 690 x 44 mm...
-
Page 7: Installation
< 1.3 > Installation - How to install Installation Slides K123 Step ■ Insert the left and right rear mounting brackets into the LCD console drawer. Step ■ Measure the depth of the front and rear mounting rails. ■ Align each rear mounting bracket to a suitable length. Step Complete the installation ■... - Page 8 < 1.3 > Installation- How to use the drawer ■ Hold the handle and slide out the drawer. ■ Flip up the LCD to a suitable angle. ■ Operate the LCD console drawer. Option - Right Side Open ■ at the end of the model no. Flip up LCD from the side sample : K123R...
-
Page 9: Connection
< 1.4 > Connection to DP Server K123 LCD Console Drawer POWER AC Input 100~240V attached 6ft DP cable DP server < 1.4 > Connection to external KVM LCD Console Drawer LCD Console Drawer POWER AC Input 100~240V attached 6ft DP cable Video Keyboard... -
Page 10: Product Specifications
< Part 2 > < 2.1 > Product Specifications Native Resolution 3840 x 2160@60Hz Panel Panel Size ( diagonal ) 23.8-inch TFT color LCD Brightness ( cd/m² ) Contrast Ratio ( typ. ) 1000:1 Colors 1.07 Billion, 10-bit Viewing Angle ( L/R/U/D ) 89/89/89/89 Response Time ( ms ) Dot pitch ( mm ) - Page 11 K123 Applicable Display Port Input PC Signal 3840 x 2160 x 60Hz Format 1920 x 1080 x 60Hz 1920 x 1200 x 60Hz 1600 x 1200 x 60Hz 1280 x 1024 x 60Hz 1024 x 768 x 60 / 70 / 75Hz 800 x 600 x 60 / 72 / 75Hz 720 x 400 x 70Hz 640 x 480 x 60 / 72 / 75Hz...
-
Page 12: Keyboard / Mouse Specifications
< 2.2 > Standard Keyboard / Mouse Specifications G keyboard integrated with touchpad G keyboard integrated with trackball Key force 55 ± 5g Travelling distance 3 ± 0.3mm Switch life > 10 million life cycle time OS support Windows / Linux / Unix / Mac OS Supporting layouts America United States... - Page 13 MAC Keyboard / Mouse Options K123 MAC keyboard integrated with touchpad MAC keyboard integrated with trackball Supporting layouts America United States How to Use "MAC" Keyboard Keyboard Features Decrease display brightness Fast-forward Increase display brightness Mute sound Mission control * Only works with OS X Lion Decrease volume default Keyboard Shortcuts.
- Page 14 < 2.2 > SUN Keyboard / Mouse Options S keyboard integrated with touchpad S keyboard integrated with trackball Ca ps Scro ll Comp ose Ca ps Scro ll Comp ose S keyboard integrated with touchpad / trackball ■ Incorporates SUN keys, including Stop, Cut, Paste, Compose, Copy and Help ■...
-
Page 15: On-Screen Display Operation ( Osd )
< 2.3 > On-screen Display Operation ( OSD ) K123 Membrane Switch Function Turn the monitor on or off Display the OSD menu Act as an Enter key to select screen setting options Scroll through menu options and adjust the displayed control Exit the OSD screen Go back to the previous on-screen sub-menu or main menu... - Page 16 < 2.3 > On-screen Display Operation ( OSD ) Picture Brightness : Adjust the screen brightness Contrast : Adjust the difference between the image background ( black level ) and the foreground ( white level ) Black level : Adjust background black level of the screen : Screen in power saving mode Position Picture size : Adjust the image size...
- Page 17 On-screen Display Operation ( OSD ) K123 Reset Reset : Return the adjustment back to factory setting PIP mode : Enter into PIP / PBP setting - PIP MODE / PBP 2WIN ( Main screen + 1 sub screen ) / PBP 3WIN ( Main screen + 2 sub screen ) / PBP 4WIN ( Main screen + 3 sub screen ) Select the signal input of each sub screen...
- Page 18 < Part 3 > < 3.1 > Options : 3G / HD / SD-SDI input Austin Hughes’ SDI input is an ideal solution for the broadcast- grade video and high resolution CCTV market. Designed for use with CyberView displays, a SDI input...
- Page 19 < 3.2 > Options : HDMI K123 - HDMI 2.0 ( HDCP 2.2 ) ( 1 ) In some circumstances, if the user connects the LCD to PC via HDMI port for video and audio signals, the LCD may display incorrectly on a full screen. If so, please adjust the display card setting on display size to fix the issue.
- Page 20 The company reserves the right to modify product specifications without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2021 Austin Hughes Electronics Ltd. All rights reserved. UM-CV-751-K123-Q321V1 P. 16...
