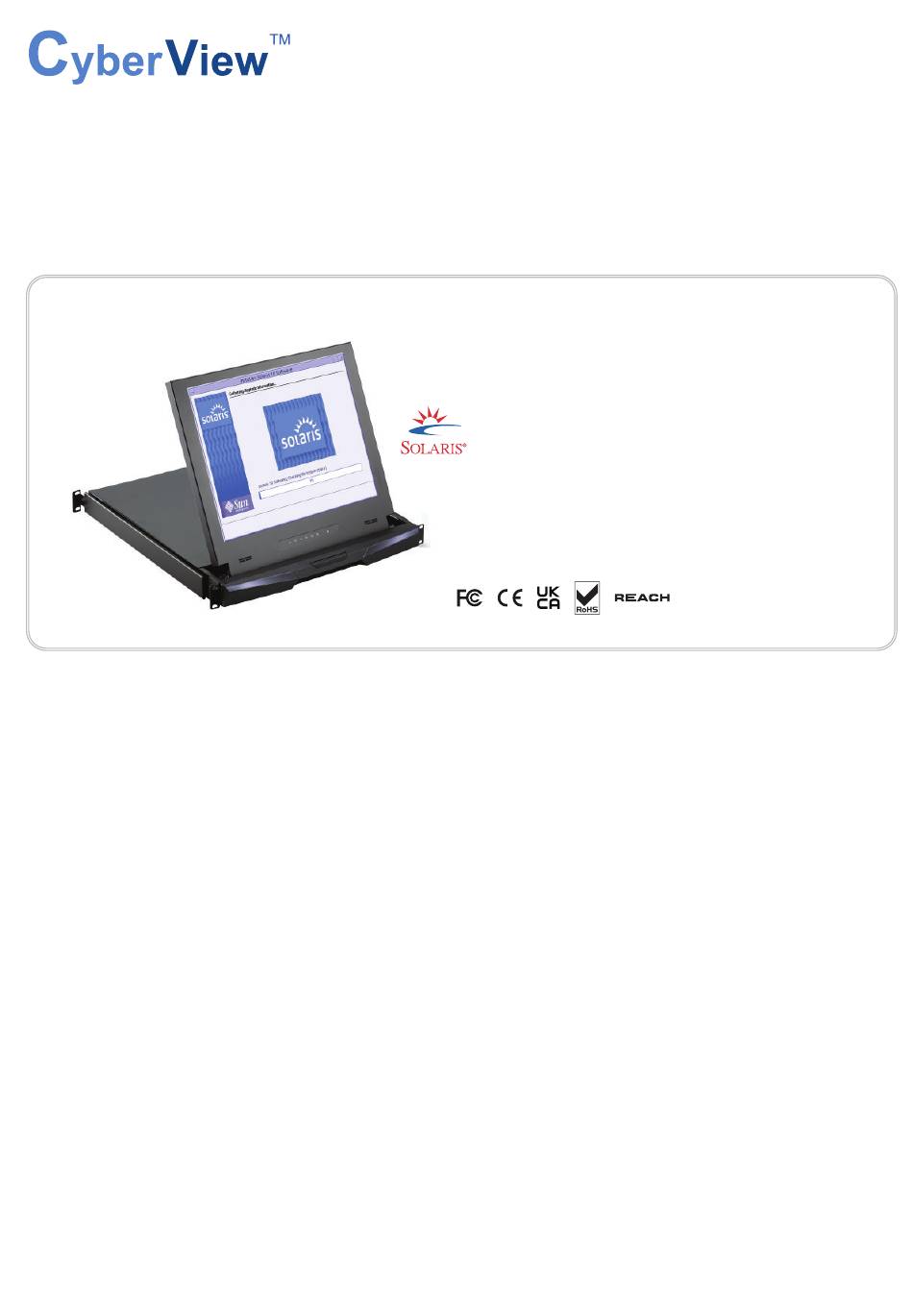

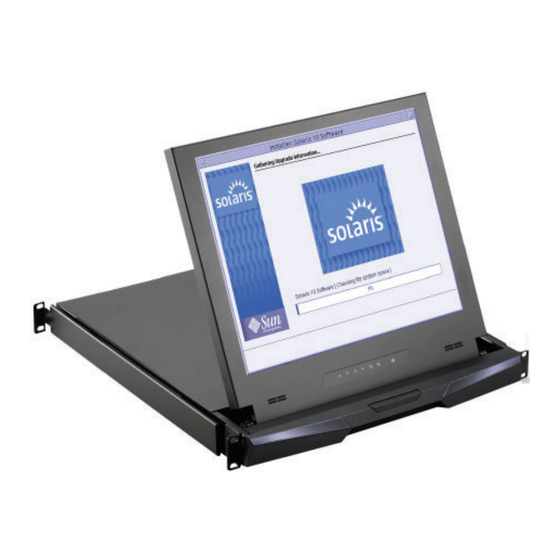

- Page 1 KVM switch and rackmount screen technology User Manual 17” / 19” LCD 1152 x 900 Native Resolution SP-117 / SP-119 1U SUN LCD Drawer Options : - DC power Designed and manufactured by Austin Hughes UM-CV-751-SP-117-Q323V1 www.austin-hughes.com...
- Page 2 Intentionally Left Blank UM-CV-751-SP-117-Q323V1 www.austin-hughes.com...
- Page 3 Legal Information First English printing, July 2023 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
-
Page 4: Table Of Contents
Contents < Part. 1 > SP-117 / SP-119 Package Content Structure Diagram & Dimension Installation < Part. 2 > Specifi cations / OSD Product Specifi cations On-screen Display Operation ( OSD ) < Part. 3 > Options DC Power P.11 UM-CV-751-SP-117-Q323V1 www.austin-hughes.com... - Page 5 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.
-
Page 6: < 1.1 > Package Content
< Part 1 > < 1.1 > Package Content SP-117 or SP-119 unit X 1 - 6ft VGA cable X 1 - Power cord X 1 - M6 screw, cage nut & cup washer X 8 The above package content is only for the pure model ( VGA and HDMI only ). It varies with options such as DC power. - Page 7 < 1.2 > Dimension SP-117 / 119 Front View Rear View Power HDMI UNIT : mm Side View 1mm = 0.03937 inch Top View Product Dimension Packing Dimension Gross Model Net Weight (W x D x H) (W x D x H) Weight 441.6 x 500 x 44 mm 588 x 758 x 120 mm...
-
Page 8: Installation
< 1.3 > Installation - How to install Installation Slides Step ■ Insert the left and right rear mounting brackets into the display drawer. Step ■ Measure the depth of the front and rear mounting rails. ■ Align each rear mounting bracket to a suitable length. Step Complete the installation ■... - Page 9 Intentionally Left Blank UM-CV-751-SP-117-Q323V1 www.austin-hughes.com...
-
Page 10: Product Specifi Cations
< Part 2 > < 2.1 > Product Specifi cations SP-117 SP-119 Panel Manufacturer Panel Size ( diagonal ) 17-inch TFT color LCD 19-inch TFT color LCD 1152 x 900 ( Direct ) 1152 x 900 ( Direct ) Display pixel ( dots x lines ) 1280 x 1024 ( Native ) 1280 x 1024 ( Native ) Brightness ( typ. - Page 11 SP-117 / 119 Physical SP-117 SP-119 Specifi cation Product ( W x D x H ) 441.6 x 500 x 44 mm 441.6 x 500 x 44 mm 17.4 x 19.7 x 1.73 inch 17.4 x 19.7 x 1.73 inch Packing ( W x D x H ) 588 x 758 x 120 mm 588 x 758 x 120 mm...
-
Page 12: On-Screen Display Operation ( Osd )
< 2.2 > On-screen Display Operation ( OSD ) Membrane Switch Function Turn the monitor on or off Display the OSD menu Act as an Enter key to select screen setting options Scroll through menu options and adjust the displayed control Exit the OSD screen Go back to the previous on-screen sub-menu or main menu... - Page 13 Intentionally Left Blank UM-CV-751-SP-117-Q323V1 www.austin-hughes.com...
- Page 14 < 2.2 > On-screen Display Operation ( OSD ) Picture Brightness : Adjust the screen brightness Contrast : Adjust the diff erence between the image background ( black level ) and the foreground ( white level ) Black level : Adjust background black level of the screen : Screen in power saving mode Position Picture size : Adjust the image size...
-
Page 15: Part. 3 > Options
< 2.2 > On-screen Display Operation ( OSD ) SP-117 / 119 Reset Reset : Return the adjustment back to factory setting PIP ( Not Applicable to F17 / MF17 ) PIP mode : Enter into PIP / PBP setting - PIP MODE / PBP 2WIN ( Main screen + 1 sub screen ) / PBP 3WIN ( Main screen + 2 sub screen ) / PBP 4WIN ( Main screen + 3 sub screen ) -
Page 16: Dc Power
The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2023 Austin Hughes Electronics Ltd. All rights reserved. P.11 UM-CV-751-SP-117-Q323V1...
