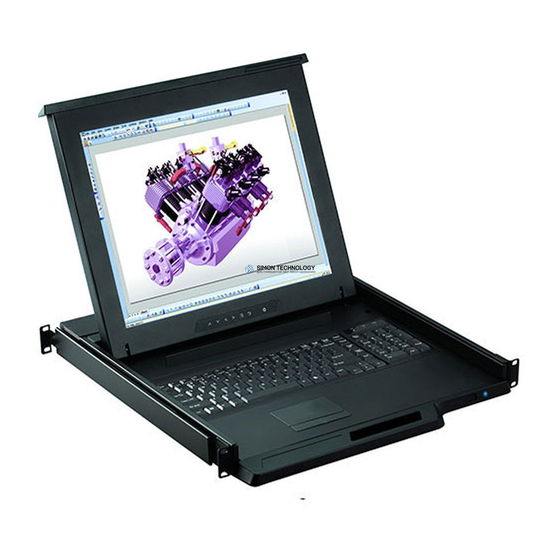

- Page 1 KVM switch and rackmount screen technology User Manual 17” / 19” LCD RKP117 / RKP119 1U LCD Console Drawer Options : - AV / DVI-D / HDMI - DC power Designed and manufactured by Austin Hughes UM-CV-761-RKP117-Q222V1 www.austin-hughes.com...
- Page 2 Legal Information First English printing, April 2022 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
-
Page 3: Table Of Contents
Contents < Part. 1 > RKP117 Package Content Structure Diagram & Dimension Installation Connection < Part. 2 > Specifi cations / OSD Product Specifi cations Keyboard / Mouse Specifi cations On-screen Display Operation ( OSD ) < Part. 3 > Options 3G / HD / SD-SDI Broadcast-grade input P.11... - Page 4 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.
-
Page 5: Package Content
< Part 1 > < 1.1 > Package Content RKP117 / RKP119 RKP117 or RKP119 unit X 1 - CB-6A 6ft VGA console cable X 1 - Power cord X 1 - M6 screw, cage nut & cup washer X 8 The above package content is only for the single console models. - Page 6 < 1.2 > Dimension Front View Rear View UNIT : mm 1mm = 0.03937 inch AC Input 100~240V Power Side View Top View Product Dimension Packing Dimension Gross Model Net Weight (W x D x H) (W x D x H) Weight 441.6 x 470 x 44 mm 590 x 808 x 140 mm...
-
Page 7: Installation
< 1.3 > Installation - How to install Installation Slides RKP117 / RKP119 Step ■ Insert the left and right rear mounting brackets into the LCD console drawer. Step ■ Measure the depth of the front and rear mounting rails. ■... - Page 8 < 1.3 > Installation- How to use the drawer ■ Press the handle button and slide out the drawer. ■ Flip up the LCD to a suitable angle. ■ Operate the LCD console drawer. After use the drawer Basically, user can push in the drawer back to park position by releasing the left &...
-
Page 9: Connection
< 1.4 > Connection to USB Server via CB-6A cable RKP117 / RKP119 LCD Console Drawer POWER AC nput CB-6A VGA console cable USB server < 1.4 > Connection to external KVM via CB-6A cable LCD Console Drawer POWER AC nput CB-6A VGA console cable VGA console KVM... -
Page 10: Product Specifi Cations
< Part 2 > < 2.1 > Product Specifi cations RKP117 RKP119 Panel Manufacturer Panel Size ( diagonal ) 17-inch TFT color LCD 19-inch TFT color LCD Display pixel ( dots x lines ) 1280 x 1024 1280 x 1024 Brightness ( typ. - Page 11 RKP117 / RKP119 Environmental Operating Temperature -20 to 65°C degree Conditions Humidity 20~90%, non-condensing Altitude 16,000 ft Storage / Non-operating Temperature -20 to 65°C degree Humidity 5~90%, non-condensing Altitude 40,000 ft Shock 10G acceleration (11ms duration) Vibration 10~300Hz 0.5G RMS random Physical RKP117 RKP119...
-
Page 12: Keyboard / Mouse Specifi Cations
< 2.2 > Keyboard / Mouse Specifi cations G keyboard integrated with touchpad G keyboard integrated with trackball Key force 55 ± 5g Travelling distance 3 ± 0.3mm Switch life > 10 million life cycle time OS support Windows / Linux / Unix / Mac OS Supporting layouts America United States... -
Page 13: On-Screen Display Operation ( Osd )
< 2.3 > On-screen Display Operation ( OSD ) RKP117 / RKP119 Membrane Switch Function Turn the monitor on or off Display the OSD menu Act as an Enter key to select screen setting options Scroll through menu options and adjust the displayed control Exit the OSD screen Go back to the previous on-screen sub-menu or... - Page 14 < 2.3 > On-screen Display Operation ( OSD ) OSD Confi guration Page Image: for the brightness, contrast, color temp, red, green, and blue Geometry: for the auto adjust, H position, V position, phase and clock Video: for the colour, tint, sharpness, noise reduction, DCDi and TV Setup Audio: for volume, bass, treble, balance, AVL and mute Misc:...
- Page 15 < 3.1 > Options : 3G / HD / SD-SDI input RKP117 / RKP119 Austin Hughes’ SDI input is an ideal solution for the broadcast- grade video and high resolution CCTV market. Designed for use with CyberView displays, a SDI input...
-
Page 16: Options
< 3.2 > Options : AV4.4 Option - HDMI ( HDMI 1.4, HDCP 1.4 ) - DVI-D ( DVI-D TMDS single link ) - Audio input & output HDMI Option - HDMI ( HDMI 1.4, HDCP 1.4 ) - DVI-D ( DVI-D TMDS single link ) BNC Option - BNC... - Page 17 < 3.2 > Options : DC Power RKP117 / RKP119 Model 125V 250V Input rating Input voltage: 12-Volt 24-Volt 48-Volt 110-Volt 300-Volt Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V 66 ~ 160V 180 ~ 425V Input current - No load 50 mA 50 mA...
-
Page 18: Kvm Integration
The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2022 Austin Hughes Electronics Ltd. All rights reserved. UM-CV-761-RKP117-Q222V1 P.14...
