- Page 1 KVM switch and rackmount screen technology User Manual 17” / 19” LCD D117 / D119 1U Dual Slide LCD Console Drawer Options : - AV / DVI-D / HDMI - DC power Designed and manufactured by Austin Hughes UM-CV-751-D117-Q420V1 www.austin-hughes.com...
- Page 2 Legal Information First English printing, November 2020 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
-
Page 3: Table Of Contents
Contents < Part. 1 > D117 / D119 Package Content Structure Diagram & Dimension P.1 - 2 Installation P.3 - 5 Connection P.6 - 7 < Part. 2 > Specifications / OSD Product Specifications P.8 - 9 Keyboard / Mouse Specifications P.10 On-screen Display Operation ( OSD ) P.11... - Page 4 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.
-
Page 5: D117 / D119

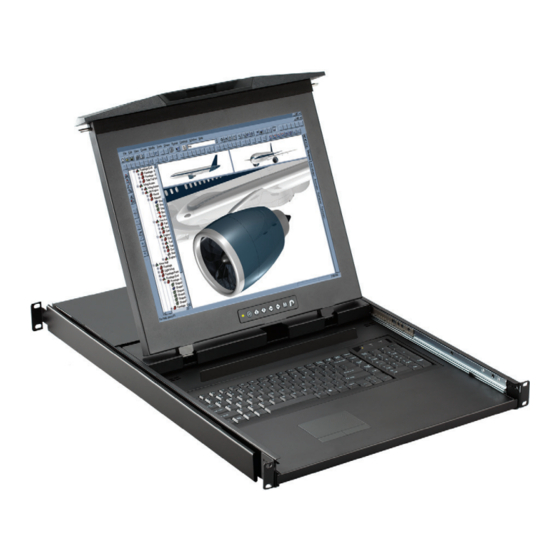

< Part 1 > < 1.1 > Package Content D117 / D119 D117 or D119 unit X 1 - CB-6A 6ft VGA console cable X 1 - Power cord X 1 - M6 screw, cage nut & cup washer X 8 The above package content is only for the single console models. - Page 6 < 1.2 > Dimension Front View Rear View AC Input 100~240V Power Side View UNIT : mm 1mm = 0.03937 inch Top View Product Dimension Packing Dimension Gross Model Net Weight (W x D x H) (W x D x H) Weight 441.6 x 650 x 44 mm 595 x 860 x 140 mm...
-
Page 7: Installation
< 1.3 > Installation - How to install Installation Slides D117 / D119 Step ■ Insert the left and right rear mounting brackets into the LCD console drawer. Step ■ Measure the depth of the front and rear mounting rails. ■... - Page 8 < 1.3 > Installation - How to Use the Dual Slides ■ Press the handle button and gently slide out the drawer. ■ Flip up the LCD to a suitable angle. ■ Operate the LCD console drawer. UM-CV-751-D117-Q420V1 P. 4 www.austin-hughes.com...
- Page 9 < 1.3 > Installation - How to Use the Dual Slides D117 / D119 ■ Flip down the front panel. ■ Press the handle button and gently push back the drawer into the rack. ■ Return the LCD console drawer to park position.
-
Page 10: Connection
< 1.4 > Connection to USB Server via CB-6A cable LCD Console Drawer POWER AC Input 100~240V CB-6A VGA console cable USB server < 1.4 > Connection to external KVM via CB-6A cable LCD Console Drawer POWER AC Input 100~240V CB-6A VGA console cable VGA console KVM... - Page 11 Intentionally Left Blank UM-CV-751-D117-Q420V1 www.austin-hughes.com...
-
Page 12: Product Specifications
< Part 2 > < 2.1 > Product Specifications D117 D119 Panel Manufacturer Panel Size ( diagonal ) 17-inch TFT color LCD 19-inch TFT color LCD Display pixel ( dots x lines ) 1280 x 1024 1280 x 1024 Brightness ( typ. ) Contrast Ratio ( typ. - Page 13 D117 / D119 Environmental Operating Temperature 0 to 55°C degree Humidity 20~90%, non-condensing Conditions Altitude 16,000 ft Storage / Non-operating Temperature -20 to 60°C degree Humidity 5~90%, non-condensing Altitude 40,000 ft Shock 10G acceleration (11ms duration) Vibration 10~300Hz 0.5G RMS random Physical D117 D119...
-
Page 14: Keyboard / Mouse Specifications
< 2.2 > Keyboard / Mouse Specifications G keyboard integrated with touchpad Key force 55 ± 5g Travelling distance 3 ± 0.3mm Switch life > 10 million life cycle time OS support Windows / Linux / Unix / Mac OS Supporting layouts America United States... -
Page 15: On-Screen Display Operation ( Osd )
< 2.3 > On-screen Display Operation ( OSD ) D117 / D119 Power light Green = On Orange = Power saving Membrane Switch Function Power on / off LCD Display the OSD menu Scrolls through menu options and adjusts the displayed control (To auto adjustment by pressing the button for 5 seconds) Exit the OSD screen... -
Page 16: Options
< Part 3 > < 3.1 > Options : - HDMI ( HDMI 1.2, CEA-861-B - DVI-D ( DVI-D TMDS single link - AV ( S-Video + Composite, BNC ) ( 1 ) In some circumstances, if the user connects the LCD to PC via HDMI port for video and audio signals, the LCD may display incorrectly on a full screen. - Page 17 < 3.2 > Options : DC Power D117 / D119 Model 125V Input rating Input voltage: 12-Volt 24-Volt 48-Volt 110-Volt Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V 66 ~ 160V Input current - No load 50 mA 50 mA 50 mA 35 mA...
- Page 18 < Part. 4 > KVM Integration www.austin-hughes.com/support/usermanual/cyberview/UM-CV-2KKVM-KIT.pdf Local Remote 8-port -801D www.austin-hughes.com/support/usermanual/cyberview/UM-CV-DVIKVM-KIT.pdf DVI-D Local Remote 12-port -1201D www.austin-hughes.com/support/usermanual/cyberview/UM-CV-MUKVM-KIT.pdf Cat6 Local Remote 8-port 16-port 32-port Matrix -MUIP1613 -MUIP3213 -MUIP1624 -MUIP3224 -MU1602 -MU3202 -MU1603 -MU3203 -MU1604 -MU3204 www.austin-hughes.com/support/usermanual/cyberview/UM-CV-UKVM-KIT.pdf Cat6 Local Remote 8-port 16-port 32-port Combo...
- Page 19 Intentionally Left Blank UM-CV-751-D117-Q420V1 www.austin-hughes.com...
- Page 20 The company reserves the right to modify product specifications without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2020 Austin Hughes Electronics Ltd. All rights reserved. UM-CV-751-D117-Q420V1 www.austin-hughes.com...
