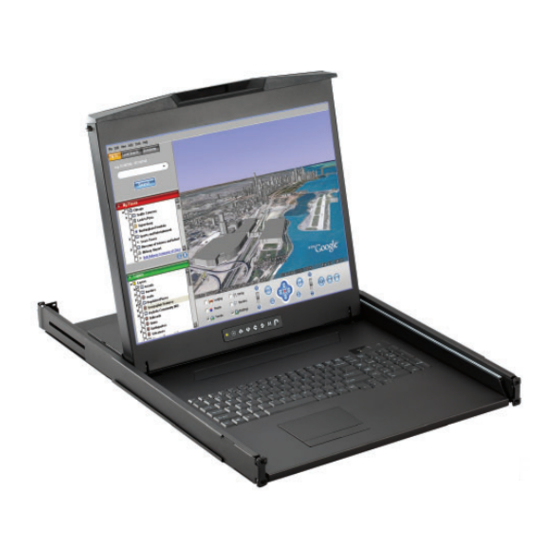

- Page 1 KVM switch and rackmount screen technology User Manual 20” 1600 x 1200 LCD L120 1U LCD Console Drawer Options : - AV / DVI-D / HDMI - DC power Designed and manufactured by Austin Hughes UM-CV-751-L120-Q220V1 www.austin-hughes.com...
- Page 2 Legal Information First English printing, April 2020 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
-
Page 3: Table Of Contents
Contents < Part. 1 > L120 Package Content Structure Diagram & Dimension P.1 - 2 Installation P.3 - 4 Connection P.5 - 6 < Part. 2 > Specifi cations / OSD Product Specifi cations P.7 - 8 Keyboard / Mouse Specifi cations P.9 - 10 <... - Page 4 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.
-
Page 5: < 1.1 > Package Content
< Part 1 > < 1.1 > Package Content L120 L120 unit X 1 - CB-6A 6ft VGA console cable X 1 - Power cord X 1 - M6 screw, cage nut & cup washer X 8 The above package content is only for the single console models. It varies with options such as KVM, HDMI, DVI-D, AV &... - Page 6 < 1.2 > Dimension Front View Rear View AC Input 100~240V Power Side View UNIT : mm 1mm = 0.03937 inch Top View Product Dimension Packing Dimension Gross Model Net Weight (W x D x H) (W x D x H) Weight 439.6 x 650 x 44 mm 595 x 860 x 140 mm...
-
Page 7: Installation
< 1.3 > Installation - How to install 1U 20" LCD Tray L120 Step ■ Attach the left and right mounting bracket to Rear side Right bracket rack 19" mounting rails. ■ Adjust the mounting bracket to fi t your rack. ■... - Page 8 < 1.3 > Installation- How to use the drawer ■ Press the handle button and slide out the drawer. ■ Flip up the LCD to a suitable angle. ■ Operate the LCD console drawer. UM-CV-751-L120-Q220V1 P. 4 www.austin-hughes.com...
- Page 9 < 1.4 > Connection to USB Server via CB-6A cable L120 LCD Console Drawer POWER AC Input 100~240V CB-6A VGA console cable USB server < 1.4 > Connection to external KVM via CB-6A cable LCD Console Drawer POWER AC Input 100~240V CB-6A VGA console cable...
-
Page 10: Product Specifi Cations
< Part 2 > < 2.1 > Product Specifi cations Manufacturer Panel Panel Size ( diagonal ) 20-inch TFT color LCD Display pixel ( dots x lines ) 1600 x 1200 Brightness ( typ. ) Contrast Ratio ( typ. ) 800:1 Color 16.7 M... - Page 11 L120 Environmental Operating Temperature 0 to 55°C degree Humidity 20~90%, non-condensing Conditions Altitude 16,000 ft Storage / Non-operating Temperature -20 to 60°C degree Humidity 5~90%, non-condensing Altitude 40,000 ft Shock 10G acceleration (11ms duration) Vibration 5~500Hz 1G RMS random Physical Product ( W x D x H ) 439.5 x 650 x 44 mm Specifi...
-
Page 12: Keyboard / Mouse Specifi Cations
< 2.2 > Keyboard / Mouse Specifi cations G keyboard integrated with touchpad Key force 55 ± 5g Travelling distance 3 ± 0.3mm Switch life > 10 million life cycle time OS support Windows / Linux / Unix / Mac OS Supporting layouts America United States... - Page 13 < 2.3 > On-screen Display Operation ( OSD ) L120 Power light Green = On Orange = Power saving Membrane Switch Function Power on / off LCD Display the OSD menu Scrolls through menu options and adjusts the displayed control (To auto adjustment by pressing the button for 5 seconds) Exit the OSD screen...
-
Page 14: Part. 3 > Options
< Part 3 > < 3.1 > Options : - HDMI ( HDMI 1.2, CEA-861-B - DVI-D ( DVI-D TMDS single link - AV ( S-Video + Composite, BNC ) ( 1 ) Either HDMI or DVI-D can be selected. ( 2 ) In some circumstances, if the user connects the LCD to PC via HDMI port for video and audio signals, the LCD may display incorrectly on a full screen. - Page 15 < Part. 4 > KVM Integration L120 www.austin-hughes.com/support/usermanual/cyberview/UM-CV-2KKVM-KIT.pdf Local Remote 8-port -801D www.austin-hughes.com/support/usermanual/cyberview/UM-CV-DVIKVM-KIT.pdf DVI-D Local Remote 12-port -1201D www.austin-hughes.com/support/usermanual/cyberview/UM-CV-MUKVM-KIT.pdf Cat6 Local Remote 8-port 16-port 32-port Matrix -MUIP1613 -MUIP3213 -MUIP1624 -MUIP3224 -MU1602 -MU3202 -MU1603 -MU3203 -MU1604 -MU3204 www.austin-hughes.com/support/usermanual/cyberview/UM-CV-UKVM-KIT.pdf Cat6 Local Remote 8-port 16-port 32-port...
- Page 16 The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2020 Austin Hughes Electronics Ltd. All rights reserved. UM-CV-751-L120-Q220V1 www.austin-hughes.com...
