DN Series 100D FL

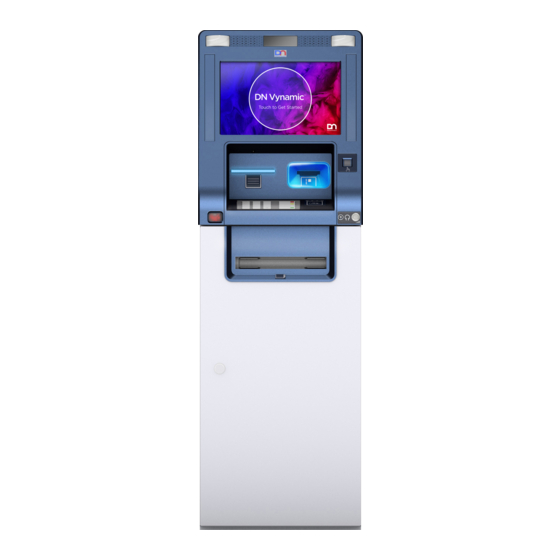

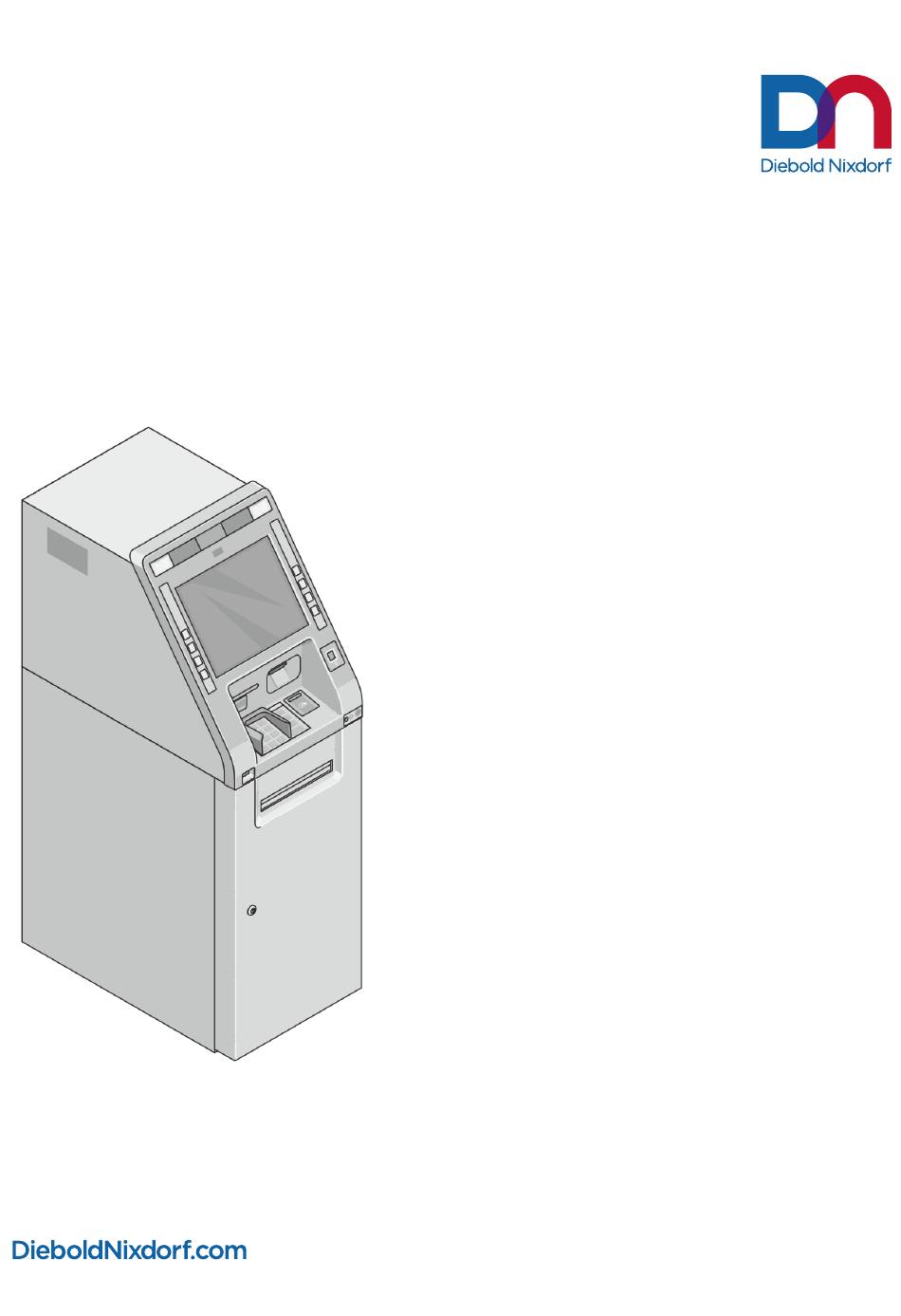

Installation Guide
01750334552E

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DN Series and is the answer not in the manual?

Questions and answers

Summary of Contents for DIEBOLD NIXDORF DN Series

  • Page 1 DN Series 100D FL Installation Guide 01750334552E...
  • Page 2: Table Of Contents

    Drilling diagram: Frontload CEN safe ..............3-24 3.14 Network and data cables....................3-25 3.14.1 Power supply....................... 3-26 3.15 Remote status indicator .....................3-27 3.16 Cable lead-ins into in the safe....................3-28 3.16.1 Rear cable lead-in - Frontload ................3-28 3.17 Transport route requirements.....................3-29 Copyright © 2020, Diebold Nixdorf 01750334552E...
  • Page 3 Shortening cable ends ..................4-31 5 Appendix............................. 5-1 Checklist for installation preparations ................5-1 Technical data ........................5-5 5.2.1 General installation conditions ................5-5 5.2.2 Environmental conditions ..................5-7 Compliance with standards and approvals ................5-8 Environmental protection ....................5-9 Copyright © 2020, Diebold Nixdorf 01750334552E...
  • Page 4 Installation with mounting anchors—Marking out bore holes .........4-16 Illustration 4-9 Installation with mounting anchors—Drilling bore holes ........4-16 Illustration 4-10 Installation with mounting anchors—Aligning the system ........4-17 Illustration 4-11 Installation with mounting anchors— Securing the system ........4-17 Copyright © 2020, Diebold Nixdorf 01750334552E...
  • Page 5 Table of Contents Illustration 4-12 Seal the lower edges of the safe ................4-18 Illustration 4-13 DN Series 100D FL, free-standing installation ............4-19 Illustration 4-14 Accessing the relay panel for external features (frontload) ........4-20 Copyright © 2020, Diebold Nixdorf 01750334552E...
  • Page 6: Introduction

    This installation manual provides all of the information you require to plan and prepare installation, and to set up the DN Series 100D FL. DN Series 100D FL with AFD 2.0 in the Frontload System with Safe versions: • UL 291 safe (4 Hi, 5 Hi) •...
  • Page 7: Section-Specific Warning Notes

    This warning note describes a hazard with a low degree of risk which, if not avoided, could result in slight or minor bodily injury. NOTE This note provides application tips and information that help prevent errors and material damage. Copyright © 2020, Diebold Nixdorf 01750334552E...
  • Page 8: Safety

    2 Safety Characters, labels and symbols The following labels can be used in these instructions, on the system or on the component. Warning signs Mandatory signs Copyright © 2020, Diebold Nixdorf 01750334552E...
  • Page 9: General Safety Precautions For The System

    Risk of impact If the control panel is open or the rear door is open, there is a risk of injury to the head. Move carefully when the control panel or rear door is opened. Copyright © 2020, Diebold Nixdorf 01750334552E...
  • Page 10 • Disconnecting the plug of the power supply cable from the grounded socket in the build- ing installation • For further system-specific notes, please refer to the operating manual • Inform the customer service responsible for you Copyright © 2020, Diebold Nixdorf 01750334552E...
  • Page 11 (e. g. EMA connection). • To clean and maintain the system only use cleaning agents approved by Diebold Nixdorf (see chapter "Cleaning, Service and Maintenance" in the operating manual).
  • Page 12: Notes Concerning Installation

    When installing the system or doing any work on the system, make sure that it is not connected to power. • Before installation, remove the shipping restraints inside the system which secure its components during transportation if necessary, for the installation (see enclosed information sheet). Copyright © 2020, Diebold Nixdorf 01750334552E...
  • Page 13: Planning The Installation

    This chapter provides you with all the information you need to prepare the installation. System Dimensions NOTE All dimensions are specified in millimeters. The system views are not drawn to scale. 3.1.1 3.1.1 Frontload UL safe 4H Illustration 3-1: System dimensions – frontload UL safe 4H Copyright © 2020, Diebold Nixdorf 01750334552E...
  • Page 14: Frontload Ul Safe 5H

    Planning the installation 3.1.2 3.1.2 Frontload UL safe 5H Illustration 3-2: System dimensions - frontload UL safe 5H Copyright © 2020, Diebold Nixdorf 01750334552E...
  • Page 15: Frontload Cen Safe

    Planning the installation 3.1.3 3.1.3 Frontload CEN safe Illustration 3-3: System dimensions — frontload CEN safe Copyright © 2020, Diebold Nixdorf 01750334552E...
  • Page 16: Overview Of Installation Types

    3.2.1 Frontload UL safe NOTE The specified cable lead-ins only apply to the system version DN Series 100D FL with UL safe and with AFD 2.0. For an overview of the cable lead-ins, see section "Power and data cables". Illustration 3-4: Dimensions of cable lead-ins for Frontload UL safe Copyright ©...
  • Page 17: Frontload Cen Safe

    3.2.2 Frontload CEN safe NOTE The specified cable lead-ins only apply to the system version DN Series 100D FL with CEN safe and with AFD 2.0. For an overview of the cable lead-ins, see section "Power and data cables". Illustration 3-5: Rear cable lead-in – Frontload CEN safe Copyright ©...
  • Page 18: Installation Options Of System Versions

    NOTE When installing the frontload ATM device, always contact your insurance company before- hand. In case of doubt, contact your Diebold Nixdorf consultant for advice. NOTE Observe the necessary operation and maintenance space for the various types of installa- tion (see section "Space required for operation and maintenance").
  • Page 19: Perspective View Ul Safe 5H (Free-Standing)

    Planning the installation 3.3.2 3.3.2 Perspective view UL safe 5H (free-standing) Illustration 3-7: Frontload UL safe 5H Copyright © 2020, Diebold Nixdorf 01750334552E...
  • Page 20: Perspective View Cen Safe (Free-Standing)

    Planning the installation 3.3.3 3.3.3 Perspective view CEN safe (free-standing) Illustration 3-8: Frontload CEN safe Copyright © 2020, Diebold Nixdorf 01750334552E...
  • Page 21: Position Of Safe

    Planning the installation 3.3.4 3.3.4 Position of safe 3.3.4.1 3.3.4.1 UL safe frontload Illustration 3-9: Position of UL safe Attachment points Tear-off sensor Cable lead-in (rear) Copyright © 2020, Diebold Nixdorf 01750334552E...
  • Page 22: Illustration 3-10 Position Of Cen Safe

    Planning the installation 3.3.4.2 3.3.4.2 CEN safe frontload Illustration 3-10: Position of CEN safe Attachment points Tear-off sensor Cable lead-in (rear) Copyright © 2020, Diebold Nixdorf 3-10 01750334552E...
  • Page 23: Ventilation Opening

    Illustration 3-11: Ventilation openings Air inlet Air outlet NOTE In principle, it must be ensured that the distance between the ventilation openings and the wall is always at least 50mm (1.97") (see also section "Section 3.6"). Copyright © 2020, Diebold Nixdorf 3-11 01750334552E...
  • Page 24: Storage If Construction Work Is Not Yet Complete

    If interior construction work is not complete at the time of installation, it is imperative that the system is protected against contamination from building dust. When doing this, you can use the protective plastic packaging that was used to deliver the system. Copyright © 2020, Diebold Nixdorf 3-12 01750334552E...
  • Page 25: Space Required For Operation And Maintenance

    The following illustrations provide the required operating and maintenance areas for the frontload system version. 3.6.1 3.6.1 Frontload version with UL safe Illustration 3-12: Space required for operation and maintenance, frontload system with UL safe Ventilation area Minimum operation and maintenance space Optimum operation and maintenance space Copyright © 2020, Diebold Nixdorf 3-13 01750334552E...
  • Page 26: Frontload Version With Cen Safe

    Planning the installation 3.6.2 3.6.2 Frontload version with CEN safe 1190 Illustration 3-13: Space required for operating and maintenance, frontload system with CEN safe Ventilation area Minimum operation and maintenance space Optimum operation and maintenance space Copyright © 2020, Diebold Nixdorf 3-14 01750334552E...
  • Page 27: Floor Space Requirements

    Notes on floor mounting To achieve the security level stipulated by country-specific regulations and meet the requirements of commercial insurance companies, the system must be bolted to the load-bearing substructure of the floor. Copyright © 2020, Diebold Nixdorf 3-15 01750334552E...
  • Page 28: Tear-Off Resistance In Compliance With Vds And En 1143-1 Guidelines

    NOTE A mounting structure that differs from the description in chapter "Section 4" is not compli- ant with the regulations and must be clarified in advance with the end customer and prop- erty insurer. Copyright © 2020, Diebold Nixdorf 3-16 01750334552E...
  • Page 29: Mounting Without Installation Frames

    3.11.1 3.11.1 General information A DN Series 100D FL can be installed without an installation frame. The device is secured to the floor by the corresponding attachment points (see section "Section 3.13"). The safe is screwed with the floor. The attachment of the safe depends on the safe construction type (UL 291, CEN-I).
  • Page 30: Dimensions Of The Safe Attachment Points

    3.11.2 3.11.2 Dimensions of the safe attachment points Frontload UL safe Illustration 3-14: Dimensions of safe attachment points for Frontload UL safe 1 Attachment points 3 Cable lead-in into the safe 2 Tear-off sensor Copyright © 2020, Diebold Nixdorf 3-18 01750334552E...
  • Page 31: Illustration 3-15 Dimensions Of Safe Attachment Points For Frontload Cen Safe

    Planning the installation Frontload CEN safe Illustration 3-15: Dimensions of safe attachment points for Frontload CEN safe 1 Attachment points 3 Cable lead-in into the safe 2 Tear-off sensor Copyright © 2020, Diebold Nixdorf 3-19 01750334552E...
  • Page 32: Dimensions Of Cable Lead-Ins

    Planning the installation 3.11.3 3.11.3 Dimensions of cable lead-ins Frontload UL safe Illustration 3-16: Dimensions of cable lead-ins for Frontload UL safe 3 Cable lead-in into the safe Copyright © 2020, Diebold Nixdorf 3-20 01750334552E...
  • Page 33: Illustration 3-17 Dimensions Of Cable Lead-Ins For Frontload Cen Safe

    Planning the installation Frontload CEN safe Illustration 3-17: Dimensions of cable lead-ins for Frontload CEN safe 3 Cable lead-in into the safe Copyright © 2020, Diebold Nixdorf 3-21 01750334552E...
  • Page 34: Tear-Off Sensor

    22 mm (0.87") in UL / CEN safe The mounting material (threaded rod, cartridge) is to be provided by the customer (alarm technician). NOTE No power, data or alarm cables should be run below the AFD 2.0. Copyright © 2020, Diebold Nixdorf 3-22 01750334552E...
  • Page 35: Drilling Diagrams

    3.13 Drilling diagrams The following figures specify the distance from the edge of the device of the drill holes that are used to secure the DN Series 100D FL and the tear-off sensor. NOTE When aligning the system, please note that the safe is 70 mm shorter than the system.
  • Page 36: Drilling Diagram: Frontload Cen Safe

    Tear-off sensor Rear cable lead-in Drilling depth: Drilled hole for tear-off At least 40 mm (1.57") in concrete. Consult your alarm technician about the sensor: : size of the hole and the fixing. Copyright © 2020, Diebold Nixdorf 3-24 01750334552E...
  • Page 37: Network And Data Cables

    Excess lengths of cable must be avoided; shorten them where necessary. You must en- sure that connecting cables do not impede or actually damage any moving components. NOTE For detailed information regarding the cable lead-ins, please refer to the section "Section 3.11.3". Copyright © 2020, Diebold Nixdorf 3-25 01750334552E...
  • Page 38: Power Supply

    L N PE Fuse or automatic circuit-breaker Connection DN Series 100D FL Modem connection Connection of miscellaneous equipment Copyright © 2020, Diebold Nixdorf...
  • Page 39: Remote Status Indicator

    The optional Remote Status Indicator comes with a 50m-long (164.1 ft) connecting cable. During the planning process, the position for installation as well as cable routing must be determined (also see chapter "Section 4.11"). Copyright © 2020, Diebold Nixdorf 3-27 01750334552E...
  • Page 40: Cable Lead-Ins Into In The Safe

    Planning the installation 3.16 3.16 Cable lead-ins into in the safe DN Series 100D FL systems with both UL and CEN safes have rear cable lead-ins as illustrated below: 3.16.1 3.16.1 Rear cable lead-in - Frontload Illustration 3-20: Cable lead-in into the safe from the rear...
  • Page 41: Transport Route Requirements

    Observe the ambient condition requirements for transportation and storage (see chapter "Section 5"). Some dimensions may differ due to the wooden pallet (see following illustrations in current chapter). Copyright © 2020, Diebold Nixdorf 3-29 01750334552E...
  • Page 42: Transport Dimensions Ul Safe Frontload

    Transport dimensions of 4H UL safe Illustration 3-21: Transport dimensions of the frontload wooden shipping pallet, 4H UL safe Wooden pallet **Shipping racks (optional) are only used for systems shipped in Europe (see “Section 3.17.1.1”). Copyright © 2020, Diebold Nixdorf 3-30 01750334552E...
  • Page 43: Illustration 3-22 Transport Dimensions Of The Frontload Wooden Shipping Pallet, 5H Ul Safe

    Transport dimensions of 5H UL safe Illustration 3-22: Transport dimensions of the frontload wooden shipping pallet, 5H UL safe Wooden pallet **Shipping racks (optional) are only used for systems shipped in Europe (see “Section 3.17.1.1”). Copyright © 2020, Diebold Nixdorf 3-31 01750334552E...
  • Page 44: Illustration 3-23 Transport Dimensions Of The Frontload Metal Shipping Bracket, 4H Ul Safe

    3.17.1.1 3.17.1.1 Transport dimensions UL safe frontload - metal shipping bracket Transport dimensions for 4H UL safe Illustration 3-23: Transport dimensions of the frontload metal shipping bracket, 4H UL safe 1 Metal shipping bracket Copyright © 2020, Diebold Nixdorf 3-32 01750334552E...
  • Page 45: Illustration 3-24 Transport Dimensions Of The Frontload Metal Shipping Bracket, 5H Ul Safe

    Planning the installation Transport dimensions for 5H UL safe Illustration 3-24: Transport dimensions of the frontload metal shipping bracket, 5H UL safe 1 Metal shipping bracket Copyright © 2020, Diebold Nixdorf 3-33 01750334552E...
  • Page 46: Illustration 3-25 Transport Dimensions Of Ul Safe Frontload

    Planning the installation 3.17.1.2 3.17.1.2 Transport path requirements for UL safe 1540 Illustration 3-25: Transport dimensions of UL safe frontload Copyright © 2020, Diebold Nixdorf 3-34 01750334552E...
  • Page 47: Illustration 3-26 Minimum Transport Dimensions Ul Safe Frontload

    Planning the installation Example with minimum dimensions of the transport route 1540 Illustration 3-26: Minimum transport dimensions UL safe frontload Copyright © 2020, Diebold Nixdorf 3-35 01750334552E...
  • Page 48: Transport Dimensions Cen Safe Frontload

    With the help of the grid (100 mm x 100 mm or 3.94" x 3.94"), you can draw the actual di- mensions of the door and the hallway to find out if there is enough space for transporta- tion. Refer to "Section 3.17.2.2" for an example. Copyright © 2020, Diebold Nixdorf 3-36 01750334552E...
  • Page 49: Illustration 3-28 Transport Dimensions Of The Frontload Metal Shipping Bracket, Cen Safe

    Planning the installation 3.17.2.1 3.17.2.1 Transport dimensions CEN safe frontload - metal shipping bracket Illustration 3-28: Transport dimensions of the frontload metal shipping bracket, CEN safe Metal shipping bracket Copyright © 2020, Diebold Nixdorf 3-37 01750334552E...
  • Page 50: Illustration 3-29 Transport Dimensions Cen Safe Frontload

    Planning the installation 3.17.2.2 3.17.2.2 Transport path requirements for CEN safe 1540 Illustration 3-29: Transport dimensions CEN safe frontload Copyright © 2020, Diebold Nixdorf 3-38 01750334552E...
  • Page 51: Illustration 3-30 Minimum Transport Dimensions Cen Safe Frontload

    Planning the installation Example with minimum dimensions of the transport route 1540 Illustration 3-30: Minimum transport dimensions CEN safe frontload Copyright © 2020, Diebold Nixdorf 3-39 01750334552E...
  • Page 52: Installation

    In the event of non-compliance, Diebold Nixdorf shall not assume liability for any damage caused to the system.
  • Page 53: Disassembly Of Wooden Shipping Pallet

    Always try and grasp the system as low down as possible. The system must not be shifted by exerting pressure on moving parts, such as the customer panel or the system doors. Illustration 4-1: Wooden shipping pallet - Only shift in the directions indicated Copyright © 2020, Diebold Nixdorf 01750334552E...
  • Page 54: Illustration 4-2 Shipping Pallet - Removing Screws

    NOTE Remove the AFD 2.0 before removing the wooden shipping pallet (refer to section "AFD from bottom rails of safe" in the DN Series 100D FL Service Manual). Proceed as follows to disassemble the wooden shipping pallet: Illustration 4-2: Shipping pallet - Removing screws Remove the 4 screws of the shipping pallet from the inside of the safe.
  • Page 55: Illustration 4-3 Shipping Pallet - Removing From The System

    Carefully lift the system from the side with the help of the lift truck (1). Remove the wooden pallet from the DN Series 100D FL (2). Dispose of the wooden pallet that is no longer needed in accordance with the regulations in your country.
  • Page 56: Disassembly Of Metal Shipping Bracket

    Always try and grasp the system as low down as possible. The system must not be shifted by exerting pressure on moving parts, such as the customer panel or the system doors. Illustration 4-4: Metal shipping bracket – Only shift in the directions indicated Copyright © 2020, Diebold Nixdorf 01750334552E...
  • Page 57: Illustration 4-5 Shipping Bracket - Removing Screws

    NOTE Remove the AFD 2.0 before removing the metal shipping bracket (refer to section "AFD from bottom rails of safe" in te DN Series 100D FL Service Manual). Proceed as follows to disassemble the metal shipping bracket: Illustration 4-5: Shipping bracket – Removing screws Remove the 4 screws of the shipping bracket from below.
  • Page 58: Illustration 4-6 Shipping Bracket - Removing From The System

    Carefully lift the system from the side with the help of the lift truck (1). Remove the metal bracket from the DN Series 100D FL (2). Dispose of the metal bracket that is no longer needed in accordance with the regulations in your country.
  • Page 59: Removal Of Shipping Restraints

    4.3.1 AFD 2.0 1. Open the front door of the system (refer to DN Series 100D FL Operating Manual). 2. Open the safe door of the system (refer to DN Series 100D FL Operating Manual). 3. Shipping restraints of the AFD 2.0 are as labelled.
  • Page 60 9. Remove the 3 foam pads (1) in the directions indicated. 10. Push the AFD 2.0 cash module back into the device (refer to DN Series 100D FL Operating Manual “Pulling out/Pushing in the cash module”).
  • Page 61: Tp30/Tp31 Receipt Printer

    Installation 4.3.2 4.3.2 TP30/TP31 receipt printer 1. Open the fascia of the system (refer to DN Series 100D FL operating manual). TP30 2. Remove the 2 shipping screws (1). TP31 2. Remove the 2 shipping screws (1). Copyright © 2020, Diebold Nixdorf...
  • Page 62: Removal Of Afd To Install Anchor Bolts

    3. On the left side of the AFD, remove the PCB cover (1). 4. Detach the connector from the PCB (1). 5. Unplug connectors (2) and (3) from the PCB. Pull out the cable of the con- nector removed. Copyright © 2020, Diebold Nixdorf 4-11 01750334552E...
  • Page 63 The weight of the AFD 2.0 is above 20kg. Ensure that there are at least 2 people when lift- ing the AFD from the sliders. NOTE Install it by following the same steps in reverse order. Copyright © 2020, Diebold Nixdorf 4-12 01750334552E...
  • Page 64: Mounting Sets

    Mounting set (expansion anchor set) Mounting set 01750308242 (for expansion anchor set) Nomenclature Required quantity Mounting anchor (expansion anchor HST3 M20 x 170 mm (6.70"), electro galvanized, at least 700 N/mm ), washer D20 DIN 125 A Copyright © 2020, Diebold Nixdorf 4-13 01750334552E...
  • Page 65: Overview Of Installation Types

    Installation Overview of installation types NOTE Observe the necessary operation and maintenance space for the various types of installa- tion (see section "Space required for operation and maintenance"). Copyright © 2020, Diebold Nixdorf 4-14 01750334552E...
  • Page 66: Mounting The Device

    125 mm (4.92") deep in the load-bearing concrete. Excess lengths must be shortened accordingly or, if necessary in case of deeper floor an- chorages, replaced with equivalent mounting anchors. UL thread length from top edge of finished floor Copyright © 2020, Diebold Nixdorf 4-15 01750334552E...
  • Page 67: Illustration 4-8 Installation With Mounting Anchors-Marking Out Bore Holes

    NOTE Do not drill directly through the safe’s floor mounting holes. Move the system to protect it from drilling dust Drill the 4 bore holes (1). Illustration 4-9: Installation with mounting anchors—Drilling bore holes Copyright © 2020, Diebold Nixdorf 4-16 01750334552E...
  • Page 68: Illustration 4-10 Installation With Mounting Anchors-Aligning The System

    Illustration 4-10: Installation with mounting anchors—Aligning the system Secure the system with 4 mounting anchors (1). NOTE Tighten the nuts of the mounting anchors to at least 180Nm. Illustration 4-11: Installation with mounting anchors— Secur- ing the system Copyright © 2020, Diebold Nixdorf 4-17 01750334552E...
  • Page 69 Installation Seal the lower edges of the safe all around with silicone (1). Illustration 4-12: Seal the lower edges of the safe Copyright © 2020, Diebold Nixdorf 4-18 01750334552E...
  • Page 70: Installation Without Frame

    Installation without frame The system can either be installed free-standing in the room, in front of a wall or in the recess of a room. Illustration 4-13: DN Series 100D FL, free-standing installation Putting into service The service technician will connect the power and data cables.
  • Page 71: Access The Relay Panel For External Features (Frontload)

    (3). NOTE When the connectors have been inserted and/or removed, the relay panel for external fea- tures must be rotated back into position and secured with the previously removed screw. Copyright © 2020, Diebold Nixdorf 4-20 01750334552E...
  • Page 72: Installing The 'Remote Status Indicator

    (3.98" x 1.8" x 1.06") Phillips screws SPAX 2.5 x 20 (countersunk head) Fixings Ø 4 mm (0.16") NOTE The enclosed mounting material is used to secure the indicator to masonry or wooden paneling. Copyright © 2020, Diebold Nixdorf 4-21 01750334552E...
  • Page 73 Only applicable for masonry: 5. Drill the required bore holes: Drilling depth: 20 mm (0.79"), hole diameter: 4 mm (0.16") and insert the supplied fixtures into the holes. Copyright © 2020, Diebold Nixdorf 4-22 01750334552E...
  • Page 74 8. Remove the required label (1) and ap- ply it to the space provided (2) on the standard remote status indicator. 9. Run the connection cable from the 'Remote Status Indicator' - Standard to the corresponding system. Copyright © 2020, Diebold Nixdorf 4-23 01750334552E...
  • Page 75 Connect the individual wires to the relay panel for external features as follows: 11 121314 Contact Designation Wire 'RED - 11 RED LIGHT' Wire 'WHITE - 12 YELLOW LIGHT' Wire 'GREEN - 13 GREEN LIGHT' Copyright © 2020, Diebold Nixdorf 4-24 01750334552E...
  • Page 76 Installation Wire 'BLACK - 14 GND' Close the system. Copyright © 2020, Diebold Nixdorf 4-25 01750334552E...
  • Page 77: Remote Status Indicator' - Audio

    (4.65" x 3.8" x 1.59") Phillips screws SPAX 4 x 40 (half-round screws) Fixings Ø 6 mm (0.24") NOTE The enclosed mounting material is used to secure the indicator to masonry or wooden paneling. Copyright © 2020, Diebold Nixdorf 4-26 01750334552E...
  • Page 78 CAUTION When drilling the mounting holes, take note of the constructional situation (energy, media line, etc.). NOTE Allow sufficient space to install the connecting cable on the right (approx. 20 mm (0.79")). Copyright © 2020, Diebold Nixdorf 4-27 01750334552E...
  • Page 79 6. Secure the lower part to the wall with the screws supplied and mount the front cover on the back panel as described above under removal. NOTE An adhesive label with the number 1 is applied at the factory. Copyright © 2020, Diebold Nixdorf 4-28 01750334552E...
  • Page 80 -12 YELLOW LIGHT (White -12 yellow light) GREEN -13 GREEN LIGHT (Green -13 green light) BLACK -14 GND (Black -14 ground) 5. Connect the individual wires to the relay panel for external features as follows: Copyright © 2020, Diebold Nixdorf 4-29 01750334552E...
  • Page 81 Installation Table 4-1: 11 121314 Contact Designation Wire ‘RED – 11 RED LIGHT’ Wire ‘WHITE – 12 YELLOW LIGHT’ Wire ‘GREEN – 13 GREEN LIGHT’ Wire ‘BLACK – 14 GND’ 6. Close the system. Copyright © 2020, Diebold Nixdorf 4-30 01750334552E...
  • Page 82: Shortening Cable Ends

    1. Use a screwdriver to press carefully through openings (1) and (2) until the tabs behind them disengage. 2. Remove the front cover (3) forwards. 3. Release the four terminals of the terminal strip (1) and remove the front cover. Copyright © 2020, Diebold Nixdorf 4-31 01750334552E...
  • Page 83 Marking on wires NOTE The wires used are marked with an adhesive label at the cable end as follows: - RED LIGHT (Red - red light) WHITE - YELLOW LIGHT (White - yellow light) Copyright © 2020, Diebold Nixdorf 4-32 01750334552E...
  • Page 84 Wire ‘RED – RED LIGHT’ Wire ‘WHITE – YELLOW LIGHT’ Wire ‘GREEN – GREEN LIGHT’ Wire ‘BLACK – GND’ 11. Press the front cover onto the lower section. Ensure that no wires are damaged in the process. Copyright © 2020, Diebold Nixdorf 4-33 01750334552E...
  • Page 85 4. Release the four terminals of the terminal strip and disconnect the cable from the terminal strip (1). 5. Remove the connecting cable with the spacer from cable guide (2). Copyright © 2020, Diebold Nixdorf 4-34 01750334552E...
  • Page 86 The wires used are marked with an adhesive label at the cable end as follows: - RED LIGHT (Red - red light) WHITE - YELLOW LIGHT (White - yellow light) GREEN - GREEN LIGHT (Green - green light) BLACK - GND (Black - ground) Copyright © 2020, Diebold Nixdorf 4-35 01750334552E...
  • Page 87 Wire ‘GREEN – GREEN LIGHT’ Wire ‘BLACK – GND’ 12. Press the connecting cable with the spacer into the cable guide (2). 13. Mount the board and the back panel as described above under removal. Copyright © 2020, Diebold Nixdorf 4-36 01750334552E...
  • Page 88: Appendix

    Is the load-carrying capacity of the floor sufficient according to the installation docu- mentation? Is there floor heating in the installation area? Are there cavities in the installation area (cable duct, raised floor)? Is the operation and maintenance space sufficient? Copyright © 2020, Diebold Nixdorf 01750334552E...
  • Page 89 Is the paper and money ready for start-up? Have you discussed the diameter of the hole that is to be drilled and the fixing to be used for the tear-off sensor with the local alarm provider? Copyright © 2020, Diebold Nixdorf 01750334552E...
  • Page 90 Appendix Diameter? ____________ Fixing to be used? ____________ Copyright © 2020, Diebold Nixdorf 01750334552E...
  • Page 91 Are there mats or grates at the entrance? Floating materials on the path of transport (please check off) Screed / rough concrete Carpet Raised floor Marble floor Tiles Other Checked by customer: Checked by installation technician: Notes concerning installation preparation Copyright © 2020, Diebold Nixdorf 01750334552E...
  • Page 92: Technical Data

    Type of system connection (wall Country-specific safety plug Country-specific safety plug outlet)*: Fuse: 20 A automatic circuit breaker 16 A automatic circuit breaker Degree of protection according to IP X0 IP X0 EN 60529: Copyright © 2020, Diebold Nixdorf 01750334552E...
  • Page 93 Surface load: CEN I safe 4-Cassette 396 kg System weight: 12.4 kN/m² Surface load: * The weight specifications indicate the empty weight of the system and the installation version free- standing in the room. Copyright © 2020, Diebold Nixdorf 01750334552E...
  • Page 94: Environmental Conditions

    (e.g. soundproof cabinets, etc.) These must comply with the environmental conditions that apply to the specific system (see above) and the maintenance spaces (see chapter "Planning the installation", section "Space required for operation and maintenance"). Copyright © 2020, Diebold Nixdorf 01750334552E...
  • Page 95: Compliance With Standards And Approvals

    Voltage Directive 2014/35/EU. Certification for data transmission The certification number or CE mark of the data transmission module (if available) is attached directly to the DT card or to the housing of the system unit. Copyright © 2020, Diebold Nixdorf 01750334552E...
  • Page 96: Environmental Protection

    Please observe the respective national regulations with regard to the disposal of electrical equipment. Electrical equipment should not be disposed of as normal municipal waste within the EU (crossed-out wheeled bin symbol). Copyright © 2020, Diebold Nixdorf 01750334552E...
  • Page 97 Appendix For information regarding the possible repurchase of used equipment, please contact: contact.remarketing@dieboldnixdorf.com Copyright © 2020, Diebold Nixdorf 5-10 01750334552E...
  • Page 98 DIEBOLD NIXDORF 5995 Mayfair Road | North Canton, OH 44720 | United States © 2020 Diebold Nixdorf, Incorporated. All Rights Reserved.
