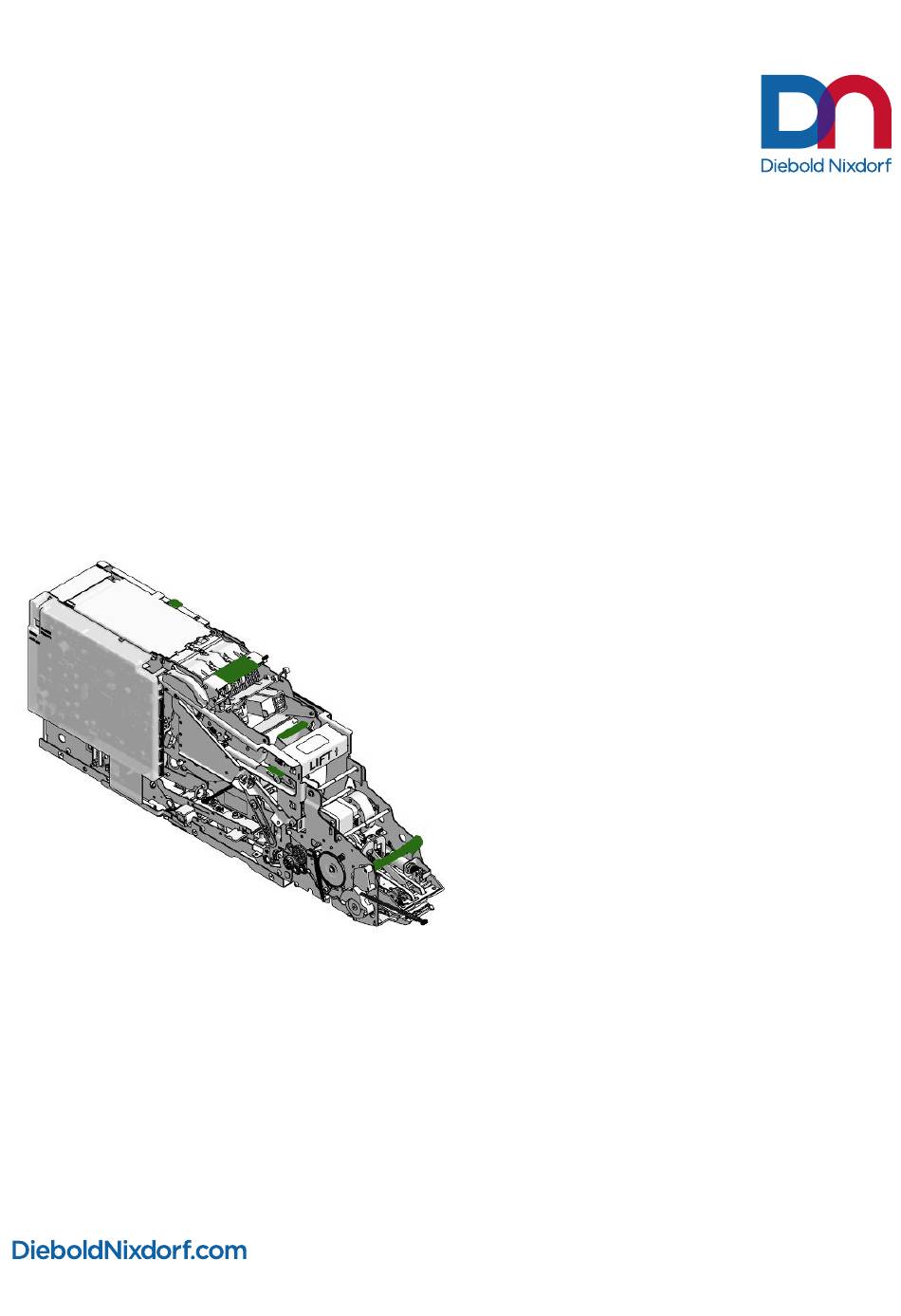

  • Page 1 DN Series™ Check Deposit Module Operator Manual 01750333061 A...
  • Page 2 This document and the information contained herein are provided AS IS AND WITHOUT WAR- RANTY. In no event shall Diebold Nixdorf or its suppliers be liable for any special, indirect, or consequential damages of any nature resulting from the use of information in this manual. The in- formation contained in this document is subject to change without notice.
  • Page 3: Table Of Contents

    4 Supplies ............................4-1 List of Figures Figure 1-1 DN ™Series Check Deposit Module (Bin Side) ............Figure 1-2 DN Series™ Check Deposit Module (PBCA Side)........... Figure 3-1 Storage Bin....................... Figure 3-2 Green Tab for the Exception Bin ................Figure 3-3 Input/Output Assembly .....................
  • Page 4: Introduction

    1 Introduction Introduction The DN Series™ check deposit module (Figure 1-1 and Figure 1-2) accepts a stack of up to 30 docu- ments and provides MICR data and image of each document to the banking network. Documents can be inserted face up or face down, with the short edge first.
  • Page 5: Information In This Manual

    Introduction Figure 1-2: DN Series™ Check Deposit Module (PBCA Side) Information in this Manual This manual provides service and maintenance procedures for the check deposit module. Refer to the operating guide for the system for information about other areas of the system.
  • Page 6 The check deposit module might have any of the following warning or caution labels. Strictly observe the following safety concerns to reduce the risk of severe personal injury, or death. Copyright 2019 Diebold Nixdorf 01750333061 A...
  • Page 7: Signs, Labels And Symbols

    Warning of Warning of feed risk laser beam cut injuries obstacles in the head area Table 1-2: Used mandatory signs Mandatory signs hearing protection protection eyewear safety footwear protective gloves Pull Read mains plug manual Copyright 2019 Diebold Nixdorf 01750333061 A...
  • Page 8: General Safety Instructions For The Component

    Repair work on the system or on the components may be carried out only by authorized specialist staff. Unauthorized opening of the system or repair work carried out improperly could result in considerable danger to the user. In case of noncompliance, excludes all lia- bility. Copyright 2019 Diebold Nixdorf 01750333061 A...
  • Page 9: Maintenance

    Remove loose clothing or jewelry that can become jammed in the equipment. Never insert screwdrivers, scissors, pens, or other instruments into the check deposit module. Copyright 2019 Diebold Nixdorf 01750333061 A...
  • Page 10: Checking The Print Quality

    Lock the storage bin (the lock locks both the storage bin and the exception bin). Return the system to consumer operation. NOTE If the storage bin door is not closed, four long beeps will sound until the door of the bin is closed. Copyright 2019 Diebold Nixdorf 01750333061 A...
  • Page 11 Maintenance Figure 3-1: Storage Bin Storage bin lock Storage bin door lowered Documents in storage bin Storage bin release tab Copyright 2019 Diebold Nixdorf 01750333061 A...
  • Page 12: Clearing A Jam

    Using the green tab, lift up the cover of the exception bin (Figure 3-2). Remove any documents. Close the cover of the exception bin. Lock the exception bin. NOTE If the exception bin is not closed, four long beeps will sound until the exception bin is closed. Copyright 2019 Diebold Nixdorf 01750333061 A...
  • Page 13: Figure 3-2 Green Tab For The Exception Bin

    Maintenance Figure 3-2: Green Tab for the Exception Bin Exception bin cover Green tab Exception bin lock (same lock as storage bin) Exception bin Copyright 2019 Diebold Nixdorf 01750333061 A...
  • Page 14 Refer to your system operating manual to access the check deposit module. Lift the green handle to open the input/output assembly (Figure 3-3). Remove any jammed documents. Close the input/output assembly. Figure 3-3: Input/Output Assembly Check here for jams Green handle Check module Input/output assembly Copyright 2019 Diebold Nixdorf 01750333061 A...
  • Page 15: Figure 3-4 Open The Escrow Turn

    Lift the green tab to lift up the escrow turn cover (Figure 3-4). Remove jammed documents from the escrow turn. Close and latch the escrow cover. Figure 3-4: Open the Escrow Turn Check for jams here Open escrow turn cover Lift green tab on escrow turn Copyright 2019 Diebold Nixdorf 01750333061 A...
  • Page 16 If the escrow pivot area is closed but is not secured, four long beeps will sound until the escrow pivot area is secured. If the escrow pivot area is open but the module is docked, four long beeps will sound until the stamp/escrow pivot area is closed and secured. Copyright 2019 Diebold Nixdorf 01750333061 A...
  • Page 17 Maintenance Figure 3-5: Escrow Assembly Escrow assembly Lift green tab on escrow assembly Check for jams here (under vertical transport) Copyright 2019 Diebold Nixdorf 01750333061 A...
  • Page 18: Figure 3-6 Positions Of The Escrow Assembly Kickstand

    Maintenance Figure 3-6: Positions of the Escrow Assembly Kickstand Escrow assembly half open Kick stand position 1 Escrow assembly fully open Kick stand position 2 Copyright 2019 Diebold Nixdorf 3-10 01750333061 A...
  • Page 19: Figure 3-7 Center And Deskew (Cds) Assembly Raised

    Figure 3-7: Center and Deskew (CDS) Assembly Raised Hold escrow assembly at touch point Prop up the escrow assembly with the kickstand CDS upper platen automatically raised Look for jams here in the lower center and deskew assembly Copyright 2019 Diebold Nixdorf 3-11 01750333061 A...
  • Page 20: Figure 3-8 Empty Escrow Roll Button

    Collect the checks as they are presented. If the escrow turn cover is not open, the checks will be collected in the exception bin. Figure 3-8: Empty Escrow Roll Button Unload escrow button on main PCBA Escrow turn cover Copyright 2019 Diebold Nixdorf 3-12 01750333061 A...
  • Page 21: Inkjet Printer Cartridge

    Insert the locating pins of the new printer cartridge (Figure 3-9), print end first, into the holder holes. Snap the cartridge into place. Make sure the printhead is firmly seated. Perform a scan document test and select the print option to check the print quality. Copyright 2019 Diebold Nixdorf 3-13 01750333061 A...
  • Page 22 Observe the following storage specifications to ensure that the print cartridge survives under brief expo- sure to extreme conditions. Once it is returned to the operating environment, the print cartridge should function normally. Diebold Nixdorf recommends storing the cartridge at room temperature, if possible. NOTE Exposure to higher or lower temperatures, or longer exposure times near these lim- its, reduces the reliability of the print cartridge.
  • Page 23: Beep Codes For Error Conditions

    (S4) cover to be open. Once recognized, notes will be presented from the es- crow, one at a time. Final document removed 1 Beeps once after the fi- nal document has been removed. Copyright 2019 Diebold Nixdorf 3-15 01750333061 A...
  • Page 24: Supplies

    4 Supplies For best performance, you should only use supplies purchased from Diebold Nixdorf. Supplies and ac- cessories are fully guaranteed. Shop for media and consumables through customer support at Diebold- Nixdorf.com. Use the following supplies to service the check deposit module.
