2. Mounting Instructions LogicSP

Note: This section uses the LiftBox™ system as an example to illustrate placement and
installation of the control box.
The LogicSP control box, of course, is suitable for controlling any TV-Set Carrier system
with comparable functionality and technical specifications.
Mount the LogicSP motor control onto the backplane of the LiftBox™ in the control box
compartment (upper left-hand side) as shown in the images below.

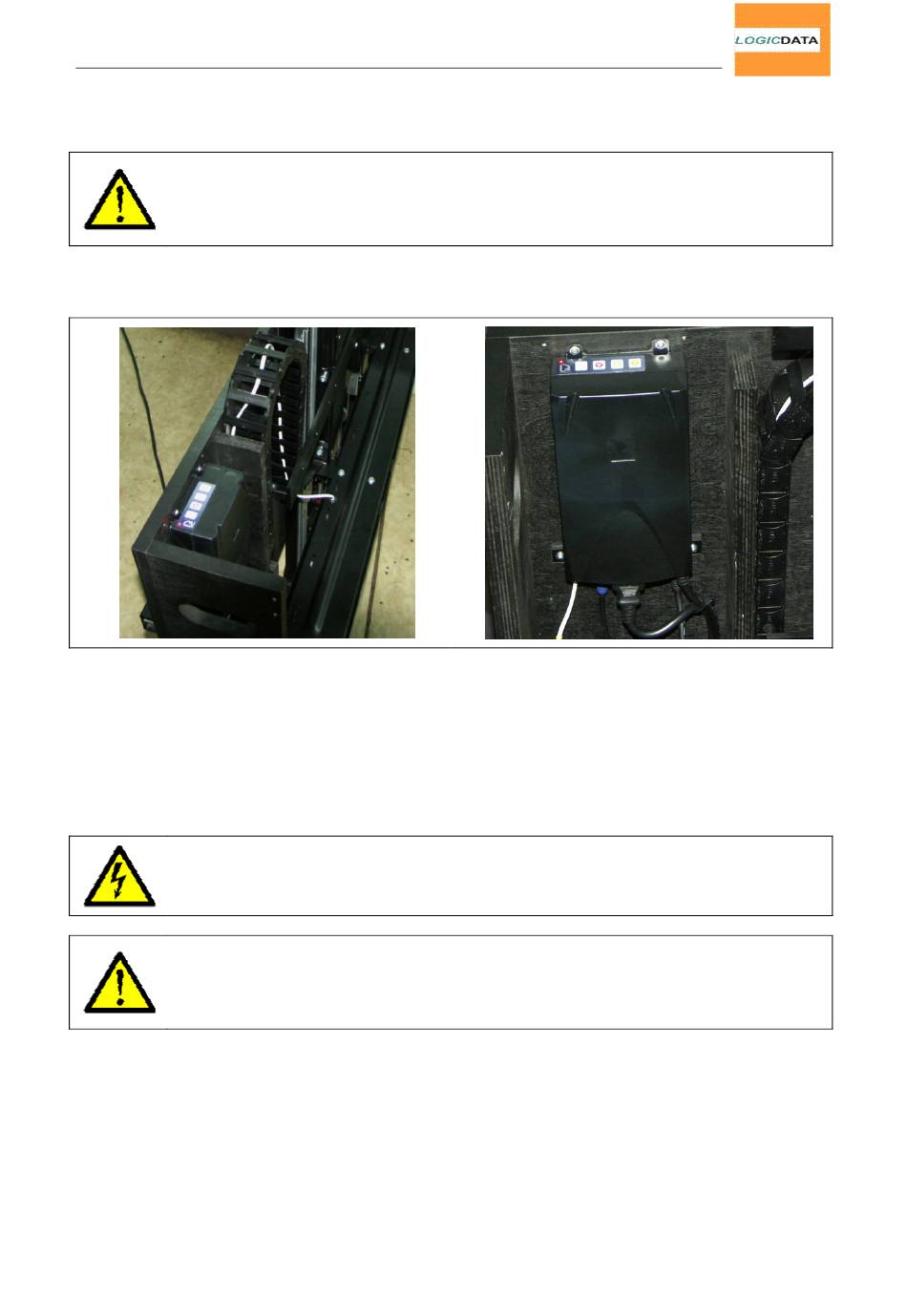

Fig. 2 – Placement of the LogicSP Control Box in the LiftBox™ System
Following tools are needed for installation:
1 screw driver for recessed head screws
•
1 pencil
•
1 electrical drill (for pre-drilling holes)
•
4 screws (slotted pan head screw DIN7981 3.9mm x 22mm recommended for wooden
•
LiftBox™ backplane)
Caution: Unplug the power cord while mounting the LogicSP control box!
Note: We recommend you use the drill template to speed up installation. You can find
the drill template in the Appendix (page 28).
If you choose not to use the drill template, carefully follow the mounting instructions
below.
