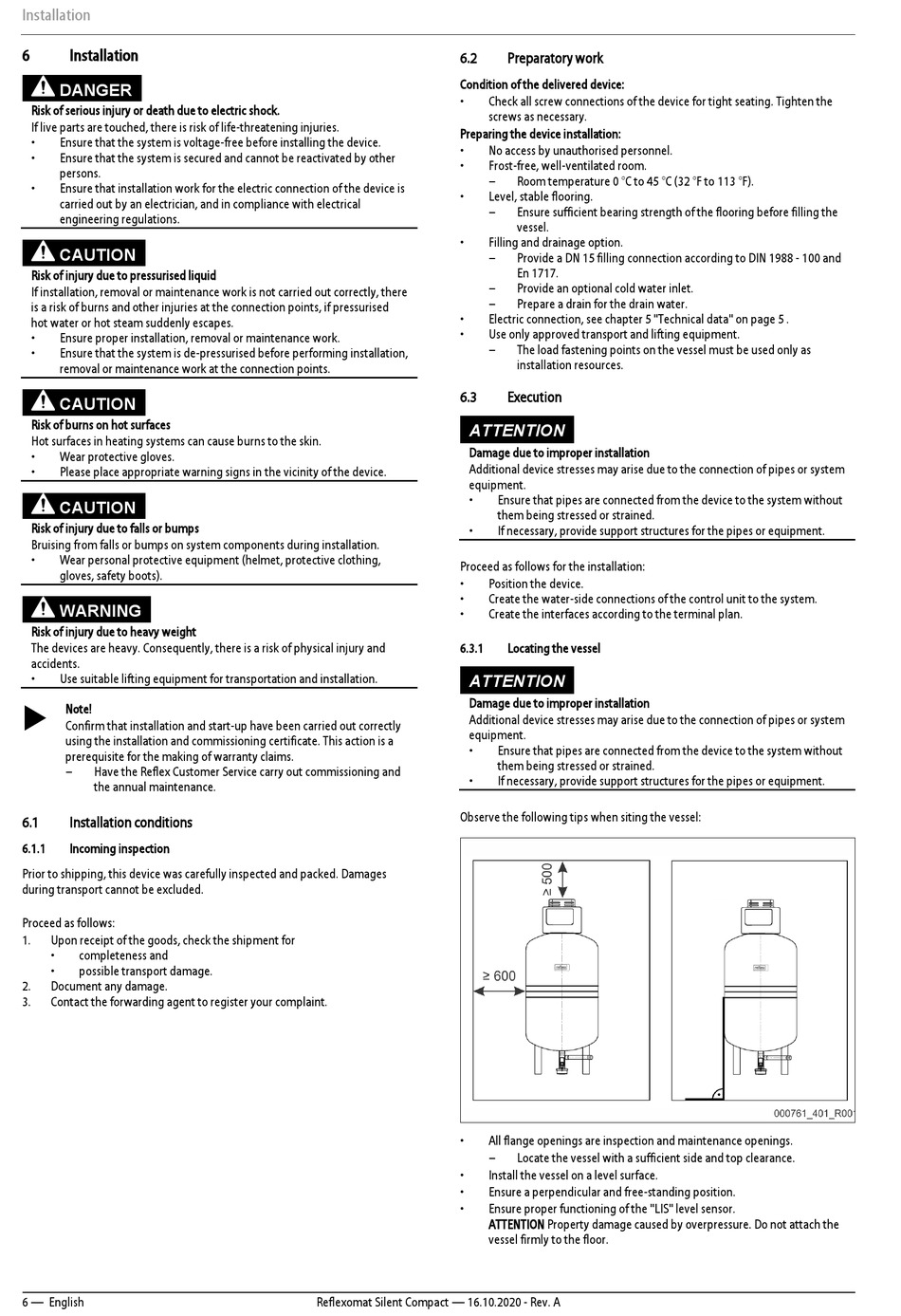

Installation
6
Installation
DANGER
Risk of serious injury or death due to electric shock.
If live parts are touched, there is risk of life-threatening injuries.
•
Ensure that the system is voltage-free before installing the device.
•
Ensure that the system is secured and cannot be reactivated by other
persons.
•
Ensure that installation work for the electric connection of the device is
carried out by an electrician, and in compliance with electrical
engineering regulations.
CAUTION
Risk of injury due to pressurised liquid
If installation, removal or maintenance work is not carried out correctly, there
is a risk of burns and other injuries at the connection points, if pressurised
hot water or hot steam suddenly escapes.
•
Ensure proper installation, removal or maintenance work.
•
Ensure that the system is de-pressurised before performing installation,
removal or maintenance work at the connection points.
CAUTION
Risk of burns on hot surfaces
Hot surfaces in heating systems can cause burns to the skin.
•
Wear protective gloves.
•
Please place appropriate warning signs in the vicinity of the device.
CAUTION
Risk of injury due to falls or bumps
Bruising from falls or bumps on system components during installation.
•
Wear personal protective equipment (helmet, protective clothing,
gloves, safety boots).
WARNING
Risk of injury due to heavy weight
The devices are heavy. Consequently, there is a risk of physical injury and
accidents.
•
Use suitable lifting equipment for transportation and installation.
Note!
Confirm that installation and start-up have been carried out correctly
using the installation and commissioning certificate. This action is a
prerequisite for the making of warranty claims.
–
Have the Reflex Customer Service carry out commissioning and
the annual maintenance.
6.1
Installation conditions
6.1.1
Incoming inspection
Prior to shipping, this device was carefully inspected and packed. Damages
during transport cannot be excluded.
Proceed as follows:
1.
Upon receipt of the goods, check the shipment for
•
completeness and
•
possible transport damage.
2.
Document any damage.
3.
Contact the forwarding agent to register your complaint.
6 — English
6.2
Condition of the delivered device:
•
Preparing the device installation:
•
•
•
•
•
•
6.3
ATTENTION
Damage due to improper installation
Additional device stresses may arise due to the connection of pipes or system
equipment.
•
•
Proceed as follows for the installation:
•
•
•
6.3.1
ATTENTION
Damage due to improper installation
Additional device stresses may arise due to the connection of pipes or system
equipment.
•
•
Observe the following tips when siting the vessel:
•
•
•
•
Reflexomat Silent Compact — 16.10.2020 - Rev. A
Preparatory work
Check all screw connections of the device for tight seating. Tighten the
screws as necessary.
No access by unauthorised personnel.
Frost-free, well-ventilated room.
–
Room temperature 0 °C to 45 °C (32 °F to 113 °F).
Level, stable flooring.
–
Ensure sufficient bearing strength of the flooring before filling the
vessel.
Filling and drainage option.
–
Provide a DN 15 filling connection according to DIN 1988 - 100 and
En 1717.
–
Provide an optional cold water inlet.
–
Prepare a drain for the drain water.
Electric connection, see chapter 5 "Technical data" on page 5 .
Use only approved transport and lifting equipment.
–
The load fastening points on the vessel must be used only as
installation resources.
Execution
Ensure that pipes are connected from the device to the system without
them being stressed or strained.
If necessary, provide support structures for the pipes or equipment.
Position the device.
Create the water-side connections of the control unit to the system.
Create the interfaces according to the terminal plan.
Locating the vessel
Ensure that pipes are connected from the device to the system without
them being stressed or strained.
If necessary, provide support structures for the pipes or equipment.
All flange openings are inspection and maintenance openings.
–
Locate the vessel with a sufficient side and top clearance.
Install the vessel on a level surface.
Ensure a perpendicular and free-standing position.
Ensure proper functioning of the "LIS" level sensor.
ATTENTION Property damage caused by overpressure. Do not attach the
vessel firmly to the floor.
