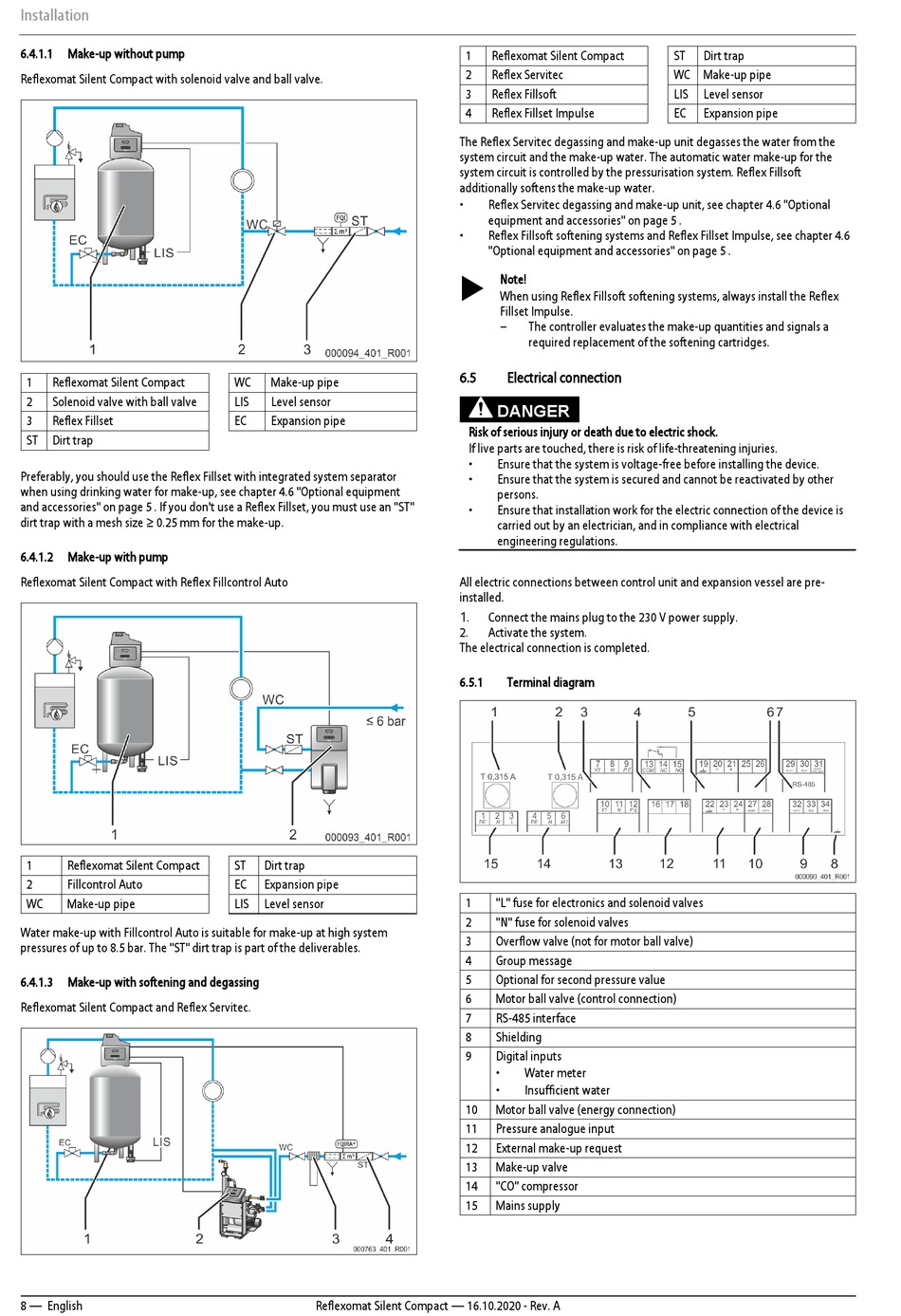

Installation
6.4.1.1 Make-up without pump
Reflexomat Silent Compact with solenoid valve and ball valve.
1 Reflexomat Silent Compact
2 Solenoid valve with ball valve
3 Reflex Fillset
ST Dirt trap
Preferably, you should use the Reflex Fillset with integrated system separator
when using drinking water for make-up, see chapter 4.6 "Optional equipment
and accessories" on page 5 . If you don't use a Reflex Fillset, you must use an "ST"
dirt trap with a mesh size ≥ 0.25 mm for the make-up.
6.4.1.2 Make-up with pump
Reflexomat Silent Compact with Reflex Fillcontrol Auto
1 Reflexomat Silent Compact
2 Fillcontrol Auto
WC Make-up pipe
Water make-up with Fillcontrol Auto is suitable for make-up at high system
pressures of up to 8.5 bar. The "ST" dirt trap is part of the deliverables.
6.4.1.3 Make-up with softening and degassing
Reflexomat Silent Compact and Reflex Servitec.
8 — English
WC Make-up pipe
LIS Level sensor
EC Expansion pipe
ST Dirt trap
EC Expansion pipe
LIS Level sensor
Reflexomat Silent Compact — 16.10.2020 - Rev. A
1 Reflexomat Silent Compact
2 Reflex Servitec
3 Reflex Fillsoft
4 Reflex Fillset Impulse
The Reflex Servitec degassing and make-up unit degasses the water from the
system circuit and the make-up water. The automatic water make-up for the
system circuit is controlled by the pressurisation system. Reflex Fillsoft
additionally softens the make-up water.
• Reflex Servitec degassing and make-up unit, see chapter 4.6 "Optional
equipment and accessories" on page 5 .
• Reflex Fillsoft softening systems and Reflex Fillset Impulse, see chapter 4.6
"Optional equipment and accessories" on page 5 .

Note!
When using Reflex Fillsoft softening systems, always install the Reflex
Fillset Impulse.
– The controller evaluates the make-up quantities and signals a
required replacement of the softening cartridges.
6.5

Electrical connection

DANGER
Risk of serious injury or death due to electric shock.
If live parts are touched, there is risk of life-threatening injuries.
• Ensure that the system is voltage-free before installing the device.
• Ensure that the system is secured and cannot be reactivated by other
persons.
• Ensure that installation work for the electric connection of the device is
carried out by an electrician, and in compliance with electrical
engineering regulations.
All electric connections between control unit and expansion vessel are pre-
installed.
1.
Connect the mains plug to the 230 V power supply.
2. Activate the system.
The electrical connection is completed.
6.5.1

Terminal diagram

1 "L" fuse for electronics and solenoid valves
2 "N" fuse for solenoid valves
3 Overflow valve (not for motor ball valve)
4 Group message
5 Optional for second pressure value
6 Motor ball valve (control connection)
7 RS-485 interface
8 Shielding
9 Digital inputs
• Water meter
• Insufficient water
10 Motor ball valve (energy connection)
11 Pressure analogue input
12 External make-up request
13 Make-up valve
14 "CO" compressor
15 Mains supply
ST Dirt trap
WC Make-up pipe
LIS Level sensor
EC Expansion pipe
