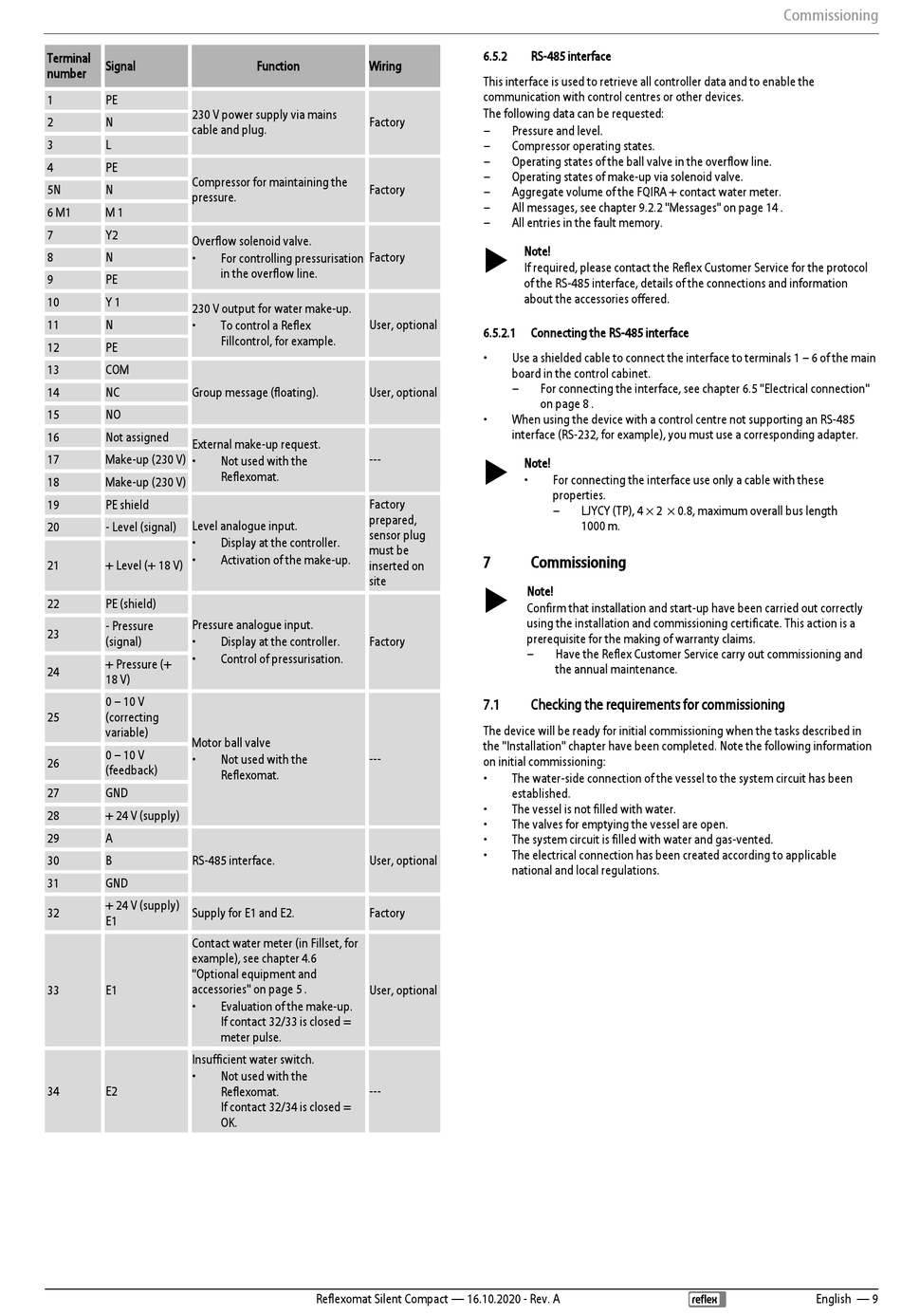

Rs-485 Interface; Commissioning; Checking The Requirements For Commissioning - Reflex Reflexomat Silent Compact Operating Manual

Terminal
Signal
number
1 PE
230 V power supply via mains
2 N
cable and plug.
3 L
4 PE
Compressor for maintaining the
5N N
pressure.
6 M1 M 1
7 Y2
Overflow solenoid valve.
8 N
•
9 PE
10 Y 1
230 V output for water make-up.
11 N
•
12 PE
13 COM
14 NC Group message (floating).
15 NO
16 Not assigned
External make-up request.
17 Make-up (230 V)
•
18 Make-up (230 V)
19 PE shield
Level analogue input.
20 - Level (signal)
•
•
21 + Level (+ 18 V)
22 PE (shield)
Pressure analogue input.
- Pressure
23
(signal) •
•
+ Pressure (+
24
18 V)
0 – 10 V
25 (correcting
variable)
Motor ball valve
0 – 10 V
•
26
(feedback)
27 GND
28 + 24 V (supply)
29 A
30 B

RS-485 interface.

31 GND
+ 24 V (supply)
32 Supply for E1 and E2.
E1
Contact water meter (in Fillset, for
example), see chapter 4.6
"Optional equipment and
accessories" on page 5 .
33 E1
•
Insufficient water switch.
•
34 E2
Function Wiring
Factory
Factory
Factory
For controlling pressurisation
in the overflow line.
User, optional
To control a Reflex
Fillcontrol, for example.
User, optional
---
Not used with the
Reflexomat.
Factory
prepared,
sensor plug
Display at the controller.
must be
Activation of the make-up.
inserted on
site
Display at the controller.
Factory
Control of pressurisation.
---
Not used with the
Reflexomat.
User, optional
Factory
User, optional
Evaluation of the make-up.
If contact 32/33 is closed =
meter pulse.
Not used with the
---
Reflexomat.
If contact 32/34 is closed =
OK.
Reflexomat Silent Compact — 16.10.2020 - Rev. A
6.5.2 RS-485 interface
This interface is used to retrieve all controller data and to enable the
communication with control centres or other devices.
The following data can be requested:
– Pressure and level.
– Compressor operating states.
– Operating states of the ball valve in the overflow line.
– Operating states of make-up via solenoid valve.
– Aggregate volume of the FQIRA + contact water meter.
– All messages, see chapter 9.2.2 "Messages" on page 14 .
– All entries in the fault memory.

Note!
If required, please contact the Reflex Customer Service for the protocol
of the RS-485 interface, details of the connections and information
about the accessories offered.
6.5.2.1 Connecting the RS-485 interface
• Use a shielded cable to connect the interface to terminals 1 – 6 of the main
board in the control cabinet.
– For connecting the interface, see chapter 6.5 "Electrical connection"
on page 8 .
• When using the device with a control centre not supporting an RS-485
interface (RS-232, for example), you must use a corresponding adapter.
 Note!
• For connecting the interface use only a cable with these
properties.
– LJYCY (TP), 4 × 2 × 0.8, maximum overall bus length
1000 m.
7

Commissioning

 Note!
Confirm that installation and start-up have been carried out correctly
using the installation and commissioning certificate. This action is a
prerequisite for the making of warranty claims.
– Have the Reflex Customer Service carry out commissioning and
the annual maintenance.
7.1

Checking the requirements for commissioning

The device will be ready for initial commissioning when the tasks described in
the "Installation" chapter have been completed. Note the following information
on initial commissioning:
• The water-side connection of the vessel to the system circuit has been
established.
• The vessel is not filled with water.
• The valves for emptying the vessel are open.
• The system circuit is filled with water and gas-vented.
• The electrical connection has been created according to applicable
national and local regulations.
Commissioning
English — 9
