HODEDAH
Assembly Instructions
This instruction booklet contains important safety information, please read and keep for future reference.
ITEM # HID 33-D

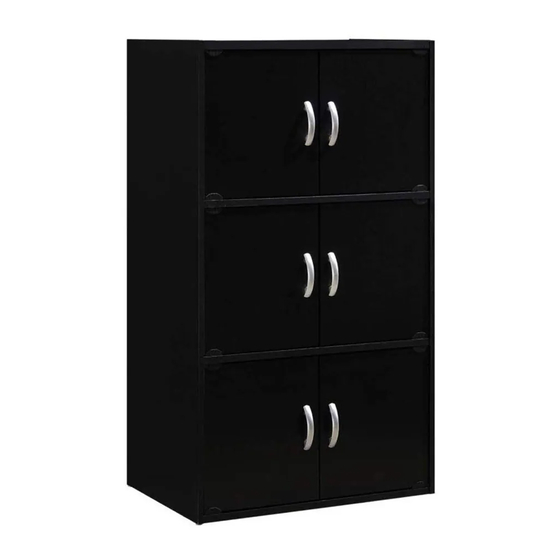

6 DOOR CABINET

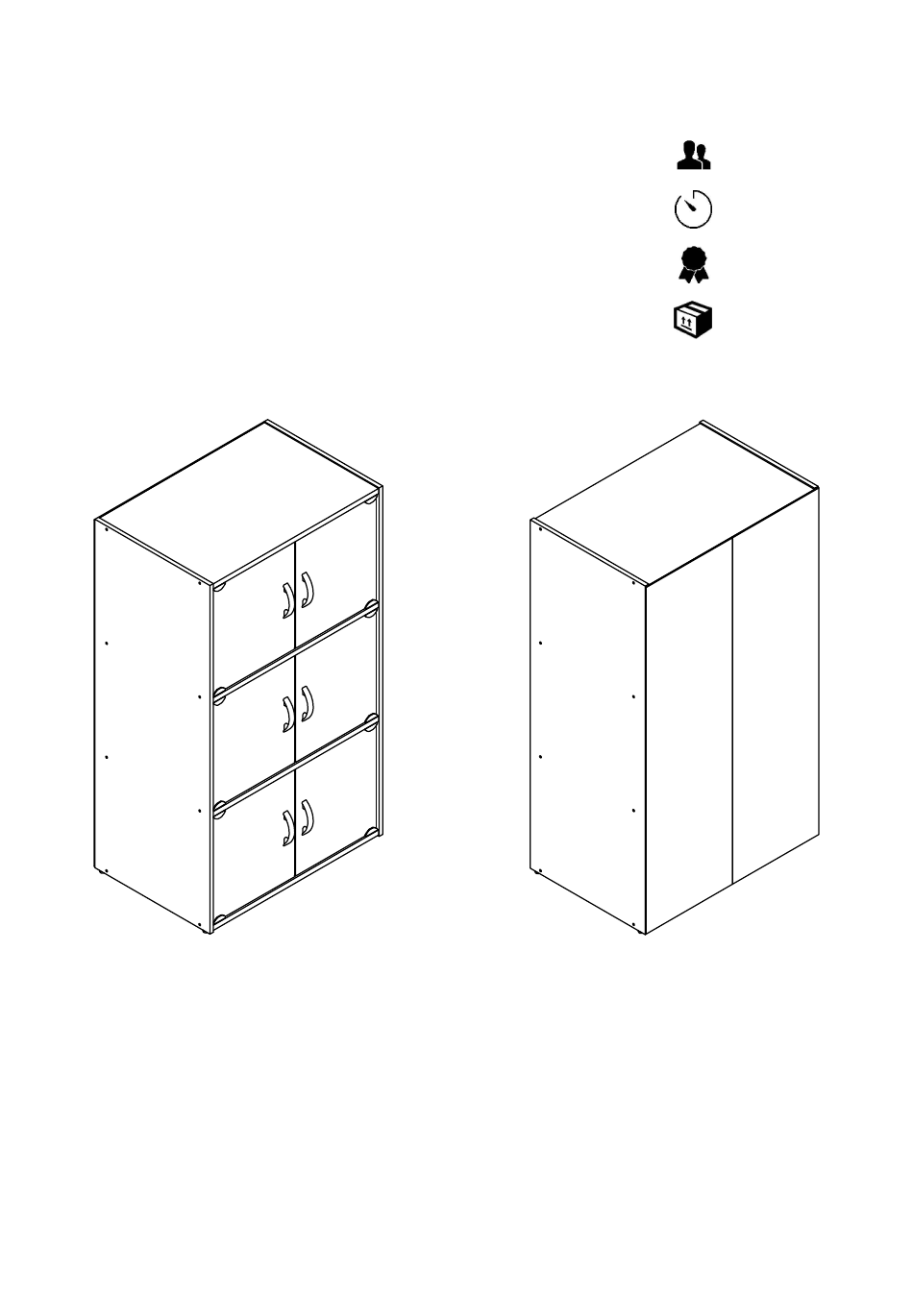

FRONT VIEW
Product Dimensions:
www.Hodedah.com
®
Height 40.8'' x Width 23.3'' x Depth 15.5''
Weight Capacity per shelf: 25 Ibs
1 person
60 mins
1 YR LTD
1 Box
BACK VIEW
1 |
Page
Advertisement
Table of Contents
Related Manuals for Hodedah HID 33-D
Summary of Contents for Hodedah HID 33-D
- Page 1 HODEDAH ® Assembly Instructions 1 person This instruction booklet contains important safety information, please read and keep for future reference. 60 mins ITEM # HID 33-D 1 YR LTD 6 DOOR CABINET 1 Box FRONT VIEW BACK VIEW Product Dimensions: Height 40.8'' x Width 23.3'' x Depth 15.5''...
-
Page 2: Warranty
FREE of charge within ONE YEAR of purchase! WARRANTY Hodedah warrants this product to be free from defects in materials and workmanship and agrees to remedy any such defect. This warranty covers one year from the date of original purchase. This is solely limited to replacement of defective parts and no assembly for labor is included. -
Page 3: Product Care And Maintenance
HODEDAH ® · Never open more than one drawer at a time. · The use of tip-over restraints may reduce but not eliminate the risk of tip-over. Let's get started… Helpful hints, read before beginning assembly · Make sure you receive all boxes. If your item is packed in one box, box count will read 1 of 1, likewise if your item is packed in two boxes, box count will read 1 of 2 and second box will read 2 of 2. -
Page 4: Hardware List
HODEDAH ® Hardware List ALLEN KEY M5 x 40mm M4 x 25mm JCBCW SCREW CSK SCREW M3.5 x 12mm PVC HANDLE DOOR HOLDER CSK SCREW AC58 - 64 (12mm) MAGNET PLATE NAIL ANTI-TIP KIT PVC NAIL Important 1. Before you throw the package, please use the Check Box to identify the parts and hardware to ensure that you have everything you need. -
Page 5: Part List
HODEDAH ® Part List Page www.Hodedah.com... - Page 6 HODEDAH ® The Breakdown Page www.Hodedah.com...
- Page 7 HODEDAH ® Step 1 PVC NAIL - Fix 4 x Pvc Nails (J) into panels (4) & (5) using a Hammer. Step 2 ALLEN KEY JCBCW M5 x 40mm SCREW - Attach panel (4) to panels (1) , (2) , (3).
- Page 8 HODEDAH ® Step 3 ALLEN KEY JCBCW M5 x 40mm SCREW - Attach panel (5) to panels (1) , (2) , (3). - Insert 8 x JCBCW Screw (B) to panel (5) and tighten with a Allen Key (A). Step 4 M3.5 x 12mm CSK SCREW...
-
Page 9: Final Step
HODEDAH ® Step 5 Almost there M4 x 25mm CSK SCREW AC58 - 100 - 64 - Attach Handle (E) to panels (6) & (7) with 12 x CSK Screw (C) using a Phillips head screwdriver. Step 6 Final step NAIL - Fix 30 x Nails (I) into panel (8) using a Hammer. - Page 10 HODEDAH ® FITTING OF ANTI-TIP SAFETY STRAP STEP 1: · Attach the mounting bracket a to the furniture in the solid part below the top panel a few inches away from the side of the unit. · Screw b through the smallest hole of a .
-
Page 11: Job Complete
HODEDAH ® Job Complete Enjoy & Thank you for purchasing from Hodedah! 11 | Page www.Hodedah.com...
