Predator Radar Installation Manual_V8_1_28_00

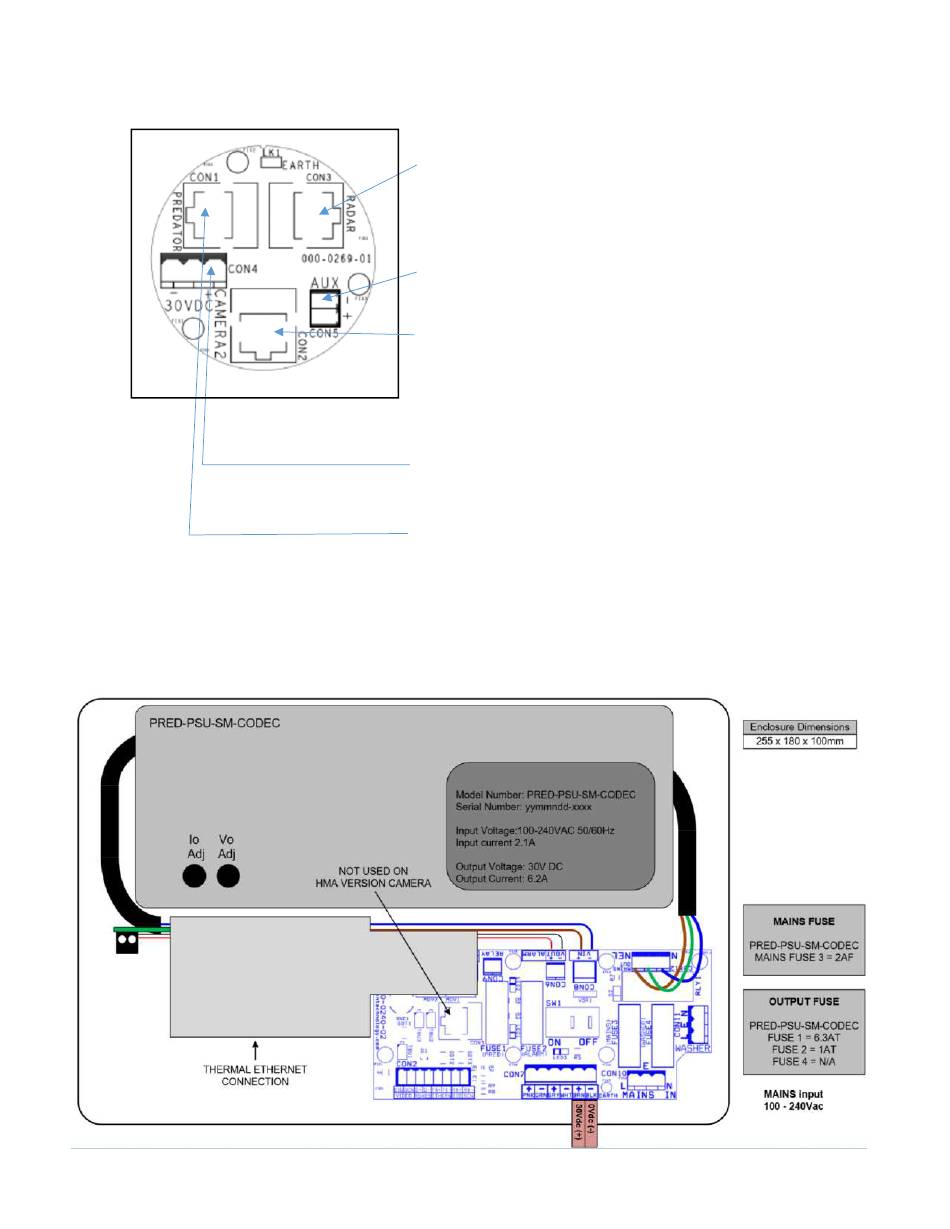

Predator Radar with thermal
Predator Radar with thermal PSU
POE/Ethernet connection:
Radar connect Ethernet cable to (CON3) for
Radar power and data connection.
Thermal camera connection
Connect coax to (CON5) for video if a thermal
camera present.
Connection camera 2
This Ethernet connection is for future use
(CON2)
Connect power to (CON4) 24VAC / 30VDC
Connect Ethernet cable to HD HMA Predator
connection board using a RJ45 connector
(CON1)
© 360 Vision Technology Ltd
Page 8 of 78
