Connections

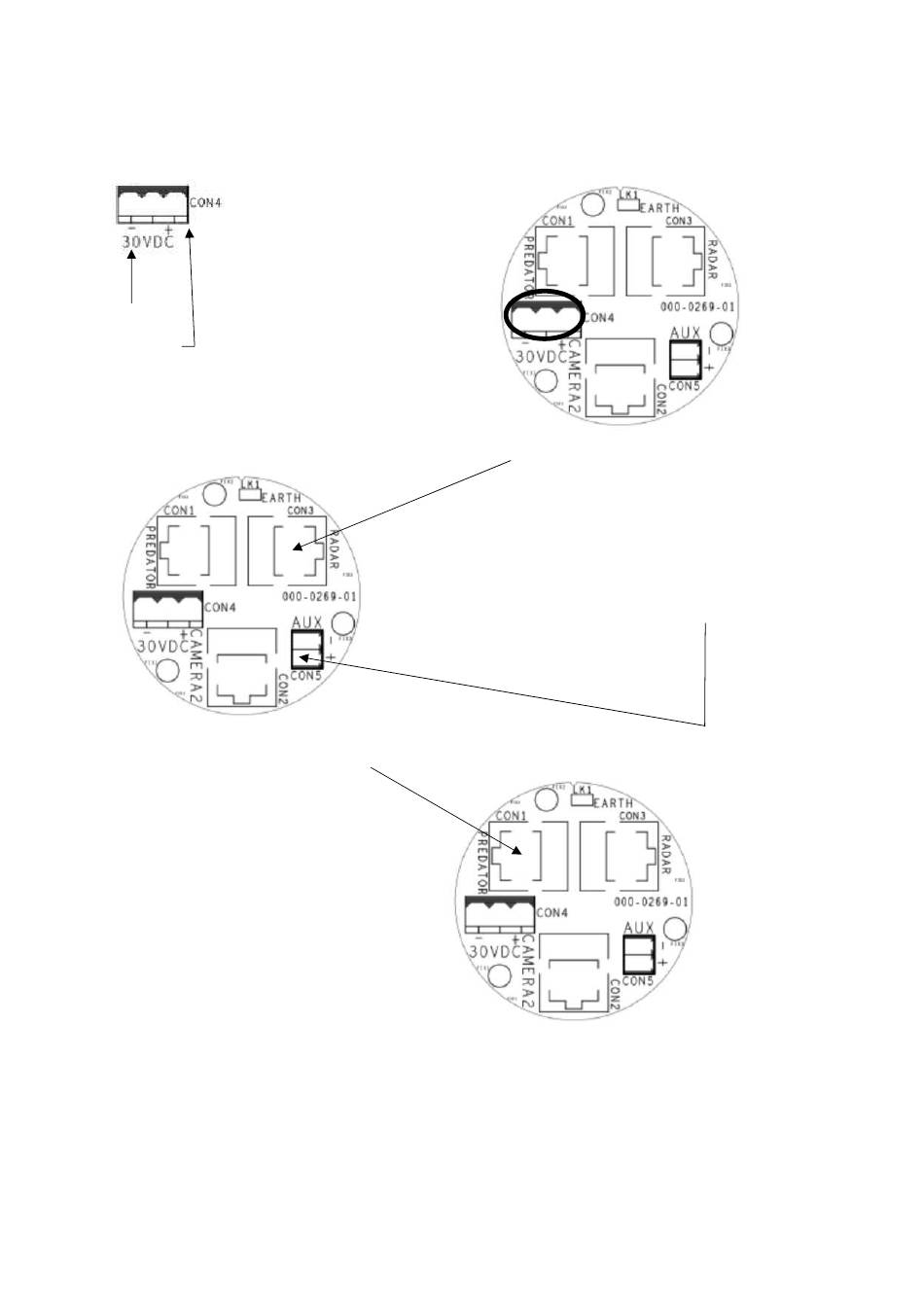

Power is connected from PSU to (CON4) as shown below for predator camera.
Power –
Power +
Connect POE Ethernet cable power source to (CON3)
Thermal Camera connect coax to (CON5)
Connect Ethernet cable to (CON1) to configure the Predator Camera.
© 360 Vision Technology Ltd
