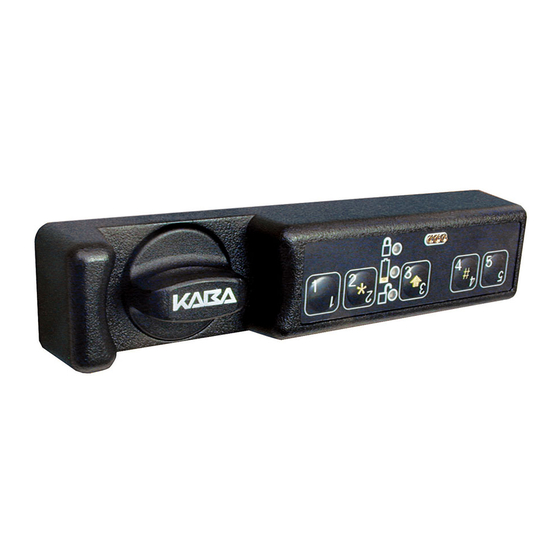

Kaba Mas UNICON CL Series Operating Instructions Manual
  1. Manuals
  2. Brands
  3. Kaba Mas Manuals
  4. Locks
  5. Unicon CL Series
  6. Operating instructions manual

Kaba Mas UNICON CL Series Operating Instructions Manual

Hide thumbs Also See for UNICON CL Series:
Table of Contents

Advertisement

Quick Links

Download this manual

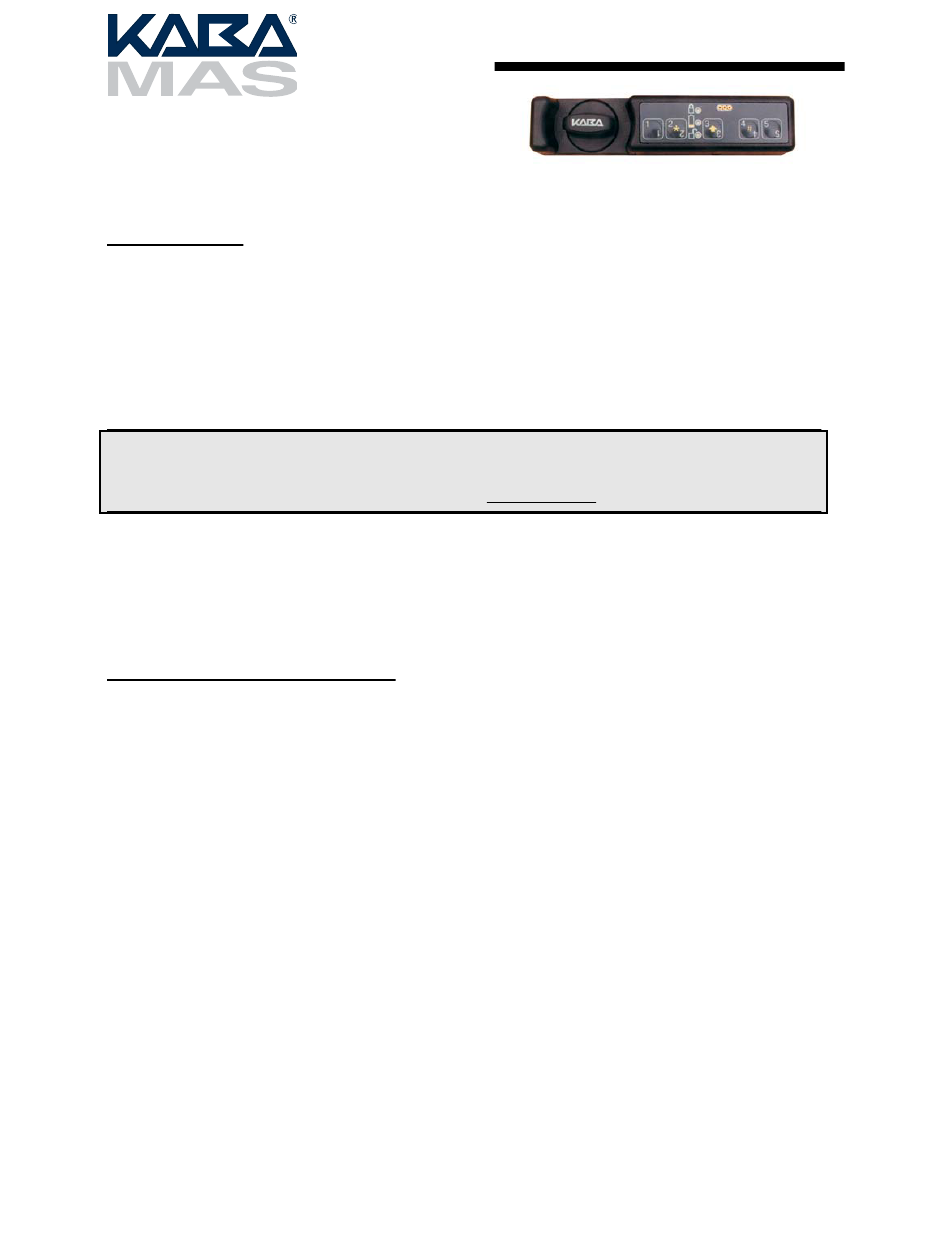

M
CL10
ODEL
A
DMINISTRATIVE
Lock Modes
A lock is shipped from the factory with default lock "setup" values and a pre-set PIN
for locking and unlocking the lock. This is referred to as Factory Mode.
The lock is shipped with a default factory Super Master User PIN that can be set
(i.e., changed) when the lock is in Factory Mode. Once the Super Master User PIN is
set, the Super Master User combination can be used to shelve the lock in the event
that the Master User combination is lost. Refer to the Super Master Operations
(Document # 3109.017) for more detail.
WARNING: The setting of the Super Master User PIN is optional, however, if you do
not set the Super Master User PIN before setting the
Super Master User capabilities will be permanently lost.
The lock is removed from Factory Mode when the Master User PIN gets changed.
To remove a lock from an operational mode, one can "shelve" the lock which places
it in Shelved Mode. Most lock values are returned to the factory default. Refer to the
Shelve Lock operation for more detail.
Personnel Classifications
There are three different classifications of lock personnel:
•
Master User - The
shelve the lock. There is a maximum of one
combination will also lock and unlock the lock.
•
Manager User - A user added by the Master User. A Manager User can lock and unlock
the lock. A Manager User can also retrieve reporting data from the lock if authorized to
do so by the Master User.
•
Lock User - A user who can take temporary ownership of a locker by setting a combina-
tion to lock and unlock the lock.
There can be a maximum of 126 users who can open this lock at specific times:
•
There can be a maximum of one Master User and 124 Manager Users, programmed
and capable of accessing the lock at any given time.
•
There can be a maximum of one Lock User (not including the Master or Manager users)
programmed and capable of accessing the lock at any given time.
Document Number 3110.017 Rev. A2 - 09/07
O
PERATING
Master
User performs the initial lock setup activities and can also
TM
UNICON
CL SERIES
I
NSTRUCTIONS
Master
Master
User per lock. The
User PIN, all
Master
User
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UNICON CL Series and is the answer not in the manual?

Questions and answers

Related Manuals for Kaba Mas UNICON CL Series

Summary of Contents for Kaba Mas UNICON CL Series

  • Page 1 UNICON CL SERIES CL10 ODEL DMINISTRATIVE PERATING NSTRUCTIONS Lock Modes A lock is shipped from the factory with default lock “setup” values and a pre-set PIN for locking and unlocking the lock. This is referred to as Factory Mode. The lock is shipped with a default factory Super Master User PIN that can be set (i.e., changed) when the lock is in Factory Mode.
  • Page 2 Access Combination Requirements A valid access combination allows a user to lock or unlock a lock. Master or Manager User Access Combination An access combination for the Master User and for Manager Users is eight digits long and consists of a 3-digit User ID + a 5-digit User PIN. Master or Manager User ID A User ID is a three-digit number that represents a user.

  • Page 3: Getting Started

    ETTING TARTED Lock Operating Conventions • The power source for the Unicon CL Lock Series is two CR-2 Lithium 3V batteries. • The lock is activated for operation when a keypad button is pressed. If any additional keystrokes for an operation are not completed within the allotted time of 15 seconds between keystrokes, operation abort is indicated by simulta- neous green and red flashes with a beep...

  • Page 4: Lock Responses

    Lock Responses • If sound is toggled “off”, no beeps will sound. • After each keystroke a green flash is displayed with a beep . If the lock does not respond, the key was not pressed properly. • After each accepted step of an operation, simultaneous green and red flashes display with a beep , prompting you to enter additional information for the next step of the operation.

  • Page 5: Lock Maintenance

    Lock Maintenance Once you have receive the “battery Low” indication of ten fast yellow flashes after a valid combination entry, you should change the batteries in a reasonable amount of time. Remove the two screws from the battery panel and then remove the panel.
  • Page 6 Unlock the Lock - Master/Manager Pre-Set Press and hold the key until the yellow light displays. Enter any valid three-digit User ID for the lock model followed by the default factory PIN for the User ID. ( For User ID 111 the default PIN is “12345”. For all other Users IDs the default PIN is “55255”.

  • Page 7: Lock Setup

    Unlock the Lock - Lock User Pre-Set Enter the default factory access combination of 5525 for the Lock User. If the combination is entered successfully, the lock displays one green flash with a beep to indicate that a valid combination has been entered. One long green flash displays with a beep to indicate that the motor has fired and...

  • Page 8: Toggle Sound On/Off

    Enter the three-digit Master User ID 111 followed by the default Master User PIN 12345. Enter the three-digit Master User ID 111 followed by the new Master User PIN. Enter the three-digit Master User ID 111 followed by the new Master User PIN again for verification.

  • Page 9: Lock Startup Operations

    Enter 1 to allow only the Master User and Manager Users to retrieve reporting informa- tion; or enter 2 to allow only the Master User to retrieve reporting information. Enter the one-digit number you entered in Step 3 again for verification. Lock Startup Operations With the lock set up, you are now ready for startup operations.

  • Page 10: Lock Operations

    PERATIONS Operations found in this section are those that can be completed as needed in the course of normal lock operation after the lock has been set up. = Green Flash = Red Flash = Yellow Flash = Beep Administrative User Operations The following operations are those that should be completed by the Master and/or Manager Users for administrative purposes.
  • Page 11 Enter the combination (User ID + PIN) of the user for which the PIN is to be changed. Note: The default PIN for a Manager User is “55255”. For security puposes, the Master User PIN should not ever be changed back to the default PIN of “12345”.

  • Page 12: Toggle Daylight Savings Time

    Toggle Daylight Savings Time The date and time in the lock can only be programmed from the PC software, but this operation enables the Master User to “toggle” the Daylight Savings Time (DST) setting at the lock, moving the clock ahead one hour or back by one hour. Press # and then 1.

  • Page 13: Program Lock

    As an alternative to defining setup data and user data manually at the lock, certain types of data can be defined at the PC using the Unicon CL Series Software and the information can then be uploaded (transferred) to the lock via a Smart Key.
  • Page 14 As an alternative to manually adding and deleting Manager Users at the lock, they can be added to and deleted from the system at the PC using the Unicon CL Series Software. The user data can then be transferred to the lock via a teal colored programming key fob.

  • Page 15: Retrieve Audit Records

    (if applicable) and the date and time stamp. The number of audit records stored by the lock is 400. If you have purchased the Unicon CL Series Software, the audit trail data stored in the lock can be downloaded from the lock and taken to the PC for reporting.
  • Page 16 Return the key fob to the Unicon CL Series Software PC to be read. Refer to the software documentation for instructions on reading the reporting key. Retrieve User Table The lock’s User information reporting feature will allow retrieval of status information for all administrative users in the lock.
