Safety - Installation

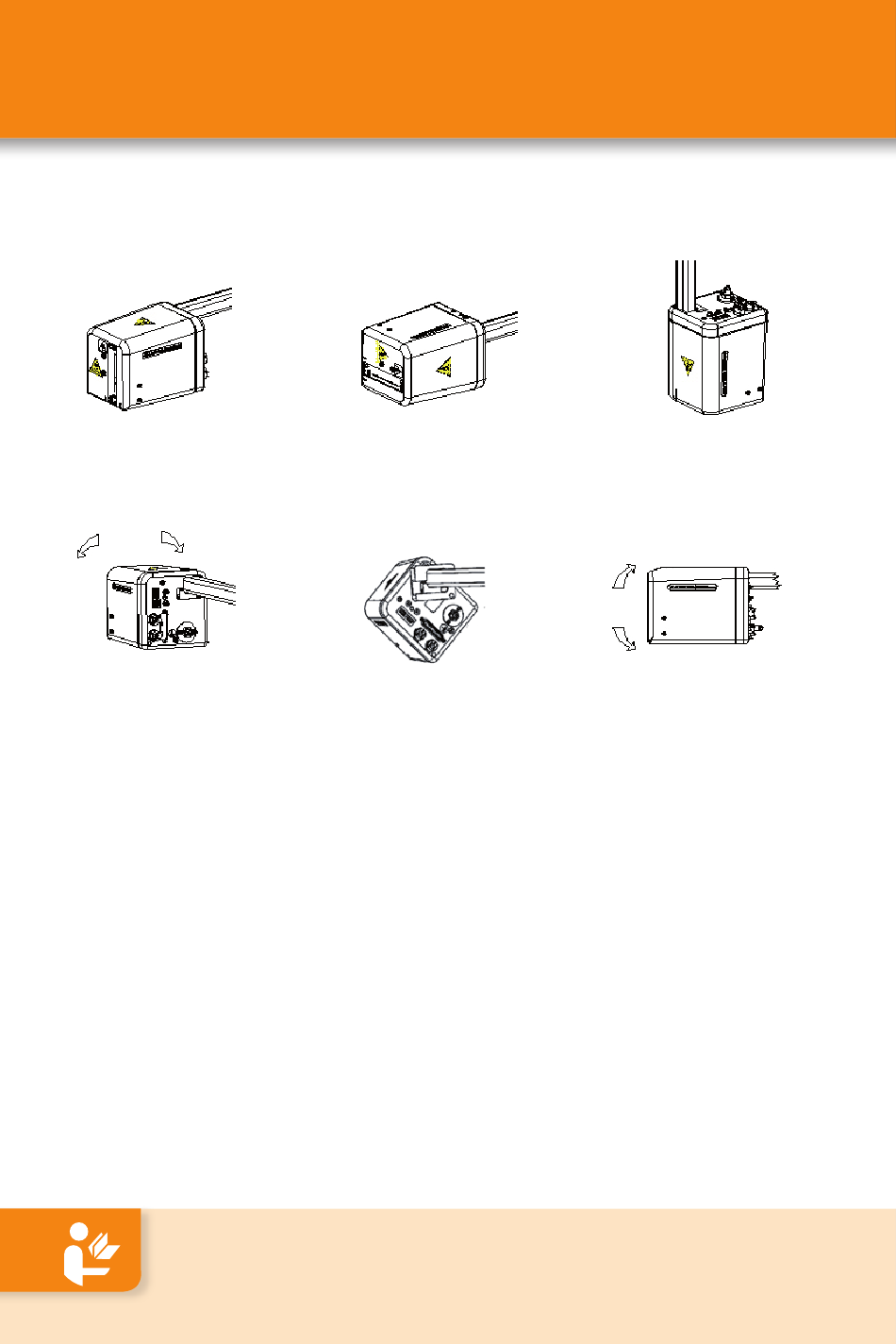

■ Determine jetting position
Vertical Jetting
Tilt
CCW CW
Position the jet array no further than 4,7mm (0.188") from the
product to be printed.
After installing the printer, set software parameters as needed:
• Vertical Jetting: No changes
• Horizontal Jetting: Machine Setup Menu / Printhead Settings /
PH Orientation / Horizontal
• Down Jetting: Machine Setup Menu / Printhead Settings / PH
Orientation / Down
• 45° Slant: Machine Setup Menu / Printhead Settings / PH
Orientation / Custom 4
• Tilt, Rotation: Machine Setup Menu / Printhead Settings / PH
Orientation / Custom 1-3
Machine Setup Menu / Printhead Vacuum Settings / Custom
Vacuum for Custom 1-3 PH Orientations
Instruction manual
Horizontal Jetting
45° Slant
Down Jetting
Rotation
