CORNING Centrix Quick Start Manual

related literature |
To locate this instruction in other languages, visit www.corning.com/opcomm/nafta/en/index.aspx and search
for 003-959.
003-948
003-950
003-960
1.

General

This document describes the recommended procedure for installing splitters or CWDM MUX/DEMUX cassettes
into a Centrix System housing. This procedure assumes that the housing assembly has already been installed into
the frame per the instructions provided with the housing.
2.

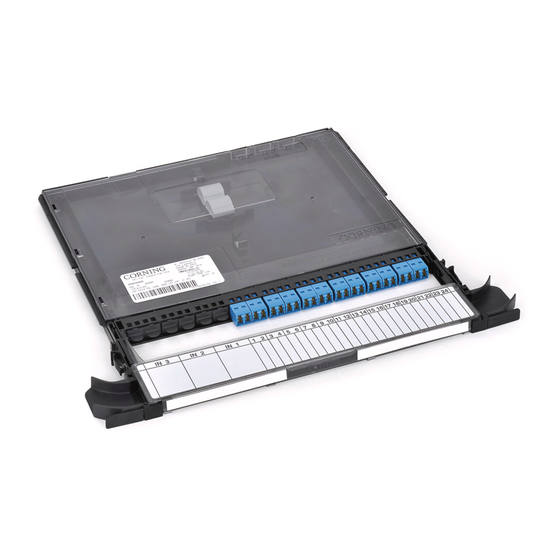

Install Splitter or CWDM Cassettes

Step 1: Determine the location for installation of the
cassette.

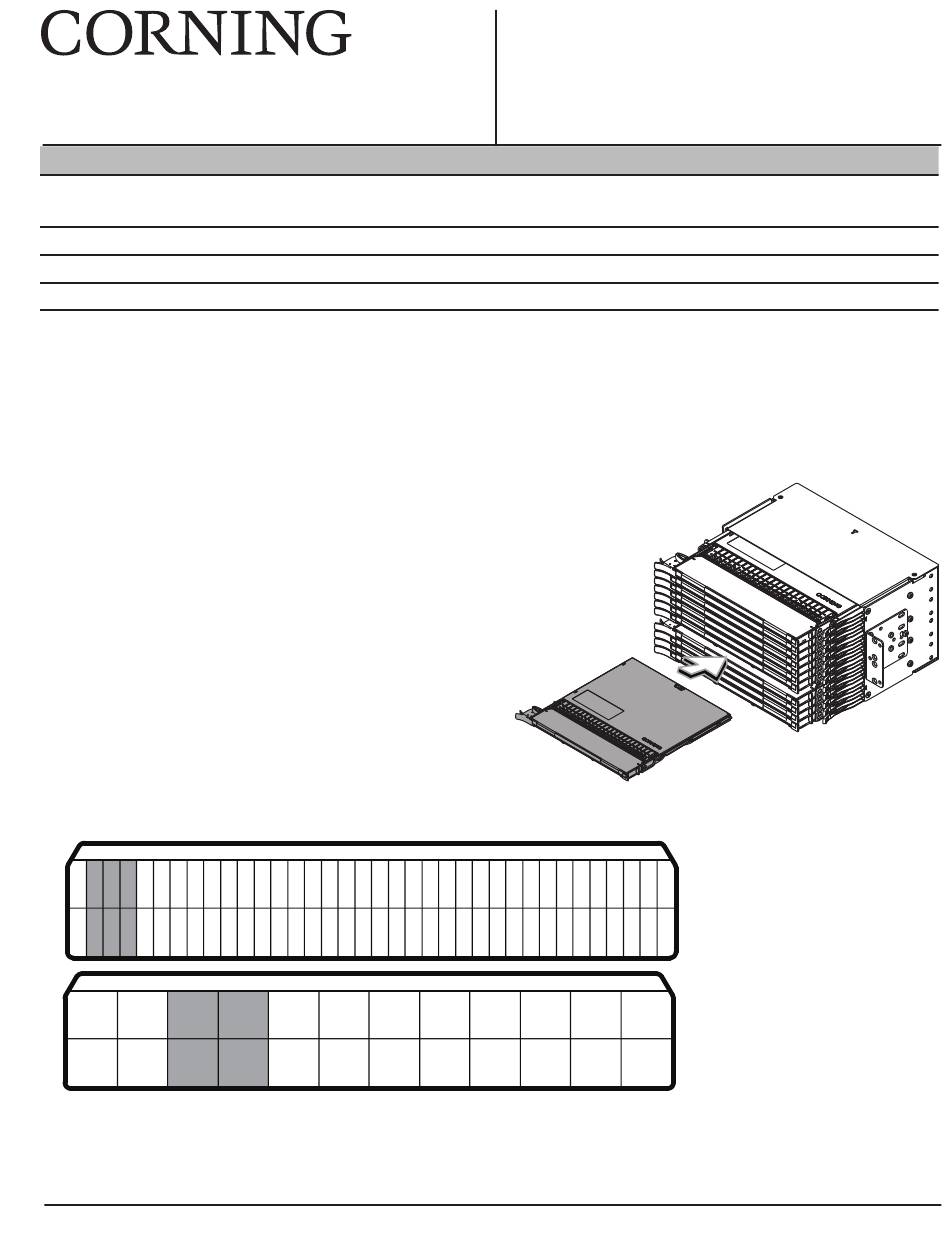

Step 2: Slide the cassette into the slot as shown in
Figure 1.
Step 3: Refer to the designation label attached to
the handle to verify you are installing the
appropriate cassette for your application
(Figure 2).
NOTE: Label will vary depending on the configuration.
IN 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22
COM 1310
TPA-4698
STANDARD RECOMMENDED PROCEDURE 003-959 | ISSUE 3 | APRIl 2017 | PAGE 1 OF 2
Centrix System Housing Installation
Centrix System Frame Installation
Centrix System Jumper Routing Guidelines
1470 1490 1510
Centrix™ System Splitter/
CWDM Cassette Installation
p/n 003-959, Issue 3
TPA-4824
23 24 25 26 27 28 29 30 3132
1530 1550 1570 1590
Example of a 1 x 32 PON
splitter port configuration
label
1610
Example of an 8-channel
WDM port configuration
label
Figure 1
Figure 2
