Vicon Roughneck Pro V2000D Series Quick Manual

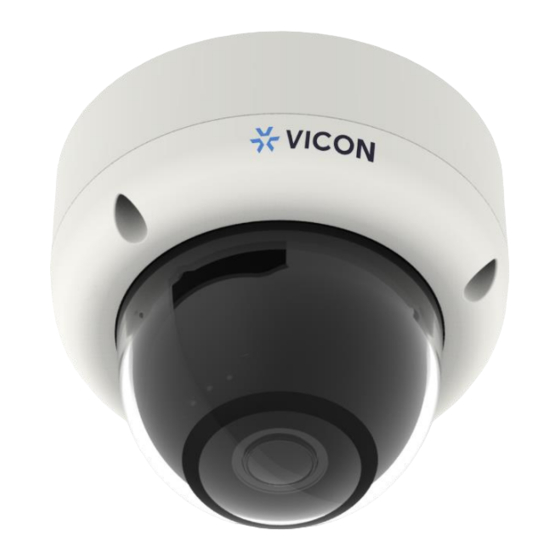

Outdoor vandal dome cameras
Hide thumbs Also See for Roughneck Pro V2000D Series:
Table of Contents

Advertisement

Quick Links

Download this manual

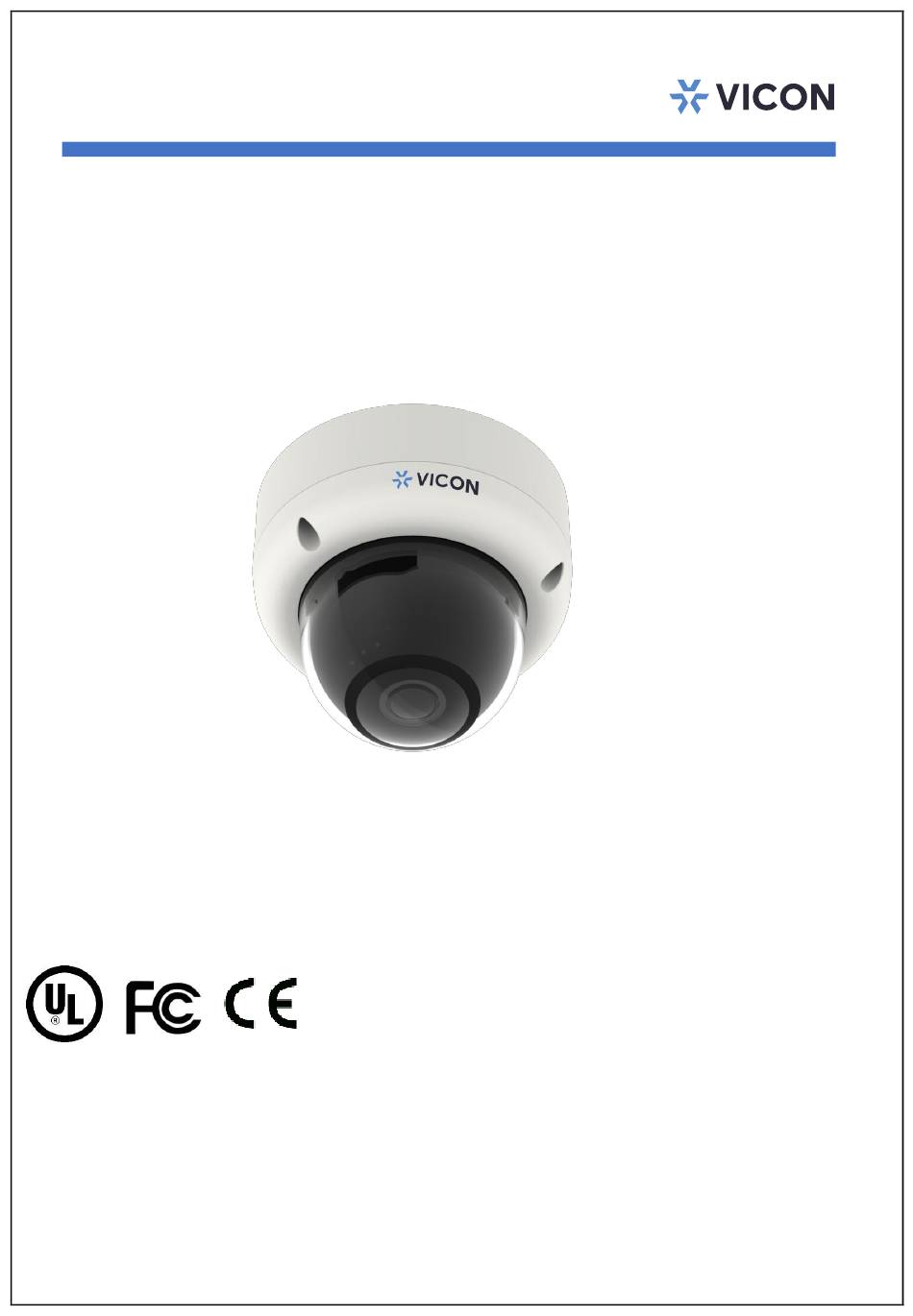

Quick Guide
Roughneck Pro V2000D Series
Outdoor Vandal Dome Cameras
XX318-40-02
Vicon Industries Inc. does not warrant that the functions contained in this equipment will
meet your requirements or that the operation will be entirely error free or perform precisely as
described in the documentation. This system has not been designed to be used in
life-critical situations and must not be used for this purpose.
Document Number: 8009-8318-40-02 Product specifications subject to change without notice.
Issued: 10/2020 Copyright © 2020 Vicon Industries Inc. All rights reserved.
Vicon Industries Inc.
Tel: 631-952-2288) Fax: 631-951-2288
Toll Free: 800-645-9116
24-Hour Technical Support: 800-34-VICON
UK: 44/(0) 1489-566300
www.vicon-security.com
(800-348-4266)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Roughneck Pro V2000D Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vicon Roughneck Pro V2000D Series

Summary of Contents for Vicon Roughneck Pro V2000D Series

  • Page 1 Outdoor Vandal Dome Cameras XX318-40-02 Vicon Industries Inc. Vicon Industries Inc. does not warrant that the functions contained in this equipment will Tel: 631-952-2288) Fax: 631-951-2288 meet your requirements or that the operation will be entirely error free or perform precisely as Toll Free: 800-645-9116 described in the documentation.

  • Page 2: Table Of Contents

    Outdoor Dome Series | Quick Guide Table of Content Product Overview Physical Characteristics Installation and Mounting Package Contents Installation 2.2.1 Checking Appearance 2.2.2 Disassembling the Camera 2.2.3 Connecting the Cables 2.2.4 Mounting the Camera 2.2.5 Positioning the Camera 2.2.6 Reassembling the Camera 2.2.7 Lower Dome Defog Connection...
  • Page 3 Outdoor Dome Series | Quick Guide WARNING ⚫ This camera operates at 12 VDC/24 VAC/PoE (IEEE 802.3af Class 3). ⚫ Installation and service should be performed only by qualified and experienced technicians and comply with all local codes and rules to maintain your warranty. ⚫...
  • Page 4 Outdoor Dome Series | Quick Guide FCC Compliance Statement Information to the user: This unit has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

  • Page 5: Product Overview

    Outdoor Dome Series | Quick Guide 1 Product Overview 1.1 Physical Characteristics Figure 1 - 1: Physical Dimensions Unit: mm (in.) Figure 1 - 2: Parts Pictorial Index...
  • Page 6 Outdoor Dome Series | Quick Guide Name Description Bottom base of the camera dome. Camera Bottom Case Camera Module The physical main body of the camera. Screws of Camera Screws for fixing camera module to the camera bottom case. Bottom Case (3x) The IR LED embedded board for illumination under low-light IR Board environment.
  • Page 7 Outdoor Dome Series | Quick Guide Figure 1 - 3: Internal Interface Pictorial Index...
  • Page 8 Outdoor Dome Series | Quick Guide Name Description DI/DO (Digital Input/Output) ports are equipped for external devices, e.g., smoke detector, siren, microphone. • Alarm In: Via “GND” and “AI” ports; connect to external device that can trigger alarm input signals. •...

  • Page 9: Installation And Mounting

    2 Installation and Mounting Package Contents Check if all items listed below are included in the packing box. ⚫ Dome Camera * 1 ⚫ Plastic Anchor * 4 ⚫ Pan Head Screw (TP4) * 4 ⚫ T20 Security Torx Bit * 1 ⚫...

  • Page 10: Disassembling The Camera

    Outdoor Dome Series | Quick Guide 2.2.2 Disassembling the Camera Refer to the steps and figure below for correct disassembly order of the camera. Loosen the 3 screws of camera housing turning counterclockwise using the T20 security torx bit. Gently pull the camera housing downward to separate it from the camera body. DO NOT remove the camera from the camera bottom case during installation.

  • Page 11: Connecting The Cables

    Outdoor Dome Series | Quick Guide 2.2.3 Installing the Desiccant Lift to open the inner liner. Secure the desiccant (via the sticker that is attached to the desiccant) on the inside part of inner liner as shown in the following figure. Desiccant Figure 2 - 2: Installing the Desiccant Return the inner liner back to its default position after desiccant installation.
  • Page 12 Outdoor Dome Series | Quick Guide Figure 2 - 3: Connecting Ethernet Cable Figure 2 - 4: Connecting BNC Cable Insert audio in/out cables and alarm in/out cables to the corresponding terminals of the camera, if required. NOTE: It is recommended to connect external microphones to ground (GND) on the digital I/O connector. Refer to Figure 1 - 3: Internal Interface Pictorial Index for details on I/O interface.

  • Page 13: Mounting The Camera

    Outdoor Dome Series | Quick Guide 2.2.5 Mounting the Camera ⚫ Use the mounting template to prepare a mounting area for surface mounting. 1. Place the supplied mounting template on a mounting surface. Drill 6 mm (0.2”) outer holes at the T1 (double gang box) or T2 (single gang box) template positions on the mounting surface.
  • Page 14 Outdoor Dome Series | Quick Guide Plastic Anchor Pan Head Screw (TP4) Figure 2 - 7: Wall or Ceiling Surface Mount 4. Based on your installation requirements, use the bottom or side conduit hole on the camera bottom case for cable entry and feed the cables through the camera bottom case first. Then mount the camera bottom case on a wall surface by tightly securing 4 TP4 screws (supplied) into the inserted plastic anchors.

  • Page 15: Positioning The Camera

    Outdoor Dome Series | Quick Guide 2.2.6 Positioning the Camera ⚫ Pan Adjustment (A) Rotate the lens camera assembly to the desired field of view. Note that the camera lens should not be rotated further than the point where the side conduit hole of the camera bottom case is located. ⚫...

  • Page 16: Reassembling The Camera

    Outdoor Dome Series | Quick Guide 2.2.6 Reassembling the Camera Assemble the camera housing with the camera bottom base, both of which have red dots for indicating alignment; then fasten the 3 screws of the lower dome with the T20 security torx bit to complete the installation.

  • Page 17: Lower Dome Defog

    Outdoor Dome Series | Quick Guide 2.2.7 Lower Dome Defog A Defog function, which heats up the camera to overcome certain extreme weather conditions (e.g., snow or frost) that may harm the operation of camera, is embedded within this vandal dome camera. This defog heater ring is On between 140º...

  • Page 18: Connection

    Outdoor Dome Series | Quick Guide 3 Connection Network Topology The camera, which is equipped with Ethernet RJ-45 network interface, can deliver live view image in real time via both Internet and Intranet. Review the topology drawings shown below. Figure 3 - 1: Network Topology System Requirements The table below lists the minimum requirements to implement and operate the camera.

  • Page 19: Connecting Process

    Outdoor Dome Series | Quick Guide Connecting Process 3.3.1 Default IP address Since this is a network-based camera, an IP address must be assigned. The camera’s default IP address is obtained automatically through a DHCP server in your network; be sure to enable DHCP in "Network Settings."...
  • Page 20 Outdoor Dome Series | Quick Guide Viewing Preparation Images of the unit can be viewed through various browsers. Before viewing, follow these steps to enable the display. Enable Cookies per instructions below:  In Internet Explorer, click Internet Options on the Tools menu. ...
  • Page 21 Outdoor Dome Series | Quick Guide  Scroll down to the ActiveX controls and plug-ins radio buttons and set as follows: 【Download signed ActiveX controls】➔ Prompt (recommended) 【Download unsigned ActiveX controls】➔ Prompt 【Initialize and script ActiveX not marked as safe for scripting】➔ Prompt Figure 3 - 4: Security Settings 2/4 【Automatic prompting for ActiveX controls】➔...
  • Page 22 Outdoor Dome Series | Quick Guide 【Run ActiveX controls and plug-ins】➔ Enable 【Script ActiveX controls marked safe for scripting*】➔ Enable Figure 3 - 6: Security Settings 4/4  Press OK to save the settings.  Close all browser windows and restart the browser. This will allow the new settings to take effect. ...

  • Page 23: Ip Toolbox

    Note that IP Toolbox works only in Microsoft Windows XP, Microsoft Windows Vista, and Microsoft Windows 7 or above. Steps to get the utility program running are listed below. Download the IP Toolbox folder to local computer. The latest IP Toolbox can be found on Vicon’s website Camera Software Download page, vicon-security.com.
  • Page 24 Outdoor Dome Series | Quick Guide input certain keywords into the field and also narrow down the range by selecting the criteria from the dropdown menu for a target search on cameras connected. Press “Auto Set IP Address” button to automatically give each camera an IP address from predefined range and connected to predefined network internet controller.
  • Page 25 Outdoor Dome Series | Quick Guide Follow the steps below to complete firmware upgrade: ▪ Click to add or remove camera to be upgraded (only verified cameras will be shown on this list). ▪ Select a camera or click “Select All” button to select a camera or all the cameras on the firmware upgrade list, respectively.
