Quick Guide

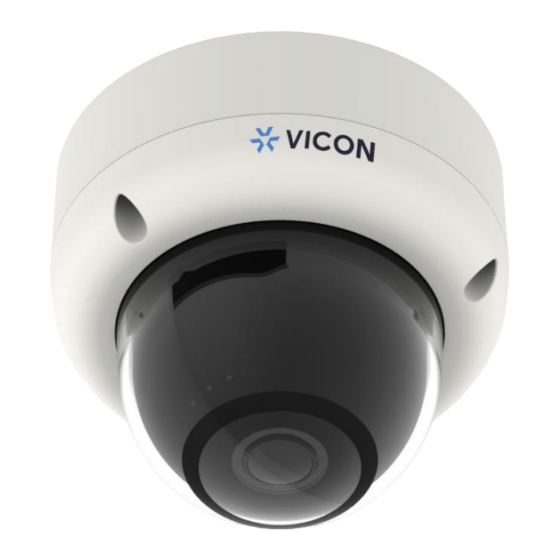

Roughneck Pro V2000D Series
Outdoor Micro Dome Cameras
XX318-50-02
Vicon Industries Inc. does not warrant that the functions contained in this equipment will
meet your requirements or that the operation will be entirely error free or perform precisely as
described in the documentation. This system has not been designed to be used in
life-critical situations and must not be used for this purpose.
Document Number: 8009-8318-50-02 Product specifications subject to change without notice.
Issued: 9/2020 Copyright © 2020 Vicon Industries Inc. All rights reserved.
Vicon Industries Inc.
Tel: 631-952-2288) Fax: 631-951-2288
Toll Free: 800-645-9116
24-Hour Technical Support: 800-34-VICON
UK: 44/(0) 1489-566300
www.vicon-security.com
(800-348-4266)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Roughneck Pro V2000D Series and is the answer not in the manual?

Questions and answers

Related Manuals for Vicon Roughneck Pro V2000D Series

Summary of Contents for Vicon Roughneck Pro V2000D Series

  • Page 1 Outdoor Micro Dome Cameras XX318-50-02 Vicon Industries Inc. Vicon Industries Inc. does not warrant that the functions contained in this equipment will Tel: 631-952-2288) Fax: 631-951-2288 meet your requirements or that the operation will be entirely error free or perform precisely as Toll Free: 800-645-9116 described in the documentation.

  • Page 2: Table Of Contents

    Quick Guide Table of Content Product Overview Physical Characteristics Installation and Connection Package Contents Installation 2.2.1 Checking Appearance 2.2.2 Disassembling the Camera 2.2.3 Mounting the Camera 2.2.4 Connecting the Cables 2.2.5 PoE Port & Waterproof Connector (IWPWPC) Wiring Procedure 2.2.6 Positioning the Camera 2.2.7 Securing Desiccant...
  • Page 3 Micro Dome Quick Guide WARNING ⚫ This camera operates at PoE (IEEE 802.3af Class 3). ⚫ Installation and service should be performed only by qualified and experienced technicians and comply with all local codes and rules to maintain your warranty. ⚫...
  • Page 4 Quick Guide FCC Compliance Statement Information to the user: This unit has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

  • Page 5: Product Overview

    Micro Dome Quick Guide 1 Product Overview 1.1 Physical Characteristics Figure 1 - 1: Physical Dimension Unit: mm (in.)
  • Page 6 Quick Guide Figure 1 - 2: Parts Pictorial Index...
  • Page 7 Micro Dome Quick Guide Name Description Camera Housing Top cover of the camera. Screws of Camera Housing Screws for fixing Camera Housing to Camera Bottom Case. Bottom base of the camera. Camera Bottom Case IR LED embedded board for illumination under low-light IR Board environment.

  • Page 8: Installation And Connection

    Quick Guide 2 Installation and Connection Package Contents Check if all items listed below are included in the packing box. ⚫ Fixed Flat Dome Camera * 1 Plastic Anchor * 2 ⚫ ⚫ Pan Head Screw (Tapping Type) * 2 ⚫...

  • Page 9: Mounting The Camera

    Micro Dome Quick Guide Figure 2 - 1: Disassembling the Camera 2.2.3 Mounting the Camera 1. Attach the mounting template to the wall or ceiling. 2. Drill two holes indicated on the mounting template and insert the supplied plastic anchors into the holes. 3.

  • Page 10: Connecting The Cables

    Quick Guide ① Mounting Template ② Plastic Anchors * 2 ③ Pan Head Screws (TP4) * 2 Figure 2 - 2: Mounting the Camera 2.2.4 Connecting the Cables 1. PoE (Class 3): Connect an Ethernet cable terminated with RJ-45 connector to the PoE RJ-45 port for both power supply and network connectivity purposes.

  • Page 11: Positioning The Camera

    Micro Dome Quick Guide ① Waterproof Connector ② Ethernet Cable ③ RJ-45 Connector ④ Rubber O-Ring ⑤ PoE Port Figure 2 - 3: Waterproof Connector Wiring 2.2.6 Positioning the Camera ⚫ Pan Adjustment (A) Rotate the lens camera assembly to the desired field of view. ⚫...

  • Page 12: Securing Desiccant

    Quick Guide 2.2.7 Securing Desiccant 1. Remove the desiccant from the package. 2. Flip over the camera housing and apply desiccant to the circle recess, as shown in the figure below. NOTE: Be sure to apply the desiccant before camera assembly to avoid fogging. Figure 2 - 5: Securing Desiccant 2.2.8 Reassembling the Camera 1.

  • Page 13: Connection

    Micro Dome Quick Guide 3 Connection Network Topology The camera, which is equipped with Ethernet RJ-45 network interface, can deliver live view image in real time via both Internet and Intranet manners. Review the topology drawings shown below. Figure 3 - 1: Network Topology System Requirements The table below lists the minimum requirement to implement and operate the camera.

  • Page 14: Connecting Process

    Quick Guide Connecting Process 3.3.1 Default IP address Since this is a network-based camera, an IP address must be assigned. The camera’s default IP address is obtained automatically through a DHCP server in your network; be sure to enable DHCP in "Network Settings."...
  • Page 15 Micro Dome Quick Guide Viewing Preparation Images of the unit can be viewed through various browsers. Before viewing, follow these steps to enable the display. Enable Cookies per instructions below:  In Internet Explorer, click Internet Options on the Tools menu. ...
  • Page 16 Quick Guide  Scroll down to the ActiveX controls and plug-ins radio buttons and set as follows: 【Download signed ActiveX controls】➔ Prompt (recommended) 【Download unsigned ActiveX controls】➔ Prompt 【Initialize and script ActiveX not marked as safe for scripting】➔ Prompt Figure 3 - 4: Security Settings 2/4 【Automatic prompting for ActiveX controls】➔...
  • Page 17 Micro Dome Quick Guide 【Run ActiveX controls and plug-ins】➔ Enable 【Script ActiveX controls marked safe for scripting*】➔ Enable Figure 3 - 6: Security Settings 4/4  Press OK to save the settings.  Close the all browser windows and restart the browser. This will allow the new settings to take effect.

  • Page 18: Ip Toolbox

    Note that IP Toolbox works only in Microsoft Windows XP, Microsoft Windows Vista, and Microsoft Windows 7 or above. Steps to get the utility program running are listed below. Download the IP Toolbox folder to local computer. The latest IP Toolbox can be found on Vicon’s website Camera Software Download page, vicon-security.com.
  • Page 19 Micro Dome Quick Guide can input certain keywords into the field and also narrow down the range by selecting the criteria from the dropdown menu for a target search on cameras connected. Press “Auto Set IP Address” button to automatically give each camera an IP address from predefined range and connected to predefined network internet controller.
  • Page 20 Quick Guide Follow the steps below to complete firmware upgrade: ▪ Click to add or remove camera to be upgraded (only verified cameras will be shown on this list). ▪ Select a camera or click “Select All” button to select a camera or all the cameras on the firmware upgrade list, respectively.
