Vicon Roughneck Pro V2000B Series Quick Manual

Outdoor vandal bullet camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

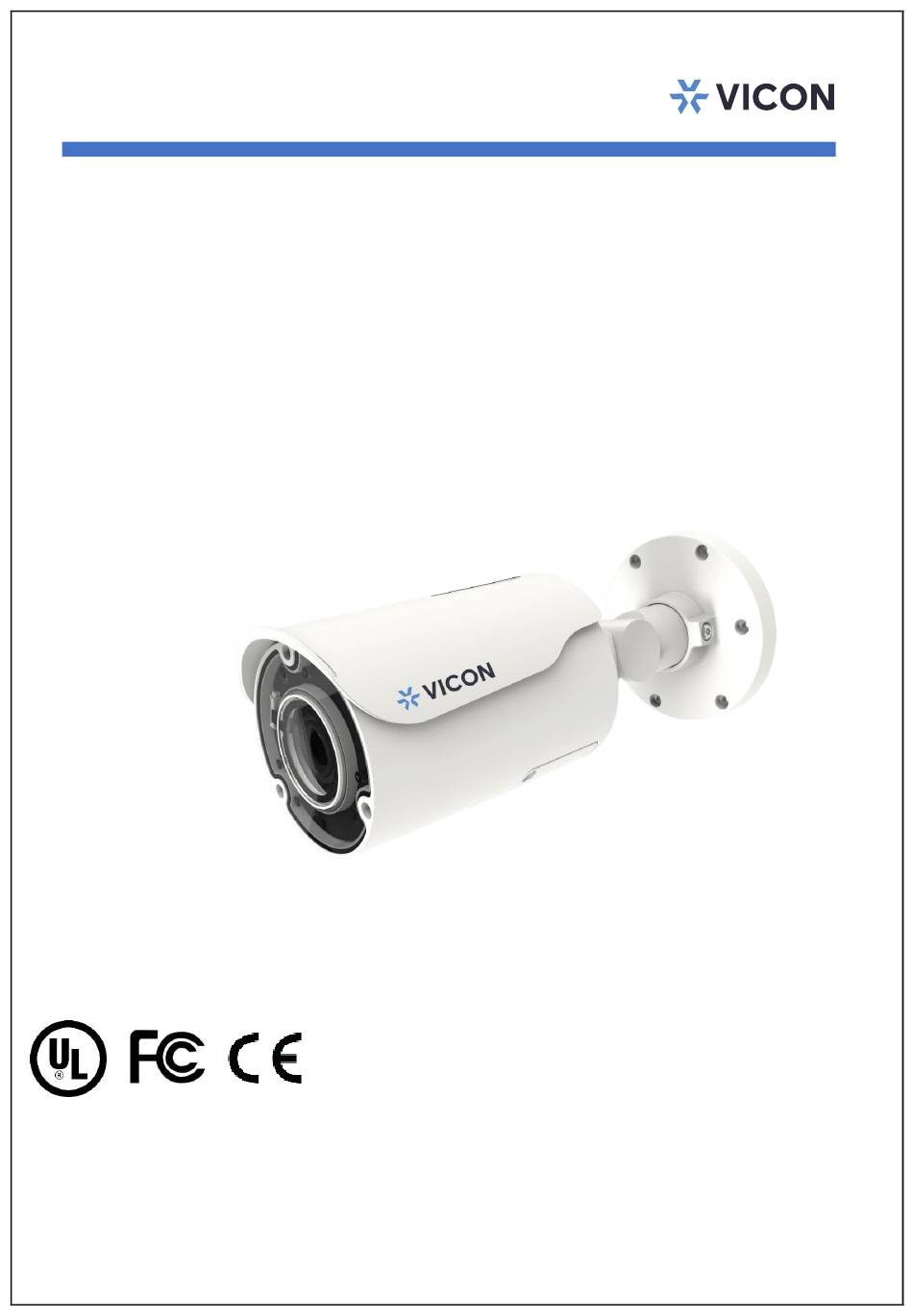

Quick Guide
Roughneck Pro V2000B Series
Outdoor Vandal Bullet Cameras
XX318-60-02
Vicon Industries Inc. does not warrant that the functions contained in this equipment will
meet your requirements or that the operation will be entirely error free or perform precisely as
described in the documentation. This system has not been designed to be used in
life-critical situations and must not be used for this purpose.
Document Number: 8009-8318-60-02 Product specifications subject to change without notice.
Issued: 9/2020 Copyright © 2020 Vicon Industries Inc. All rights reserved.
Vicon Industries Inc.
Tel: 631-952-2288) Fax: 631-951-2288
Toll Free: 800-645-9116
24-Hour Technical Support: 800-34-VICON
UK: 44/(0) 1489-566300
www.vicon-security.com
(800-348-4266)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Roughneck Pro V2000B Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vicon Roughneck Pro V2000B Series

Summary of Contents for Vicon Roughneck Pro V2000B Series

  • Page 1 Outdoor Vandal Bullet Cameras XX318-60-02 Vicon Industries Inc. Vicon Industries Inc. does not warrant that the functions contained in this equipment will Tel: 631-952-2288) Fax: 631-951-2288 meet your requirements or that the operation will be entirely error free or perform precisely as Toll Free: 800-645-9116 described in the documentation.

  • Page 2: Table Of Contents

    V2000B Quick Guide Table of Content Product Overview Physical Characteristics Installation and Connection Package Contents Installation 2.2.1 Checking Appearance 2.2.2 Mounting Preparation 2.2.3 Mounting the Camera 2.2.4 Connecting the Cables 2.2.5 Adjusting the Camera Position 2.2.6 Adjusting the Protection Shield Hood Connection Network Topology System Requirements...
  • Page 3 V2000B Quick Guide WARNING ⚫ This camera operates at 12 VDC/ 24 VAC/PoE (IEEE 802.3af Class 3). ⚫ Installation and service should be performed only by qualified and experienced technicians and comply with all local codes and rules to maintain your warranty. ⚫...
  • Page 4 V2000B Quick Guide FCC Compliance Statement Information to the user: This unit has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

  • Page 5: Product Overview

    V2000B Quick Guide 1 Product Overview 1.1 Physical Characteristics Figure 1 - 1: Physical Dimension Unit: mm (in.) Figure 1 - 2: Parts Pictorial Index...
  • Page 6 V2000B Quick Guide Name Description Connect an Ethernet cable terminated with RJ-45 connector to RJ-45 Ethernet/PoE Port the PoE RJ-45 port for both power supply and network connectivity purposes simultaneously. Power the camera via a 12 VDC or 24 VAC power source. Pay 12 VDC or 24 VAC Port attention to the polarities when connecting to 12 VDC power supply.
  • Page 7 V2000B Quick Guide Figure 1 - 3: Internal Interface Pictorial Index Interface Description Insert a micro SD card (customer-supplied) into the slot for recording Micro SD Card Slot and file storage. Reset Button Press the button for 1 second to reboot the camera. Press the button for 6 seconds to restore camera’s settings to factory Default Button default settings.

  • Page 8: Installation And Connection

    V2000B Quick Guide 2 Installation and Connection Package Contents Check if all items listed below are included in the packing box. IR Bullet Camera * 1 Plastic Anchor * 6 Self-tapping Screw (T10) * 6 T10 Security Torx Bit * 1 Mounting Template * 1 Installation The following tools might help you complete the installation:...

  • Page 9: Mounting The Camera

    V2000B Quick Guide 2.2.3 Mounting the Camera There are two ways to connect the wires, depending on your application. Pass all cables that exit from the mounting bracket through the hole of mounting surface (Figure 2-2, Type I) or place them by the side hole of the mounting bracket (Figure 2-3, Type II), as illustrated by the following figures.

  • Page 10: Connecting The Cables

    V2000B Quick Guide Position the camera to match the 6 holes embedded with the plastic anchors on the surface. Secure the 6 tapping screws tightly to fasten the camera with the mounting surface. Plastic Anchors Tapping Screws Figure 2 - 4: Mounting the Camera 2.2.4 Connecting the Cables 1.

  • Page 11: Adjusting The Camera Position

    V2000B Quick Guide 2.2.5 Adjusting the Camera Position ⚫ Pan Adjustment (A) Loosen the locking screw using the T10 torx wrench and rotate the A joint to adjust the camera horizontally for a variety of installations. ⚫ Tilt Adjustment (B) Loosen the locking screw using the T10 torx wrench and tilt the B joint to adjust the camera vertically for a variety of installations.

  • Page 12: Adjusting The Protection Shield Hood

    V2000B Quick Guide 2.2.6 Adjusting the Protection Shield Hood This camera is designed with capability to operate under rugged environments and may possibly be subject to the influence from sunlight or rain. The protection shield hood is consequently attached to the camera to prevent from impact from those outside effects.

  • Page 13: Connection

    V2000B Quick Guide 3 Connection Network Topology The camera, which is equipped with Ethernet RJ-45 network interface, can deliver live view image in real time via both Internet and Intranet manners. Review the topology drawings shown below. Figure 3 - 1: Network Topology System Requirements The table below lists the minimum requirement to implement and operate the camera.

  • Page 14: Connecting Process

    V2000B Quick Guide Connecting Process 3.3.1 Default IP address Since this is a network-based camera, an IP address must be assigned. The camera’s default IP address is obtained automatically through a DHCP server in your network; be sure to enable DHCP in "Network Settings."...
  • Page 15 V2000B Quick Guide Viewing Preparation Images of the unit can be viewed through various browsers. Before viewing, follow these steps to enable the display. Enable Cookies per instructions below:  In Internet Explorer, click Internet Options on the Tools menu. ...
  • Page 16 V2000B Quick Guide  Scroll down to the ActiveX controls and plug-ins radio buttons and set as follows: 【Download signed ActiveX controls】➔ Prompt (recommended) 【Download unsigned ActiveX controls】➔ Prompt 【Initialize and script ActiveX not marked as safe for scripting】➔ Prompt Figure 3 - 4: Security Settings 2/4 【Automatic prompting for ActiveX controls】➔...
  • Page 17 V2000B Quick Guide 【Run ActiveX controls and plug-ins】➔ Enable 【Script ActiveX controls marked safe for scripting*】➔ Enable Figure 3 - 6: Security Settings 4/4  Press OK to save the settings.  Close the all browser windows and restart the browser. This will allow the new settings to take effect. ...

  • Page 18: Ip Toolbox

    Note that IP Toolbox works only in Microsoft Windows XP, Microsoft Windows Vista, and Microsoft Windows 7 or above. Steps to get the utility program running are listed below. Download the IP Toolbox folder to local computer. The latest IP Toolbox can be found on Vicon’s website Camera Software Download page, vicon-security.com.
  • Page 19 V2000B Quick Guide input certain keywords into the field and also narrow down the range by selecting the criteria from the dropdown menu for a target search on cameras connected. Press “Auto Set IP Address” button to automatically give each camera an IP address from predefined range and connected to predefined network internet controller.
  • Page 20 V2000B Quick Guide Follow the steps below to complete firmware upgrade: ▪ Click to add or remove camera to be upgraded (only verified cameras will be shown on this list). ▪ Select a camera or click “Select All” button to select a camera or all the cameras on the firmware upgrade list, respectively.
