Quick Guide

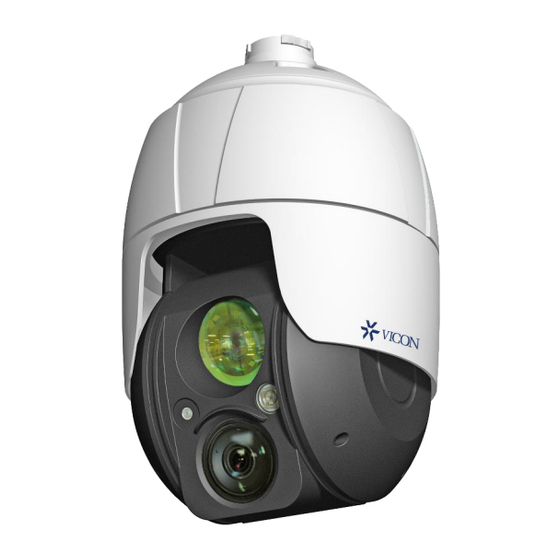

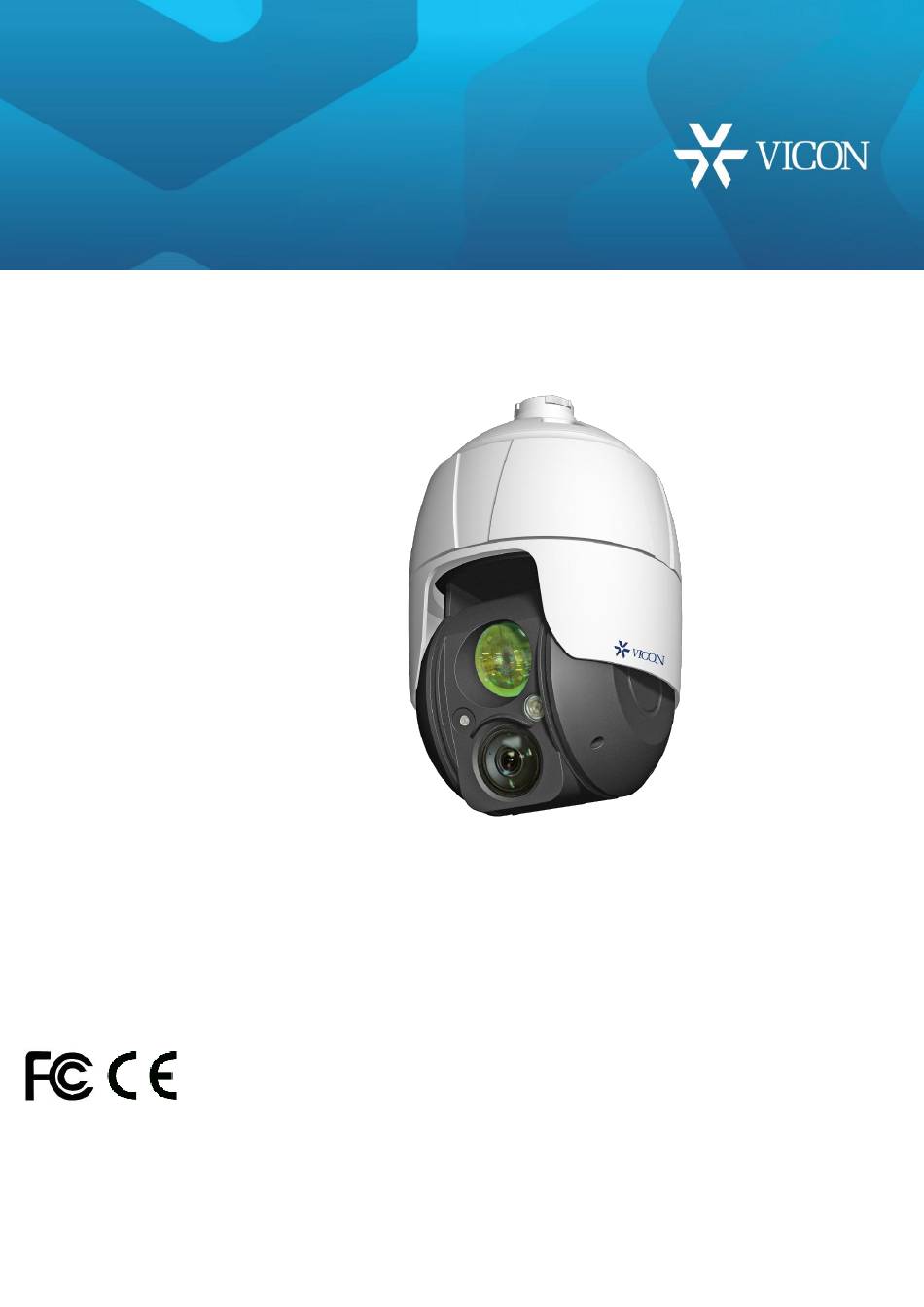

SN683D-WIR Outdoor PTZ Dome Camera
Vicon Industries Inc. does not warrant that the functions contained in this equipment will
meet your requirements or that the operation will be entirely error free or perform precisely
as described in the documentation. This system has not been designed to be used in life-
critical situations and must not be used for this purpose.
Document Number: 8009-8270-50-00 Product specifications subject to change without
notice. Issued: 9/18 Copyright © 2018 Vicon Industries Inc. All rights reserved.
.
XX270-50-00
Vicon Industries Inc.
Tel: 631-952-2288) Fax: 631-951-2288
Toll Free: 800-645-9116
24-Hour Technical Support: 800-34-VICON
(800-348-4266) UK: 44/(0) 1489-566300
www.vicon-security.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vicon SN683D-WIR
Summary of Contents for Vicon SN683D-WIR
- Page 1 SN683D-WIR Outdoor PTZ Dome Camera XX270-50-00 Vicon Industries Inc. Vicon Industries Inc. does not warrant that the functions contained in this equipment will Tel: 631-952-2288) Fax: 631-951-2288 meet your requirements or that the operation will be entirely error free or perform precisely Toll Free: 800-645-9116 as described in the documentation.
- Page 2 1 Introduction The SN683D network camera is designed for performance in the most demanding security installations. The 3 MP camera has an integral 36X optical zoom lens and integrated IR LEDs. The camera provides quad-streaming video and supports H.265/H.264 compression technology, drastically reducing file sizes and conserving valuable network bandwidth;...
-
Page 3: Key Features
1.2 Key Features • Brilliant video quality The network camera offers the highly efficient H.264/H.265 video compression, which drastically reduces bandwidth and storage requirements without compromising image quality. Motion JPEG is also supported for increased flexibility. • Quad Streams The network camera can deliver quad video streams simultaneously using H.264/H.265 and Motion JPEG. -
Page 4: Installation
2 Installation 2.1 Mounting the Camera An optional mount kit, either a wall mount or a ceiling mount, is required for installation. The wall or ceiling mount must be attached to a structural object such as hard wood or concrete that will support the weight of the mount and dome camera. -
Page 5: Wall Mounting
2.1.1 Wall Mounting The wall mounting plate must be attached to a structural object such as concrete that will support the weight of the mount and dome camera. 1. Select a suitable mounting location and verify there is sufficient cable to reach the middle of the Wall Mount. -
Page 6: Ceiling Mounting
2.1.2 Ceiling Mounting The ceiling mounting plate must be attached to a structural object such as concrete that will support the weight of the mount and dome camera. 1. Select a suitable mounting location and verify there is sufficient cable to connect with cables... -
Page 7: Basic Configuration Of Camera System
2.2 Basic Configuration of Camera System Connector Wire Color Description Power jack BLACK 12 VDC CAMERA POWER Ethernet, RJ-45 port compatible with RJ-45 BLACK 10/100Mbps (Option PoE++ functionality) RCA jack BLACK AUDIO INPUT RCA jack GRAY AUDIO OUTPUT YELLOW ALARM INPUT 1 WHITE ALARM INPUT 2 5-pin cable... -
Page 8: Resetting To The Factory Default Settings
2.3 Resetting to the factory default settings To reset the network camera to the original factory settings, go to the Setup > System > Maintenance web page (described in “System > Maintenance” of User Manual) or use the Reset button on the network camera, as described below: •... -
Page 9: Connecting Alarms
2.4 Connections • Micro-SD Card Insertion User can install and change Micro-SD card as shown in the following picture. 1. Open the Micro-SD card cover. 2. Install or change Micro-SD card. 3. Close the Micro-SD card cover tightly to ensure waterproofing. •... - Page 10 • Connecting the Power Connect power of 12 VDC for the camera. When using a 12 VDC adapter, connect the positive (+) pole to the ‘+’ position and the negative (-) pole to the ‘-’ position. Use satisfy clause 2.5 of IEC60950-1/UL60950-1 or Certified/Listed Class 2 power source only. –...
-
Page 11: Network Connection & Ip Assignment
If DHCP is enabled and the product cannot be accessed, run the SmartManager utility, which can be found on VIcon’s website, to search and allocate an IP address, or reset the product to the factory default settings and then perform the installation again. -
Page 12: Operation
3 Operation The network camera can be used with Windows operating system and browsers. The recommended browsers are Internet Explorer, Safari, Firefox, Opera and Google Chrome with Windows. NOTE: To view streaming video in Microsoft Internet Explorer, set your browser to allow ActiveX controls. -
Page 13: Access From The Internet
3.2 Access from the internet Once connected, the network camera is accessible on your local network (LAN). To access the network camera from the Internet you must configure your broadband router to allow incoming data traffic to the network camera. To do this, enable the NAT traversal feature, which will attempt to automatically configure the router to allow access to the network camera. -
Page 14: Live View Page
3.4 Live View Page The Live View page comes in several screen modes. Users are allowed to select the most suitable one out of those modes. Adjust the mode in accordance with your PC specifications and monitoring purposes. 1) General controls Live View Page Playback Page Setup Page... -
Page 15: Control Toolbar
2) Control toolbar The live viewer toolbar is available in the web browser page only. It displays the following buttons: The live viewer toolbar is available in the web browser page only. It displays the following buttons: The Stop button stops the video stream being played. Pressing the key again toggles the play and stop. -
Page 16: Playback Buttons
3.5 Playback The Playback window contains a list of recordings made to the memory card. It shows each recording’s start time, length, the event type used to start the recording, calendar and time slice bar indicates if the recording is existed or not. The description of playback window follows. - Page 17 3) Time Chart Display an hour-based search screen for the chosen date. If there is recording data, a blue section will be displayed on a 24-hour basis. If you select a particular hour in the chart, a yellow square on the hour will be displayed. 4) Speaker Control Bar Use this scale to control the volume of the speakers.
-
Page 18: Network Camera Setup
3.6 Network Camera Setup This section describes how to configure the network camera. Administrator has unrestricted access to all the Setup tools, whereas Operators have access to the settings of Basic Configuration, which are Live View, Video & Image, Audio, Event, Dome Configuration, and System. -
Page 19: System Requirement For Web Browser
• Heavy network utilization via wireless router due to poor infrastructure: Frame rate and bandwidth affected. • Viewing on poorly performing client PCs lowers perceived performance: Frame rate affected. More Information For more information, see the network camera complete User Manual, which is available on Vicon’s website, www.vicon-security.com, under Documentation. - Page 20 VICON INDUSTRIES INC. For office locations, visit the website: www.vicon-security.com...
