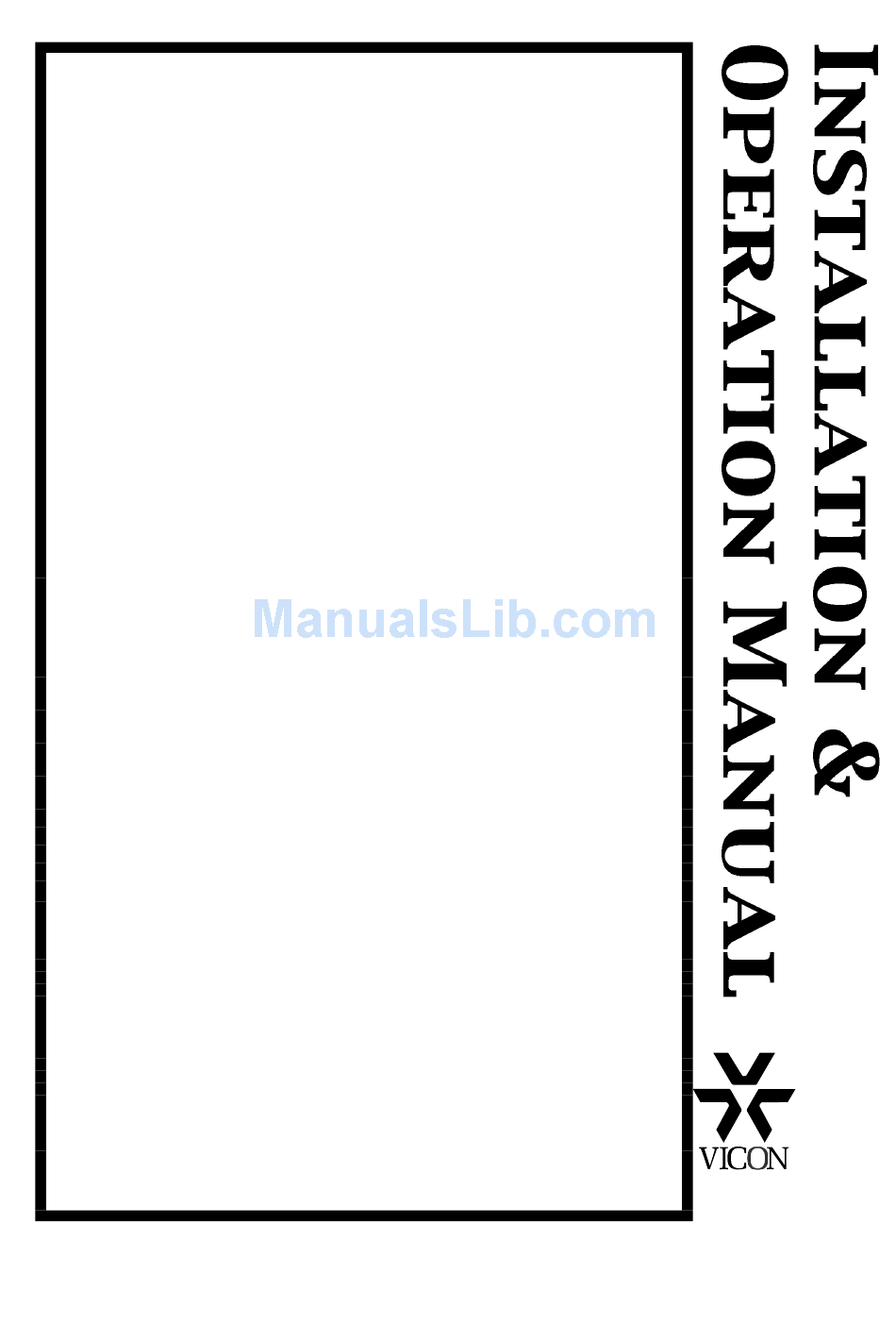

VC455-DSP, VC465-DSP,
VC455C-DSP AND VC465C-DSP
DIGITAL COLOR CAMERAS
WEB: www.vicon-cctv.com
XX131-10-00
Rev 403 Section 1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vicon VC455-DSP
Summary of Contents for Vicon VC455-DSP
- Page 1 VC455C-DSP AND VC465C-DSP DIGITAL COLOR CAMERAS Vicon Industries Inc. does not warrant that the functions contained in this equipment will meet your requirements or that the operation will be entirely error free or perform precisely as described in the documentation. This system has not been designed to be used in life-critical situations and must not be used for this purpose.
- Page 3 To prevent fire or shock hazard, do not expose the unit WARNING to rain or moisture. The symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. The symbol is intended to alert the user to the presence of uninsulated "dangerous voltage"...
- Page 4 PRECAUTIONS 1. Installation of the camera must be performed by qualified service personnel in accordance with all local and national electrical and mechanical codes. 2. Do not attempt to disassemble the camera. In order to prevent electric shock, do not remove screws or cover.
-
Page 5: Packing List
PACKING LIST 1. Iris lens connector plug for DC or VIDEO drive – 1pc 2. Dust protective cap - 1pc 3. Manual – 1pc... -
Page 6: Connectors And Controls
CONNECTORS AND CONTROLS Video output connector (BNC) 1.0 V p-p/75Ω composite video signal is provided at this connector. Power input connector (screw terminal) Caution: 1. - Page 7 Autoiris lens connector for DC or VIDEO drive lens Use of a DC drive lens: It supplies the control signals to the DC drive autoiris lens. When using a DC drive lens, set DC and VIDEO drive select switch (switch !) to DC drive and MODE SELECT SWITCH 4 (ALC/ELC) to ALC MODE.
- Page 8 Power Indicator LED This LED turns ON only when power is supplied properly and the DC-DC converter (or the regulator) inside the camera works properly. ! ! ! ! V-Phase Adjustment Push Button This camera is designed to keep the initial data value of V-phase in EEPROM.
- Page 9 " " " " AWB HOLD pushbutton Use of the AWB HOLD pushbutton: 1. When a subject is lighted by many kinds of light. 2. When you use a special lamp, such as a sodium lamp or mercury vapor lamp. How to use: 1.
- Page 10 2. FLON switch (FLICKERLESS ON / OFF) This is only used in JAPAN. When the DIP switch on the rear panel is set to ON, the shutter speed is fixed at a rate of 1/100 (120) (sec). 3. BLC (backlight compensation) ON/OFF switch If the subject you wish to view is too dim because of a bright background, set the BLC switch to ON to compensate for the bright background.
- Page 11 Cautions: 1. Under bright lighting conditions such as outdoors, use an autoiris lens because the ELC control range is not wide enough under these conditions. 2. Under certain unique lighting conditions, the following phenomena may appear: Strong smear and/or blooming on high-light objects such as spotlights or windows. Noticeable flicker in the picture and/or color rendition variations.
-
Page 12: Shipping Instructions
Shipping Instructions Use the following procedure when returning a unit to the factory: 1. Call or write Vicon for a Return Authorization (R.A.) at one of the locations listed below. Record the name of the Vicon employee who issued the R.A. -
Page 13: Technical Information
Technical Information VC455C- VC465C- MODEL VC455-DSP VC465-DSP 1/3”interline transfer CCD IMAGE DEVICE 510(H) * 492(V) 768(H) * 494(V) 500(H) * 582(V) 752(H) * 582(V) TV SYSTEM NTSC standard, 2:1 interlace PAL standard, 2:1 interlace SYNCHRONIZING SYSTEM Line Lock / Internal... - Page 14 DIMENSIONS...
-
Page 15: Examples Of Connections
EXAMPLES OF CONNECTIONS 1. Simplest: one monitor system with one camera CAMERA VIDEO COAXIAL CABLE AC-24V INPUT... - Page 16 EXAMPLES OF CONNECTIONS - continued 2. One monitor system with two or more cameras CAMERA VIDEO COAXIAL CABLE VIDEO COAXIAL CABLE AC-24V INPUT CAMERA SEQUENTIAL VIDEO COAXIAL CABLE SWITCHER QUAD SPLITTER AC-24V INPUT...
- Page 17 Vicon Industries Inc. Corporate Headquarters 89 Arkay Drive Hauppauge, New York 11788 631-952-CCTV (2288) 800-645-9116 Fax: 631-951-CCTV (2288) Vicon Europe Headquarters Brunel Way Fareham, PO15 5TX United Kingdom +44 (0) 1489 566300 Fax: +44 (0) 1489 566322 Brussels Office Planet II - Unit E...
