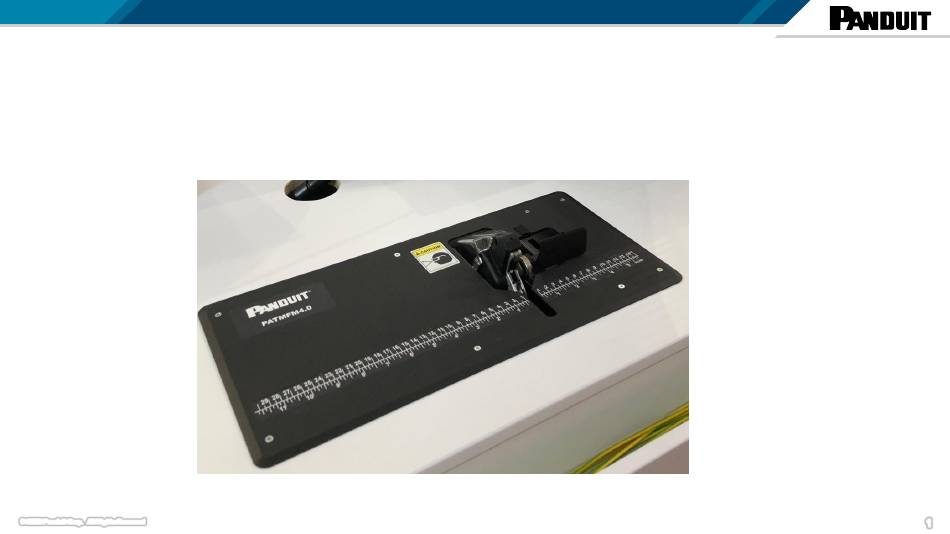

- Page 1 PATMFM4.0 Flushmount Fixture Accessory for PAT 4.0 Quick Setup Guide © 2020 Panduit Corp. All Rights Reserved...
- Page 2 Square the Template to the Worksurface, and tape corners to hold in place d. Using the Template as guide, drill the (8) pilot holes and cut the square opening e. Remove Template when Worksurface modification is complete © 2020 Panduit Corp. All Rights Reserved...
- Page 3 Fixture Plate will align with the 8 pilot holes from Step 1) TIP: On the underside of the Fixture is a communications wire that runs along the opening. Be sure not to pinch the wire between the Fixture Plate and Worksurface. © 2020 Panduit Corp. All Rights Reserved...
- Page 4 Secure the PAT4.0 Tool Head to the Tool Cage a. Remove the clamping c. Reattach the clamping piece (unfasten the thumb piece and hand-tighten the screws) thumb screws b. Place the PAT4.0 Tool Head in the housing © 2020 Panduit Corp. All Rights Reserved...
- Page 5 Step 3 (continued): When the Tool Head is secured properly to the Tool Cage, the underside d. Attach the tip collector will look like this: chute to the PAT4.0 Tool Head © 2020 Panduit Corp. All Rights Reserved...
- Page 6 Fixture, the approach is from the underside of the Fixture to align as shown Underside View Tool Cage posts will traverse along the guided- slots until Tool Cage is secured to the Fixture © 2020 Panduit Corp. All Rights Reserved...
- Page 7 TIP: before pushing the air line in, pull away on the orange locking mechanism; for future removal, push down on orange while simultaneously pulling away on the air line © 2020 Panduit Corp. All Rights Reserved...
- Page 8 Connect one end of the EI cable to the back of the PDM4.0; tighten the screws with Phillips head screw driver to secure the EI cable connection c. Connect the other end of the EI cable to the EI block on the Fixture; secure Underside View © 2020 Panduit Corp. All Rights Reserved...
- Page 9 Step 7: Connect the Air c. Re-attach to PDM4.0 a. Detach air line from b. Attach to T-connector PDM4.0 supplied with PATMFM4.0 © 2020 Panduit Corp. All Rights Reserved...
- Page 10 Step 7 (continued): d. Attach other end of air supply to air nozzle on EI block on Fixture Underside View © 2020 Panduit Corp. All Rights Reserved...
- Page 11 After re-attaching the hose to the PAT4.0 Tool Head housed in the Tool Cage underneath the Fixture, go ahead and power up the PAT4.0 System. The PATMFM4.0 Flushmount is now ready to be used!! © 2020 Panduit Corp. All Rights Reserved...
