Panduit PZWIFICB Instructions

© Panduit Corp. 2006
Refer to the installation and configuration guidelines provided by the manufacturer of the wireless
access point to determine the optimum enclosure installation location and antenna configuration.
Please read these instructions in their entirety prior to installing the enclosure.

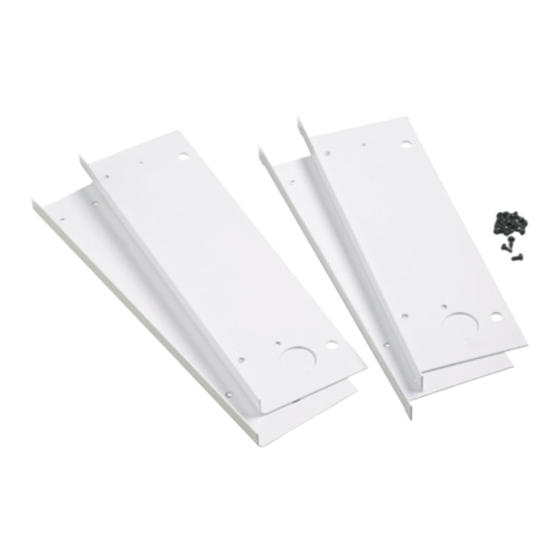

PANDUIT Part #: PZWIFICB - P
Point In Ceiling Bracket Kit
See Step 2 & 4 for installation instructions
PANDUIT Part #: PZWIFIDCB - P
Access Point In Ceiling Bracket Kit
See Step 2-3 for installation instructions

Step 1: Knockout Removal

1.1 Remove knockouts in desired cable entry location:
For Conduit - Remove knockout "A", "B" or "C". This double
knockout accommodates either 1/2" or 3/4" conduit.
Without Conduit - Remove knockout "A" or "B". Remove the
1/2" diameter opening.
FOR TECHNICAL SUPPORT www.panduit.com/resources/install_maintain.asp
P Z
AN
Part Numbers:PZWIFICB,PZWIFIDCB,PZW2X2CB,PZW2X2DCB
INSTRUCTIONS CM316B
Z Wireless Access
AN ONE
Z Wireless
AN ONE
Page 1 of 4
Wireless Access Point In Ceiling
ONE
Brackets
PANDUIT Part #: PZW2X2CB - P
In Ceiling 2'x 2' Bracket Kit
See Step 4 for installation instructions
PANDUIT Part #: PZW2X2DCB - P
Point In Ceiling 2'x 2' Bracket Kit
See Step 4 for installation instructions
1
C
E
Z Wireless Access Point
AN ONE
Z Wireless Access
AN ONE
D
A
B
