© Panduit Corp. 2023
NOTE: Some views in this document may vary slightly from your actual cabinet configuration. Components missing
from some views for clarity purposes.

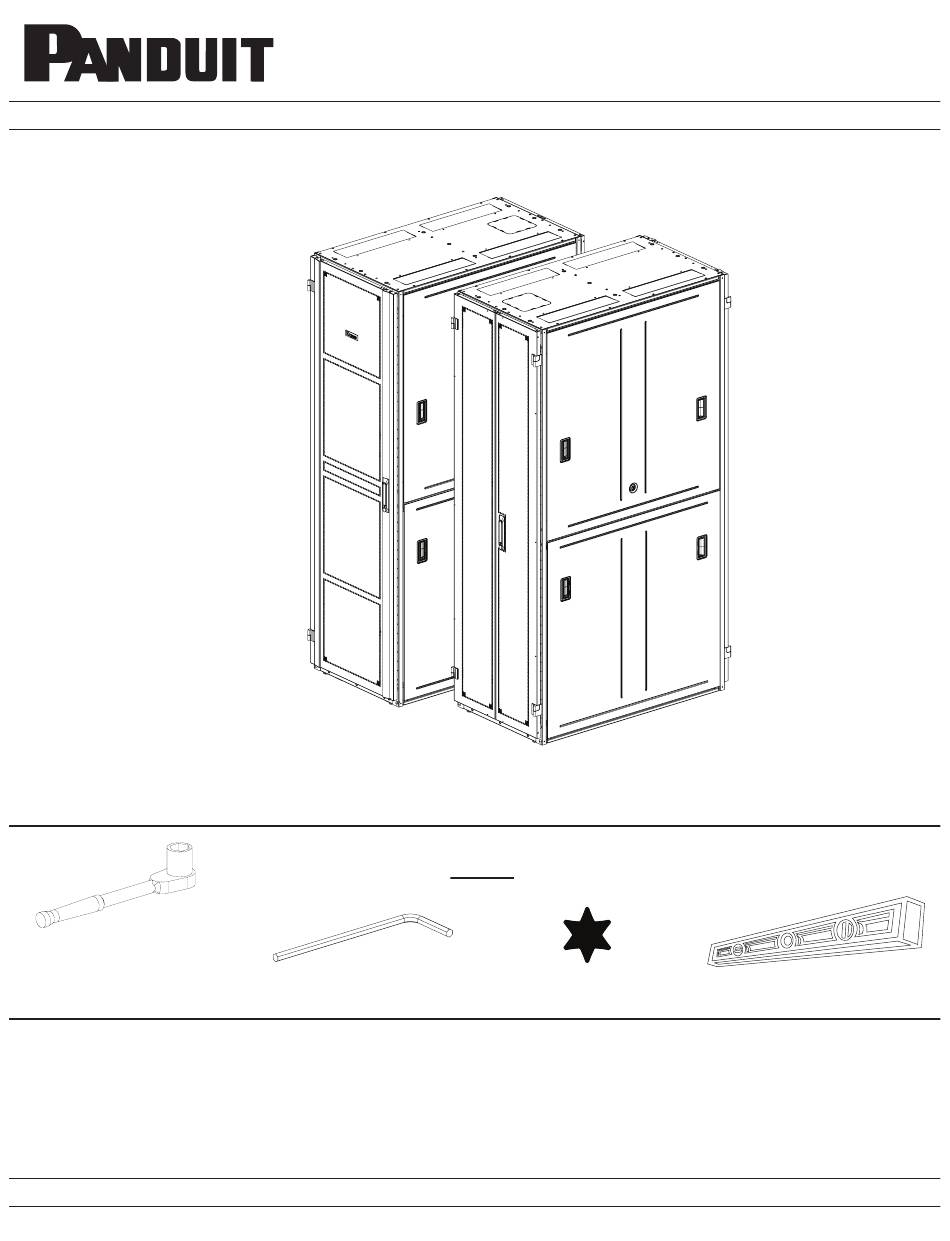

Front of Cabinet
13mm Socket
Wrench
15mm Socket
Wrench
Disclaimer:
The information contained in this manual is intended as a guide for use by persons having technical skill at
their own discretion and risk. The recommended practices are based on average conditions. Panduit makes
no representation or warranty, express or implied, nor assumes any responsibility for the accuracy or
completeness of these installation instructions. Panduit does not guarantee any favorable results nor assume
any liability for damages, improper installation, system failures, or any other problems that could arise in
connection with the use of these installation instructions.
INSTALLATION INSTRUCTIONS
Back of Cabinet
6mm Hex Key
For Technical Support: www.panduit.com/resources/install_maintain.asp
FlexFusion XGL Server Cabinet
Part Number(s) : XGL6****B, XGL6****W, XGL8****B, XGL8****W
FlexFusion Cabinets
Tool List
T25 Torx driver
Page 1 of 15
V00029WU
122mm (48") Level
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Panduit FlexFusion XGL Series
Summary of Contents for Panduit FlexFusion XGL Series
- Page 1 The information contained in this manual is intended as a guide for use by persons having technical skill at their own discretion and risk. The recommended practices are based on average conditions. Panduit makes no representation or warranty, express or implied, nor assumes any responsibility for the accuracy or completeness of these installation instructions.
- Page 2 INSTALLATION INSTRUCTIONS V00029WU © Panduit Corp. 2023 IMPORTANT SAFETY INFORMATION WARNING CABINET TIPPING HAZARD This cabinet can easily be tipped. Use extreme caution when unpacking or moving the cabinet. Use at least [2] persons to remove cabinet from pallet and move cabinet into position (refer to page 5).
-
Page 3: Table Of Contents
INSTALLATION INSTRUCTIONS V00029WU © Panduit Corp. 2023 Table of Contents Packaging Material Removal ....................4 Leveling ..........................5 Floor Mounting ........................6 Ganging Multiple Cabinets Together ................. 7 Grounding ..........................8 Integral Grounding ......................8 Equipment Rail Spacing Adjustment ................. 9 Top Cap .......................... -
Page 4: Packaging Material Removal
INSTALLATION INSTRUCTIONS V00029WU © Panduit Corp. 2023 Packaging Material Removal • Remove all stretch wrap, protective cardboard, and plastic bag from outside of cabinet. • Remove [4] Hold Down Brackets at front and rear of cabinet. Use at least [2] persons to carefully remove cabinet from pallet. -
Page 5: Leveling
INSTALLATION INSTRUCTIONS V00029WU © Panduit Corp. 2023 Leveling • Ensure that (4) Leveling Legs are fully retracted. • Move Cabinet into final position. • Lower the (4) Leveling Legs until the cabinet weight is fully supported by only the leveling legs. -
Page 6: Floor Mounting
INSTALLATION INSTRUCTIONS V00029WU © Panduit Corp. 2023 WARNING Cabinet Tipping Hazard Mount cabinet to floor before equipment is installed in cabinet. FAILURE TO FOLLOW THESE INSTRUCTIONS CAN LEAD TO SERIOUS INJURY, DEATH, OR DAMAGE TO YOUR EQUIPMENT. Floor Mounting •... -
Page 7: Ganging Multiple Cabinets Together
Use Ganging Brackets to cinch cabinets together IMPORTANT: If you are planning to use Panduit Day 2 side panel instead of the side panels included with the cabinet, a 3mm gap between adjacent cabinets is required. Ganging bracket can accomodate a 3mm gap between cabinets. -
Page 8: Grounding
INSTALLATION INSTRUCTIONS V00029WU © Panduit Corp. 2023 DANGER Electrical Shock Hazard Each cabinet must be connected to the Common Bonding Network (CBN). FAILURE TO FOLLOW THESE INSTRUCTIONS CAN LEAD TO SERIOUS INJURY, DEATH, OR DAMAGE TO YOUR EQUIPMENT. Grounding •... -
Page 9: Equipment Rail Spacing Adjustment
INSTALLATION INSTRUCTIONS V00029WU © Panduit Corp. 2023 WARNING Falling Equipment Hazard Remove all equipment installed onto equipment rails before performing any adjustments to equipment rail spacing. FAILURE TO FOLLOW THESE INSTRUCTIONS CAN LEAD TO SERIOUS INJURY, DEATH, OR DAMAGE TO YOUR EQUIPMENT. -
Page 10: Top Cap
Cut [8] tabs with wire cutter to open large cable openings – OPTIONAL • PANDUIT COOLBOOT® products can be used to seal around optional knockouts to prevent hot air recirculation Brush Seals All cabinets regardless of width and length have (4) 91mm [3.6”] x 398mm [15.7”] openings. -
Page 11: Single Hinge Door (Removal And Installation)
INSTALLATION INSTRUCTIONS V00029WU © Panduit Corp. 2023 Single Hinge Door (Removal and Installation) • Open Door to approximately 90°. • Lift Door off of hinges and pull away from Cabinet frame. • Reverse Steps to install Single Hinge Door. •... -
Page 12: Split Doors (Removal And Installation)
INSTALLATION INSTRUCTIONS V00029WU © Panduit Corp. 2023 Split Doors (Removal and Installation) • Open Split Doors to approximately 90°. • Lift Doors off of hinges and pull away from Cabinet frame. • Reverse Steps to install Split Doors. Note: Align Top pins first. -
Page 13: Side Panels Removal
INSTALLATION INSTRUCTIONS V00029WU © Panduit Corp. 2023 Side Panels Removal • Upper Panel must be removed before removing Lower Panel. • Unlock Upper Side Panel and lift UP. • Swing the bottom of the Upper Side Panel out to release from cabinet. -
Page 14: Side Panels (Removal And Installation)
INSTALLATION INSTRUCTIONS V00029WU © Panduit Corp. 2023 Side Panels (Removal and Installation) • Lift up on the Lower Side Panel and pull away from cabinet using two handles. Reverse Steps to install Side Panels. • Bottom flange Lower Side Panel... -
Page 15: Pdu Bracket Adjustment (Removal And Installation)
INSTALLATION INSTRUCTIONS V00029WU © Panduit Corp. 2023 PDU Bracket Adjustment (Removal and Installation) • PDU Brackets are height adjustable if PDU spacing other than factory position is desired. • Reverse Steps 1 through 3 when re-positioning PDU Brackets at desired positions.
