© Panduit Corp. 2013

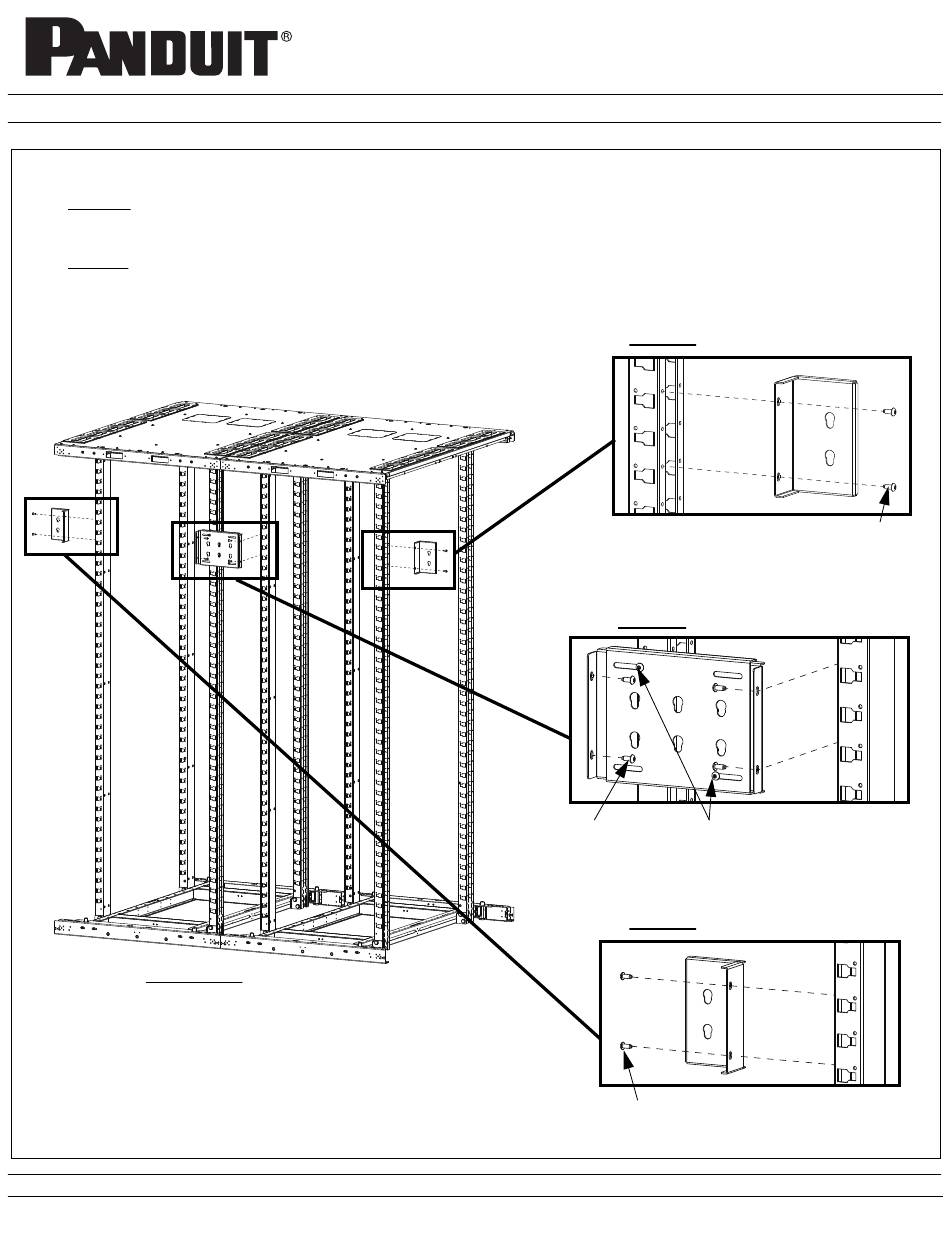

Install Slack Spool Brackets
NACSS
•
- Locate mounting position for Center Bracket Assembly. Loosen adjusting screws on
bracket and adjust bracket width to allow for tight fit between [2] ganged cabinets and tighten adjusting
screws, if necessary. Secure Center Bracket Assembly to cabinet posts with [4] M5 Torx screws.
NERSS
•
- Locate mounting positions for Left and Right End of Row Brackets. Secure Left and Right
End of Row Brackets to cabinet posts with [2] M5 Torx screws per bracket.
Front of Cabinet
FOR TECHNICAL SUPPORT www.panduit.com/resources/install_maintain.asp
N
-A

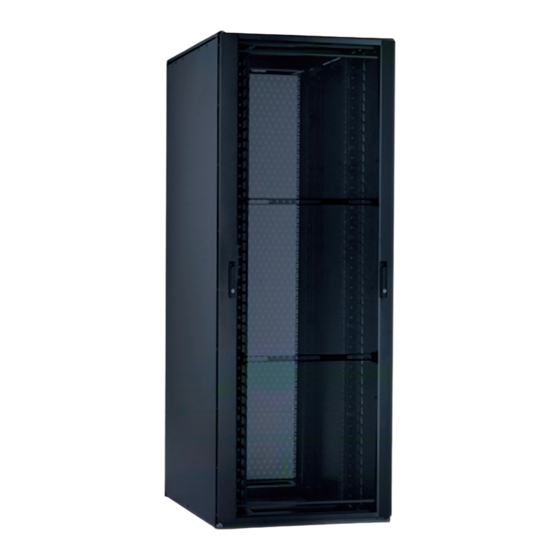

N-Type Switch Cabinets
ET
CCESS
(NACSS, NERSS Slack Spool Kits)
INSTRUCTIONS CM665
Page 1 of 2
NERSS
- Right Slack Spool Bracket
NACSS
- Center Slack Spool Bracket
[2] M5 Torx Screws
[2] M5 Adjustment Screws
(use T25 Torx bit)
(use T25 Torx bit)
NERSS
- Left Slack Spool Bracket
[2] M5 Torx Screws
(use T25 Torx bit)
[2] M5 Torx Screws
(use T25 Torx bit)
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Panduit NET-ACCESS NACSS
Summary of Contents for Panduit NET-ACCESS NACSS
- Page 1 N-Type Switch Cabinets CCESS (NACSS, NERSS Slack Spool Kits) INSTRUCTIONS CM665 © Panduit Corp. 2013 Install Slack Spool Brackets NACSS • - Locate mounting position for Center Bracket Assembly. Loosen adjusting screws on bracket and adjust bracket width to allow for tight fit between [2] ganged cabinets and tighten adjusting screws, if necessary.
- Page 2 Align Slack Spool mounting tabs with keyholes of Slack Spool Bracket(s) Push downward until Slack Spool clicks into place For Instructions in Local Languages E-mail: and Technical Support: techsupport@panduit.com Phone: www.panduit.com/resources/install_maintain.asp 866-405-6654 www.panduit.com Page 2 of 2...
