Panduit NetFrame NFR84 Instructions

© Panduit Corp. 2010

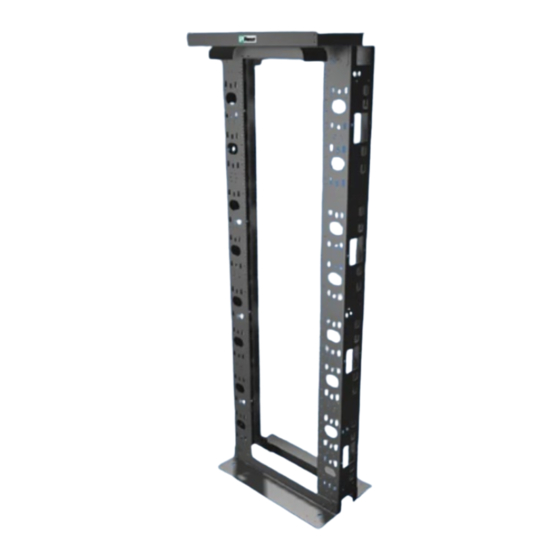

NFR84
Modular N F Rack
ET RAME
(2) Vertical Channels
(2) Base Angles
(1) Pack of (20) 3/8x1.00
Bolt, Lockwasher, Nut
(1) Front Top Flange
(1) Rear Top Flange
(2) Center Waterfalls
(1) Pack of (25) #12-24x1/2" Screws
(1) Grounding and Hardware Kit

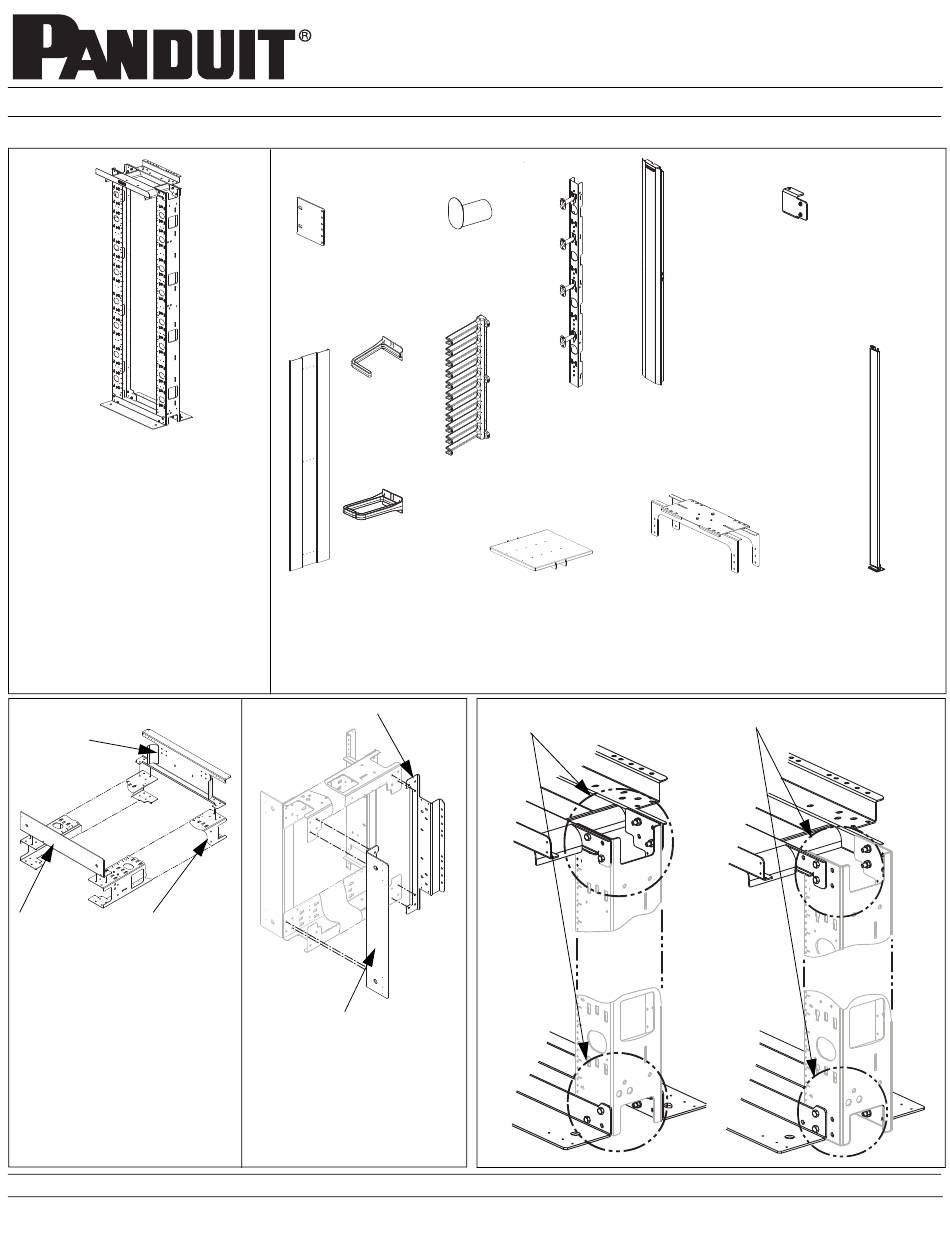

Rack Assembly
Front Top
Flange
Base Angle Vertical
Channel
Step1
Lay the two vertical channels
on the floor or a pair of sturdy
saw horses to ease installa-
tion.
Install (1) Base Angle and
Front Top Flange on the verti-
cal channels using (8) 3/8"
bolts, lockwashers and nuts
provided. Do not tighten.
FOR TECHNICAL SUPPORT www.panduit.com/resources/install_maintain.asp
Modular N
Part Numbers: NFR84, NFD484, NFSK, NFDR4X6K, NFCDRK, NFVSM4, NFEDB23,
NFSHLF19X18, NFSHLF19X25, NFLRB, NFEP, NFD884, NFD1284, NFREB2, NFBRFK
INSTRUCTIONS CM281G
Optional Accessories
(1) Spool
(2) Rear Extender
(2)#12-24 Screws
Bracket
NFSK
(8) #12-24 Screws
NFREB2
(16) Center
D-rings
NFCDRK
(8) Bend Radius Fingers
NFBRFK
(8) D-rings
NFDR4X6K
(1) End Panel
(6)3/8"-16x1.625" Hex Bolts
3/8"-16 Hex Nuts
3/8" Split Lockwashers
NFEP
Rear Top Flange
Base Angle
Step 2
Roll the rack on its side to install
the other base angle and rear
top flange using (8) 3/8" bolts,
lockwashers and nuts provided.
Do not tighten.
F ™ Rack and Accessories
ET RAME
(1) Center
(1) Vertical
Door, with
Slack Manager
NFVSM4 brackets
NFD884
NFD1284
(1) Shelf
(4) #12-24 Screws
NFSHLF19x18
NFSHLF19x25
(shown)
19" Mounting
Page 1 of 4
(1) N F
ET RAME
Door Brackets for
23" Mtg
(4) #10-32 Screws
NFEDB23
(1) Ladder Rack
(1) Door, 4" wide w/
Bracket
Mtg Brackets
(2)3/8"-16x1" Hex Bolts
(4) #10-32 Screws
3/8"-16 Hex Nuts
NFD484
3/8" Split Lockwasher
NFLRB
23" Mounting
Extender
