Front of
Cabinet
M5x0.8 x 10mm
Pan Head Torx Screw
Qty: 10
For Technical Support: www.panduit.com/resources/install_maintain.asp
Installed
Can be installed in
Front or Rear of Cabinet
E-Rail Center Monting Brackets
Qty: 1 Left & 1 Right
Page 1 of 4

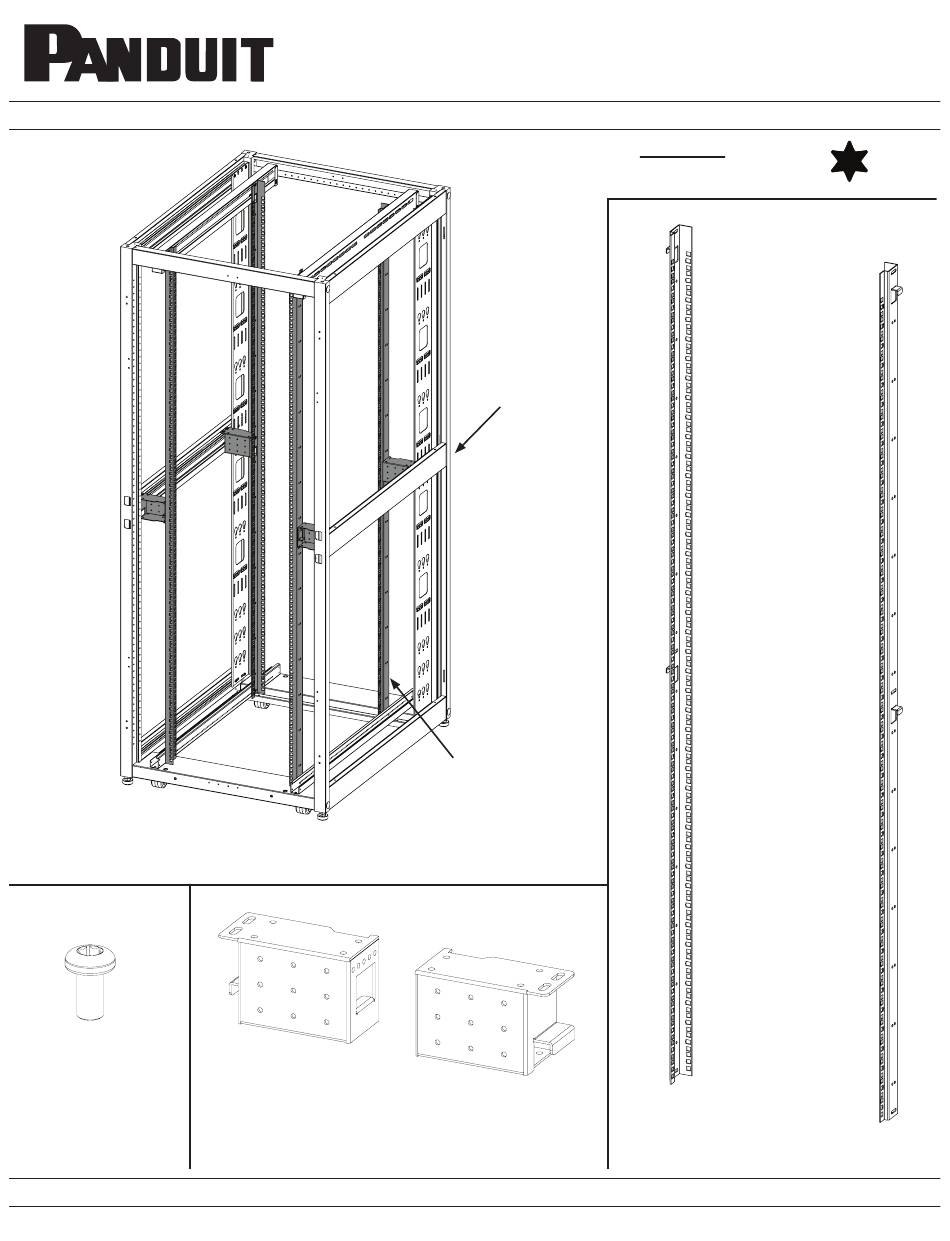

Net-Verse D-Type E-Rails
Part Number(s) : D2ER* & D5ER*
Tool List:
•
Net-Verse
D-Type
Cabinet
D*ER*
T25 Torx driver
E-Rails
Qty: 1 Left & 1 Right
V00029LF
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Panduit Net-Verse D Series
Summary of Contents for Panduit Net-Verse D Series
- Page 1 Net-Verse D-Type E-Rails Part Number(s) : D2ER* & D5ER* INSTALLATION INSTRUCTIONS © Panduit Corp. 2016 V00029LF Tool List: • T25 Torx driver Net-Verse D-Type Cabinet D*ER* Installed Can be installed in Front of Front or Rear of Cabinet Cabinet M5x0.8 x 10mm...
- Page 2 INSTALLATION INSTRUCTIONS © Panduit Corp. 2016 V00029LF Install E-Rails on 600mm wide Cabinets • Attach hooks on top and middle of E-Rails into grooves in the Cabinet frame • Adjust the E-Rails to desired position and secure with M5 screws to 2.7 ± 0.3 N·m [23.9 ± 2.7 in-lbs].
- Page 3 INSTALLATION INSTRUCTIONS © Panduit Corp. 2016 V00029LF Install E-Rails on 800mm wide Cabinets • Attach the E-Rail Center Mounting Brackets to the E-Rails with a 3.0mm offset for 800mm Wide Cabinets. Attach with (1) M5 screw tightened to 2.7 ± 0.3 N·m [23.9 ± 2.7 in-lbs] per E-Rail.
-
Page 4: Installation Instructions
INSTALLATION INSTRUCTIONS © Panduit Corp. 2016 V00029LF TOP AND BOTTOM (2) M5 Button Head Screw (use T25 Torx bit) Install M5 Button Head Screws to 2.7 ± 0.3 N·m [23.9 ± 2.7 in-lbs] MIDDLE (2) M5 Button Head Screw (use T25 Torx bit) Install M5 Button Head Screws to 2.7 ±...
