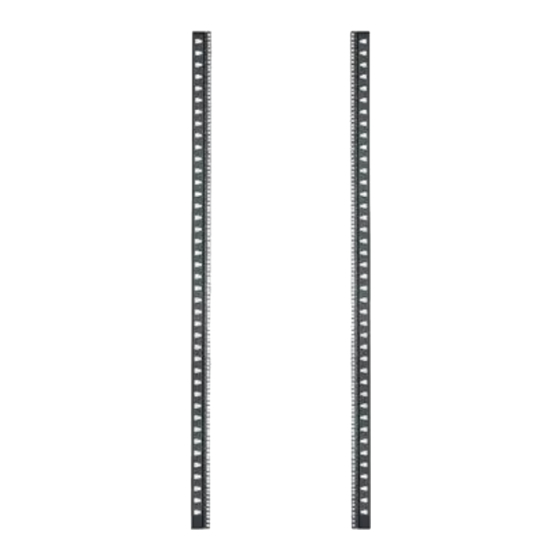

Equipment Rail Installation
•

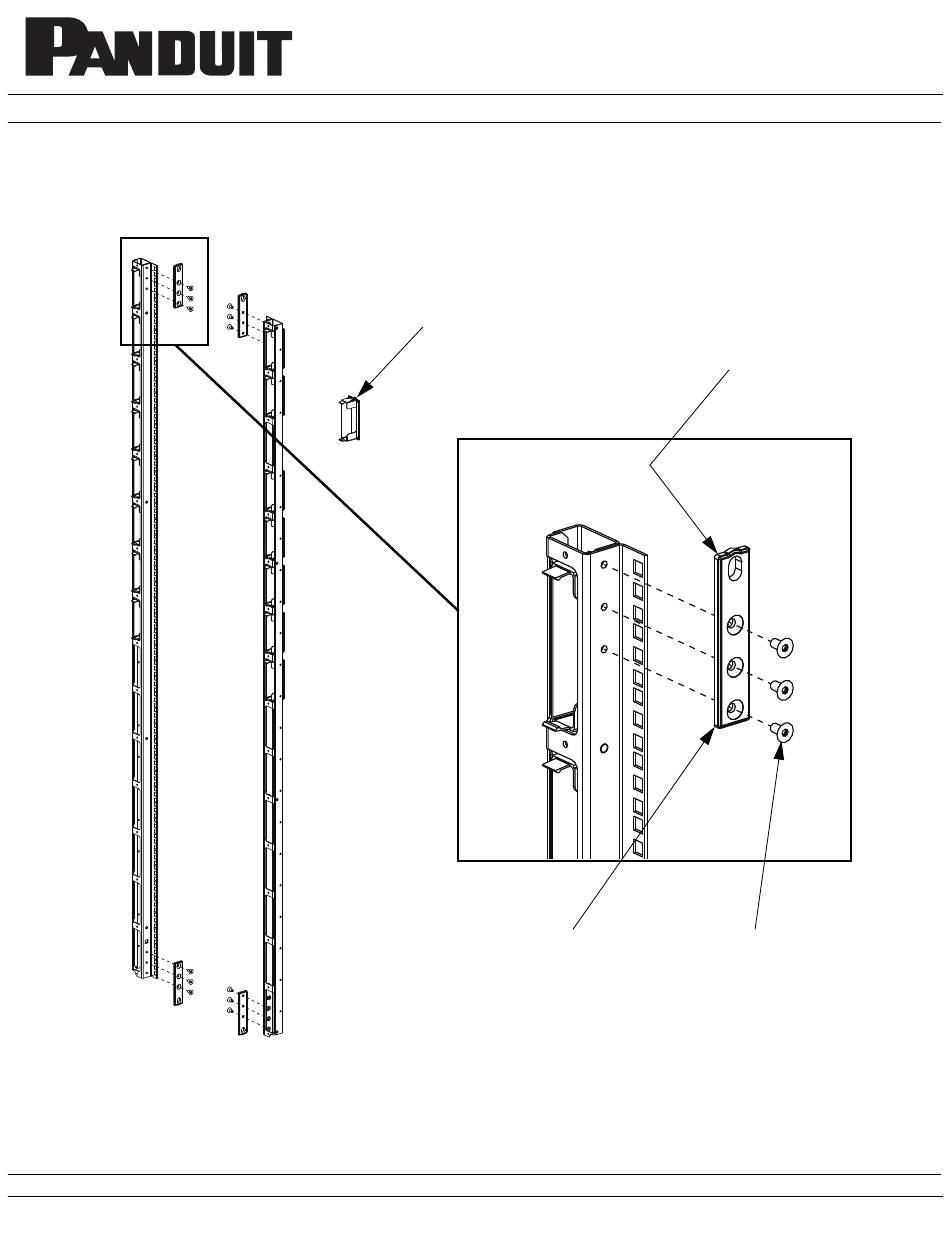

Install [4] Equipment Rail Mounting Brackets to Equipment Rails with [3] Counter-sunk Torx screws per bracket (use T25 Torx bit)
•
Ensure that counter-sinks of brackets are oriented to match heads of counter-sunk screws
FOR TECHNICAL SUPPORT www.panduit.com/resources/install_maintain.asp
N
-A
S-Type Server Cabinets
ET
CCESS
(S2RP, S5RP, S8RP, Adjustable Cage Nut Equipment Rails)
Insert Patching Adapters
(snap into equipment rails)
Ensure that counter-sinks
of bracket match screw
Page 1 of 2
INSTRUCTIONS V00029DP
Equipment Rail
Mounting Bracket
[3] Counter-sunk Torx Screws
(use T25 Torx bit)
